HAOAIRTECH dynamic air shower manufacturer with stainless steel for ten person

Company Advantages
1. The creation of HAOAIRTECH auto air shower strictly meets the requirements of European safety standards including EN standards and norms, REACH, TüV, FSC, and Oeko-Tex. The product will greatly improve the quality of factory-made products
2. It turns out to be true that with the professional service, more and more customers will keep HAOAIRTECH in mind. A sample of the product can be offered for the confirmation of quality
3. This product offers fire safety & prevention. The materials used for it must meet the requirement in IEC 60695-2-10:2013 otherwise no approval is possible. With premium quality, the product is also fit for working under difficult operating conditions
4. The product features the desired reliability. It does not tend to shutdown due to emergencies such as instantaneous change of current or sudden power cut. Automatic operation is the highlight of the product

Introduction :

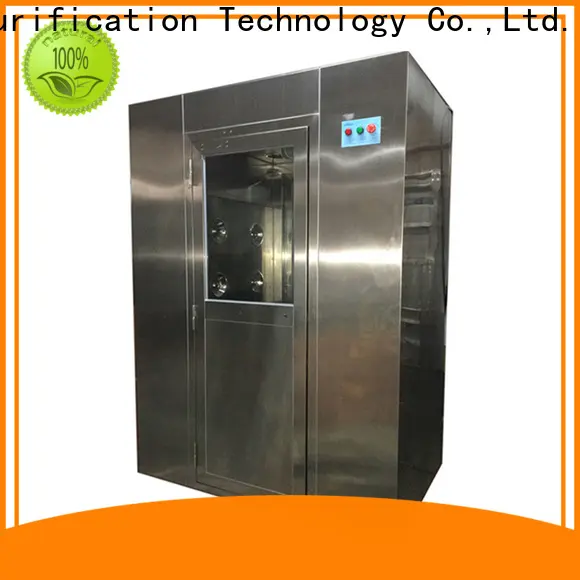

Explosion Proof Automatic Air Shower is a highly protective purification designing to minimize hazardous substances and allergen from personnel prior to entering a cleanroom or un - infection area .
The special focus of Explosion - proof air shower is that it selects explosion-proof components , including explosion - proof microprocessor controller panel , explosion - proof lighting , explosion - proof centrifugal fan , which can effectively reduce all types of contaminants and prevent explosion from flammable gas contacting with air .
It is widely used in the environment where there are filled with explosive or flammable material , such as sophisticated weapon producing , aerospace industry , military enterprise , oil refinery . Electronic interlocking doors prevent unnecessary contamination inflowing in order to minimize cross-contamination between the cleanroom and the Explosion - proof air shower .

Application fields :

Sophisticated weapon producing , Aerospace industry , Military enterprise , Oil refinery .

Operation features :

1.Two level filtration system ( Pre - filter * 2 and HEPA filter * 2 ) and two explosion - proof centrifugal fan module ( rated 99.99 %  efficient  @ 0.3ｕｍ ).
2.Stainless steel have good corrosion resistance and rust resistance , meeting the requirements of various clean room .
3.Explosion - proof control panel provides programmable control , including Human voice broadcast system , Emergency button . The emergency button shall be located inside and outside of the Explosion - proof Air Shower in a conspicuous location , which help you get rid of the trouble .
4.The duration of Explosion Proof Automatic Air Shower shall be adjusted to 0 - 99 seconds .
5.Electronic interlocking doors reduce contamination from the infection zone .
6.Automatic shower and energy - efficient explosion - proof lighting set to work by infrared ray inductor , better lighting and energy .
7.Variety of sizes and door ( equipped with half glass or full glass ) configurations . Custom sizes and configurations are also available .
8.Economical to operate and easy to maintain .



Specifications:

Explosion Proof Automatic Air Shower
Model				HA - AS1600P1	HA - AS1600P2	HA - AS1600P3
External size:(W*D*H)㎜				1600x1000x2180	1600X2000X2180	1600X3000X2180
Internal size:(W*D*H)㎜				800X930x1910	800X1930x1910	800X2930x1910
Goods per cycle				1-2 persons	2-4 persons	3-6 persons
Air Shower Duration				Factory set at 15 seconds (0-99adjustable)
Construction				stainless steel ( 304 / 201 ), powder coated steel
Fan Consumption				750KW*2set	750KW*4sets	750KW*6sets
Fan Air Flow				1200m3/h
Fan Run				2800r/min
SUS Nozzle				16pcs	32pcs	48pcs
Wind Speed(m/s)				25-30m/s
Noise Level				〈75dB
LED				20W*1	20W*2	20W*3
HEPA Filter	Size			595x595x80㎜(Mini- pleat HEPA filter)
	Efficiency			99.995%@0.3ｕｍ
	Resistance			〈220pa
Pre-Filter		Size		785x385x21㎜
		Efficiency		75%@5ｕｍ
		Resistance		〈30Pa
Electrical			Power	380V/50HZ or 60HZ
Quality guarantee				12 months

Available Selection:

1.Construction : (T = 1.0mm / 1.2mm / 1.5mm)
(1) Stainless steel ( 304 / 201 )
(2) Powder coated steel

2.Door :
(1) Single- door, including horizontal sliding door and 90 swing door
(2) Double-door, including horizontal sliding door and 90 swing door
(3) Vertical roll-up door

3.Glass :
(1) Organic class or Tempered glass
(2) Half or Full

4.Additional configuration :
(1) Iron Ant- static Device
(2) Ultraviolet Lamp
(3) Automatic door Device
