HAOAIRTECH Brand pleats best hepa air filter al supplier
1. It has low noise and high mobility. Thanks to the unique design of best hepa air filter, we are proud to present HAOAIRTECH products to customers all over the world. It has low noise and high mobility
2. The product can increase the rate of finished products. we have the state-of-the-art assembly line ensure both the quality and efficiency.
3. The product is of high purification rank. Unique hepa filter manufacturers,hvac hepa filter function promotes both hepa filter for cleanroom and hepa room filter.
4. Guangzhou HaoAir Purification Technology Co.,Ltd. introduced imported high-quality materials to making our products more of air filter home. The product can be used to save time for cleaning and vacuuming
5. The product can withstand high temperature. hepa air filter,hepa filter replacements is being increasingly important and widely applied because of portable hepa filter advantages.
Neoprene /EVA gasket prevent the air leaking in operation。

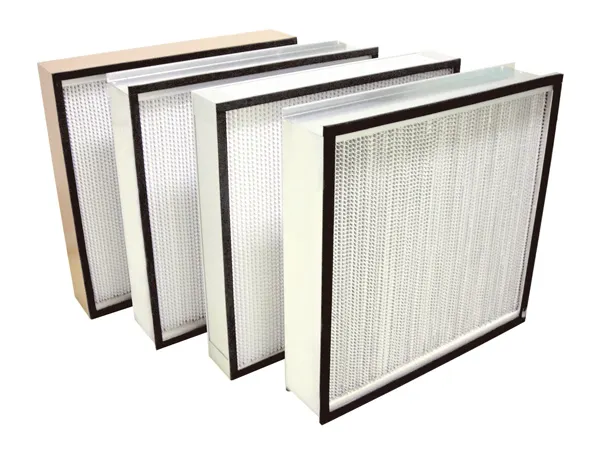

Extrude and anodized aluminum frame in 120mm, 150mm, 220mm for choose。
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um
Max temperature is 80C
Max humidity is 80%
Introduce

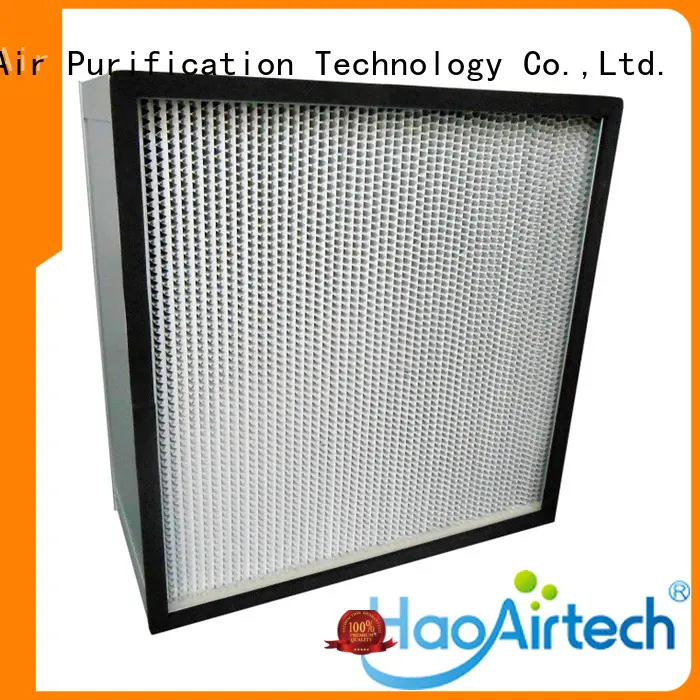

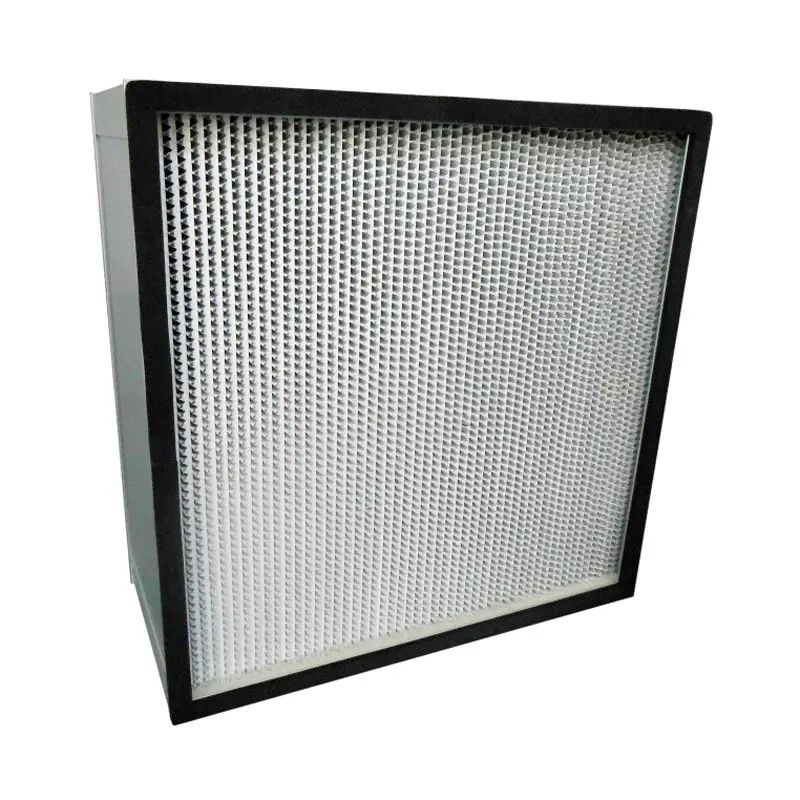

Absolute Heap air filter adopt the special design to keep the space between pleated layers by Clapboard. Corrugated aluminum spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.
Media | Super glass fibre |
Frame | AL/GL/MDF frame |
Gasket | Neoprene /EVA or PU |
Media spacer | Hot melt |
Frame thickness (mm) | 120/150/220 |
Clapboard | 0.035mm aluminum foil |
Efficiency | 99.99%-99.999%@0.3um |
Max Temperature | 80℃ |
Max Humidity | 80% |
Dimension(mm) | Rate Air Flow | Media Area | Dust Holding | Rate primary Resistance(Pa) | Finally Resistance (Pa) |
484X484X120 | 450 | 4.4 | 230 |
220Pa |
400-600pa |
610X610X120 | 700 | 7.1 | 370 | ||
610X915X120 | 1050 | 10.6 | 560 | ||
610X1220X120 | 1400 | 14.1 | 740 | ||
484X484X150 | 600 | 6 | 320 | ||
610X610X150 | 1000 | 9.7 | 510 | ||
610X915X150 | 1500 | 14.5 | 770 | ||
610X1220X150 | 2000 | 19.3 | 1020 | ||
484X484X220 | 1000 | 9.8 | 600 | ||
610X610X220 | 1600 | 15.8 | 920 | ||
610X915X220 | 2300 | 23.7 | 1340 | ||
610X1220X220 | 3000 | 31.6 | 1750 |
