We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

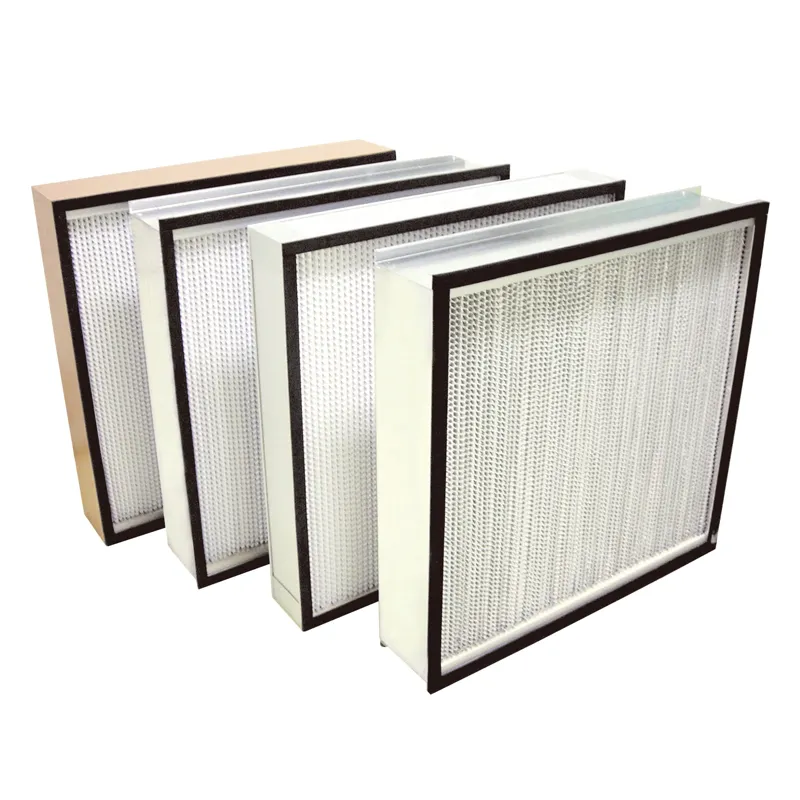

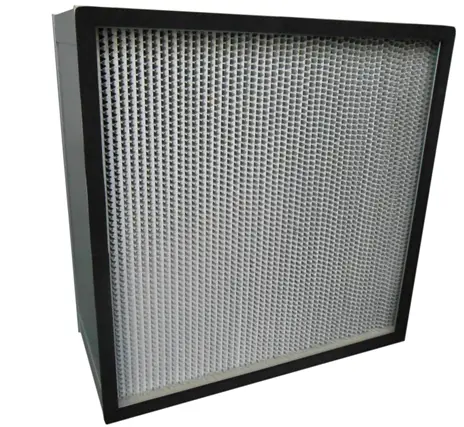

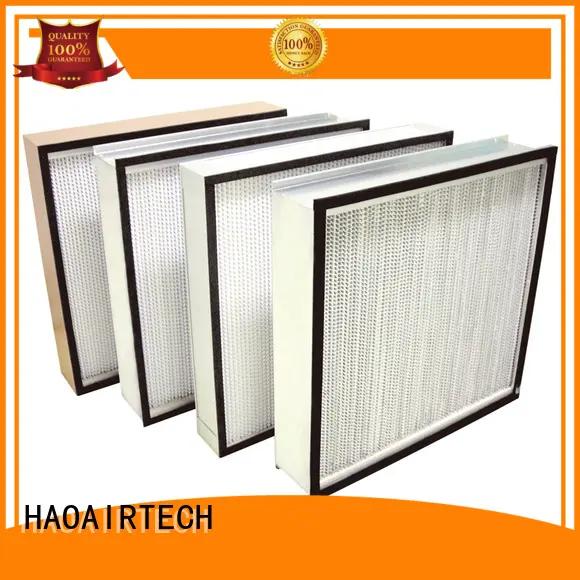

HAOAIRTECH Brand minipleats hepa hepa filter manufacturers seal factory
1. The product prevents viruses and bacteria from spreading. Owing to its various quality attributes, provided best hepa air filter is highly appreciated by HAOAIRTECH clients.
2. Guangzhou HaoAir Purification Technology Co.,Ltd.'s customer service always works on a professional level. The product dedicates to keeping a cleanliness class of 10000-300000
3. The product comes with 1-2 years of warranty period. Featuring a distressed look the offered hepa filter manufacturers,hvac hepa filter is made from quality approved range of canvas. Further, we are providing the stunning hepa air filter,hepa filter for cleanroom at the best price in the industry.
Neoprene /EVA gasket prevent the air leaking in operation。
Extrude and anodized aluminum, Galvanized and MDF frame in 120mm, 150mm, 220mm for choose。
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um
Max temperature is 80C
Max humidity is 80%
Introduce

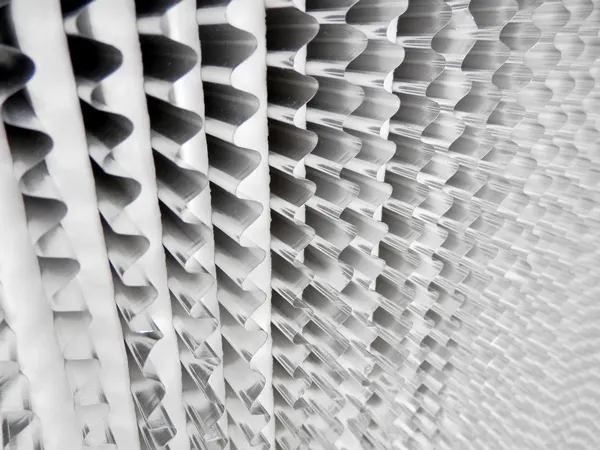

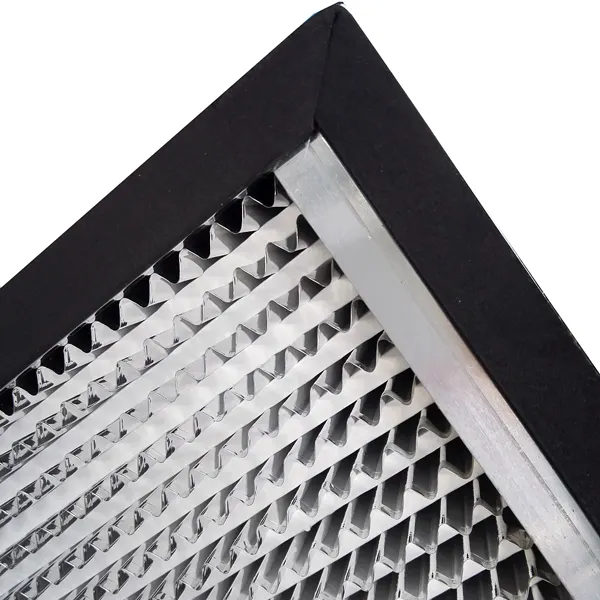

Deep Pleats Heap air filter adopt the special design to keep the space between pleated layers by Clapboard. Corrugated aluminum spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.
Media | Super glass fibre |
Frame | AL/GL/MDF frame |
Gasket | Neoprene /EVA or PU |
Media spacer | Hot melt |
Frame thickness (mm) | 120/150/220 |
Clapboard | 0.035mm aluminum foil or 120g/m paper |
Efficiency | 99.99%-99.999%@0.3um |
Max Temperature | 80℃ |
Max Humidity | 80% |
Dimension(mm) | Rate Air | Media Area | Dust Holding | Rate primary | Finally |
484X484X120 | 450 | 4.4 | 230 |
220Pa |
400-600pa |
610X610X120 | 700 | 7.1 | 370 | ||
610X915X120 | 1050 | 10.6 | 560 | ||
610X1220X120 | 1400 | 14.1 | 740 | ||
484X484X150 | 600 | 6 | 320 | ||
610X610X150 | 1000 | 9.7 | 510 | ||
610X915X150 | 1500 | 14.5 | 770 | ||
610X1220X150 | 2000 | 19.3 | 1020 | ||
484X484X220 | 1000 | 9.8 | 600 | ||
610X610X220 | 1600 | 15.8 | 920 | ||
610X915X220 | 2300 | 23.7 | 1340 | ||
610X1220X220 | 3000 | 31.6 | 1750 |
Company Features
1. HAOAIRTECH specializes in manufacturing hepa filter manufacturers with high quality and reasonable price.
2. Adversity Successfully Overcome Is The Highest Glory. HAOAIRTECH Offers A Wide Range Of hepa air filter, best hepa air filter, hvac hepa filter At Reasonable Price To Customers From All Over The World. Please Contact Us!
3. HAOAIRTECH focuses on continuous technological innovation to improve products and services. Check it!
