HAOAIRTECH anti static air shower with three side blowing for large scale semiconductor factory

Cleanroom air shower for lab

Introduction:

Cleanroom Air Shower serves to protect your cleanroom environment from unwanted dusty and bacteria. Before you enter the lab, you should wear the clean garment and stay in the clearoom to take an air shower.

Quicky detail

External Size: 1300x1000x2200mm

internal size:800x930x2000mm

Bactericidal efficiency:98% (Disinfectant liquid)

HEPA filter efficiency: 99.999%@0.3um

Personal per cycle: two person per cycle

SUS nozzle and spary port : 12pcs

Blower way: 2 directional blow

Air speed :>22m/s

Power: 380V/50HZ, 380V/60HZ

Operating features :

1) Material: inside is stainless steeel 304, outside is cold rolled steel or stainless steel 304

2) HEPA filter with efficiency 99.99% up to 0.3um

3) Toughened glass for the door's window

4) Fully-automatic infrared induction blowers and showers

5)Two emergencys inside and outside, it could stop the working if need.

6) Doors will close automatically when activated

7) Stainless steel nozzle on two sides, it's more effieciency to blow.

8) The air velocity is greater than 22m/s

9) Low noise level

10) Arc corner 100-rank static state, patented product

11) high Bactericidal efficiency
12) customized designe is available.

Paramter :

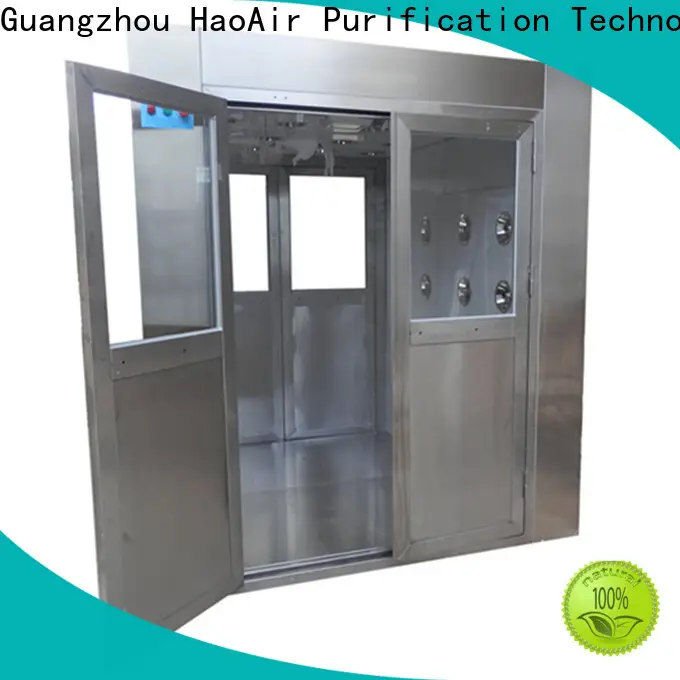

Outlook

Inside the air shower
