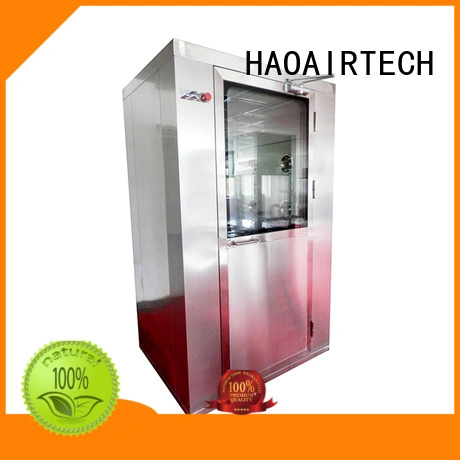

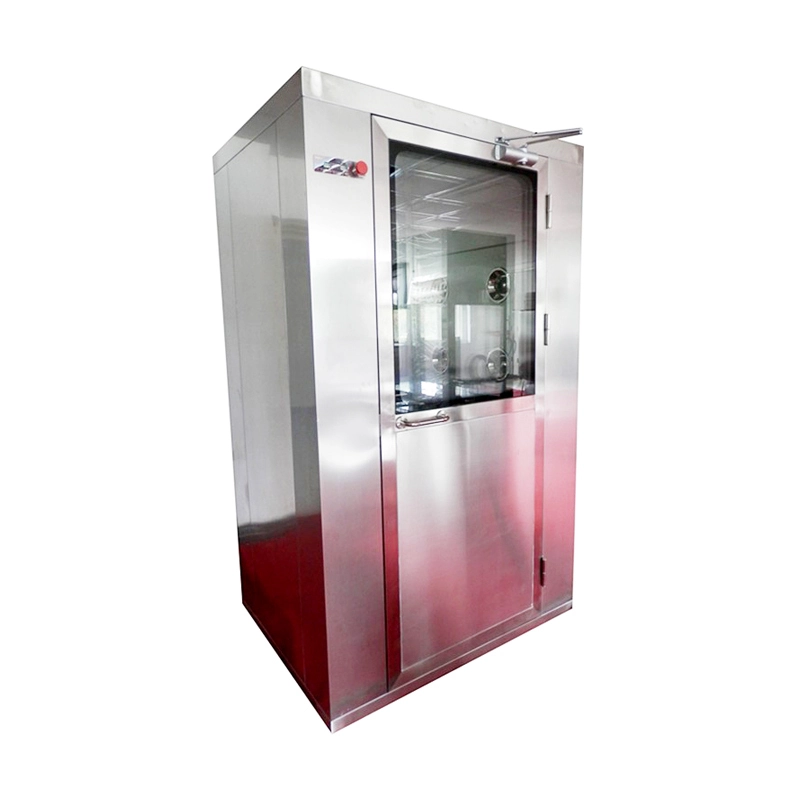

HAOAIRTECH anti static air shower channel for pallet cargo
- To achieve the goal of providing high-quality service, HaoAir runs a positive and enthusiastic customer service team. Professional training will be carried out on a regular basis, including the skills to handle customer's complaint, partnership management，channel management, customer psychology, communication and so on. All this contributes to the improvement of team members' ability and quality.
1. The quality of HAOAIRTECH auto air shower is ensured. We use textile fibers that are derived from suppliers that provide quality textile for many years.
2. This product is pill resistant, and won’t develop little balls of thread on the surface over time with proper care.
3. Seeing from the growing sales, the product has a rather promising application potential.
4. The product is deeply trusted by customers in the industry due to its wide application prospects.
External Material: stainless steel304 (t=1.0) Or steel with milk color power coated
Inside Material: stainless steel304 (t=1.0)
External size: 1400*1000*2180mm
Internal size: 790*930*1910mm

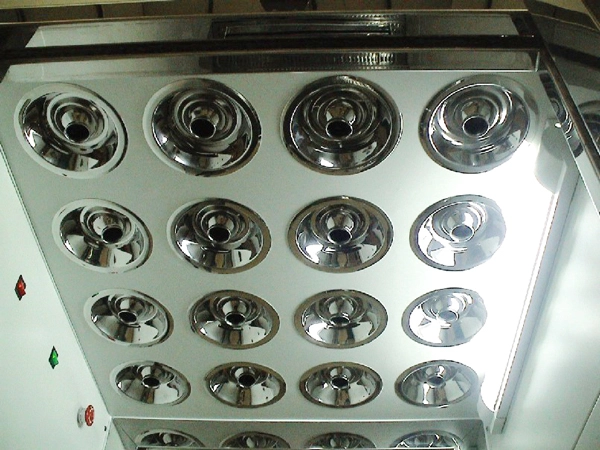

Sus nozzle: 16pcs
Blowing way: one side (top)

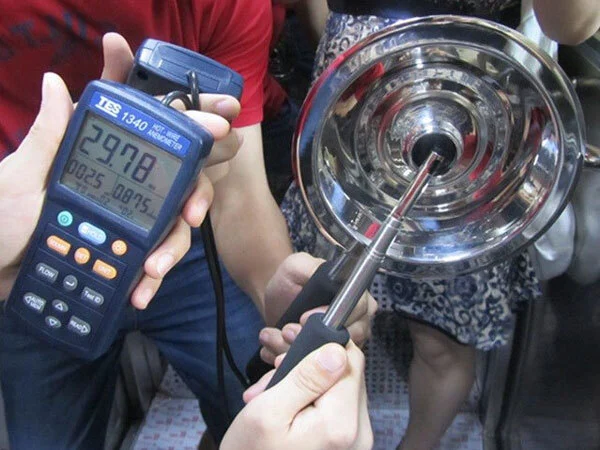

Air speed: more than 25m/s
Door: Electric Interlocking in both side.
MODEL | HA-AS1400V1 | HA-AS1400V2 | HA-AS1400V3 | |
External size (mm) | 1400x1000x2180 | 1400x2000x2180 | 1400x3000x2180 | |
Work zone (mm) | 790x930x1910 | 790x1930x1910 | 790x2930x1910 | |
Persons per cycle | 1-2 person | 2-4 person | 3-6 person | |
Material （Option） | 1：Entirety Sus304.(T=1.0/1.2/1.5mm) | |||
Control system | 1: Control system with LED display for the shower time. | |||
The power of fan | 380V/50HZ/1.1KW | 380V/50HZ/1.1KW | 380V/50HZ/1.1KW | |
Air flow of fan(m3/h) | 1500 | 1500 | 1500 | |
Fan run (r/min) | 2800 | 2800 | 2800 | |
Nozzle in stain less steel | 16 pcs | 32 pcs | 48pcs | |
Wind speed(m/s) | >25m/s | |||
Noise level(dB) | <75dB | |||
HEPA FILTER | Size(mm) | 630X630X80mm | 630X630X80mm | 630X630X80mm |
Efficiency (%) | 99.995% @ 0.3um Mini-pleats HEPA air filter | |||
Air velocity | 1000m3/h | |||
Initial resistance(pa) | <220pa | |||
Pre-filter | Size(mm) | 775x380x17 | 775x380x17 | 775x380x17 |
Efficiency(%) | 75% @ 0.5um | 75% @ 0.5um | 75% @ 0.5um | |
G3 | G3 | G3 | ||
resistance(pa) | <30 Pa | <30Pa | <30 Pa | |
parameter | Power supply | 380v/50Hz | 380v/50Hz | 380v/50Hz |
Net power(kw) | 1.5 kw | 3kw | 4.5 kw | |
packing size (mm) | 1500x1200x2250 | 1500x2200x2250 | 1500x3200x2250 | |
Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||
Weigh | 320kgs | 650kgs | 960kgs | |
Illustrate
1: Control board 2: Infrared Indicator 3: Per-filter 4: Power Indicator 5: Emergency switch 6: Working light 7: HEPA air filter (H13 99.995%@0.3um) 8: Door 9: Fan 10: Door Closer 11: Nozzle 12: Purification light
Application
Clean room air shower products are a kind of local cleaning equipment with strong versatility. They are installed between clean rooms and non clean rooms. It has been applied in many fields, such as food and beverage, biochemistry, precision instrument, electronic, photoelectric, microelectronics, fiber optic cable, precision machinery, biopharmaceutical, aeronautics and Astronautics and so on.
/ Certificated
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is famous in the air shower industry whatever in China or in world.
2. Thanks to our advanced machines, the productivity and quality of air shower manufacturer is highly increased.
3. The business philosophy in Guangzhou HaoAir Purification Technology Co.,Ltd. is auto air shower . Inquire online! Guangzhou HaoAir Purification Technology Co.,Ltd. strives to provide customers with all-round quality services. Inquire online! It is the everlasting tenet for the Guangzhou HaoAir Purification Technology Co.,Ltd. to pursue cleanroom products . Inquire online!
TX-PS001 generator parts security electric meter plastic seal
Specification
Plastic seals used PP+PE materials in -45℃ to 50 degrees no deformation by stamping or laser printing to printe number, bar code and logo.
PS-004 is flexible strap plastic seals that is widely used in shipping, oil tanker, logistic and container.
1.Total length: 345mm;
2.Wire diameter:7mm;
3.Flag: 56mm * 25mm;
4.Pull tight locking mechanism
Easy to apply
The use of plastic seals is very simple, just one of the seals through the need to tie the goods, and then the lock bar through the lock, adjusted to the right length.
Packing Weight
1.2500pcs per carton;
2.Carton Specification: 65cm*53cm*38cm.
Applications :
Security-cash and courier bags , food & beverage carts , Fire extinguisher pins, ATM Cassettes, Ballot boxes, Storage totes , Suitcases and Luggage , Health care boxes , Airline cargo , Travelling bags , Accessories , Laptop bags.
Industries-Airline , Express , Chemicals , Banking , Government , Fire service ,Health care , Food & Beverage , Fishery , Retail , E-commerce .
High-grade quality polypropylene for durability in extreme weather.
The large flag allows ample printing space to get easy identification.
Shaping one time against resealing and tampering.
Multi-locking positions for versatile usages.
Made of 100% plastic for easy recycling .
Q: Are you a manufacturer or a trading company?
A: We are a leading manufacturer in the field of security seals with over ten years experiences in
China. Our factory is located in Dezhou, Shandong Province. You are welcome to visit us at any time!
Q:Can we require any free samples for evaluation?
A: Yes, a few of free samples could be offered for your evaluation but the express charge will beborne on you. Tell us your freight collect number of any express courier or contact us for the discounted charges.
Q: Can we require our custom markings on the security seals?
A: Yes, sure! Custom laser markings could be available.
Q: Can we require the bar code on the security seals?
A: It depends on the specific item. Contact us now for the further information.
Q: Are your security seals ISO17712 compliant?
A: Some of our security seals are ISO17712 compliant. Please contact us for the details.
Q: Can you design a new type for us based on our detailed requirement?
A: With a professional and experienced designing team, we have satisfied most of our clients withtheir special requirement. Please feel free to contact us for the details.
Q: What's your minimum order quantity?
A: 250pcs for bolt seals, 1000pcs for cable seals, 5000pcs for plastic seals, meter seals
and others.
Q: Can we pay by credit card?
A: Yes, sure. Payment by T/T, L/C, Paypal, Western Union and credit card are all
available.
