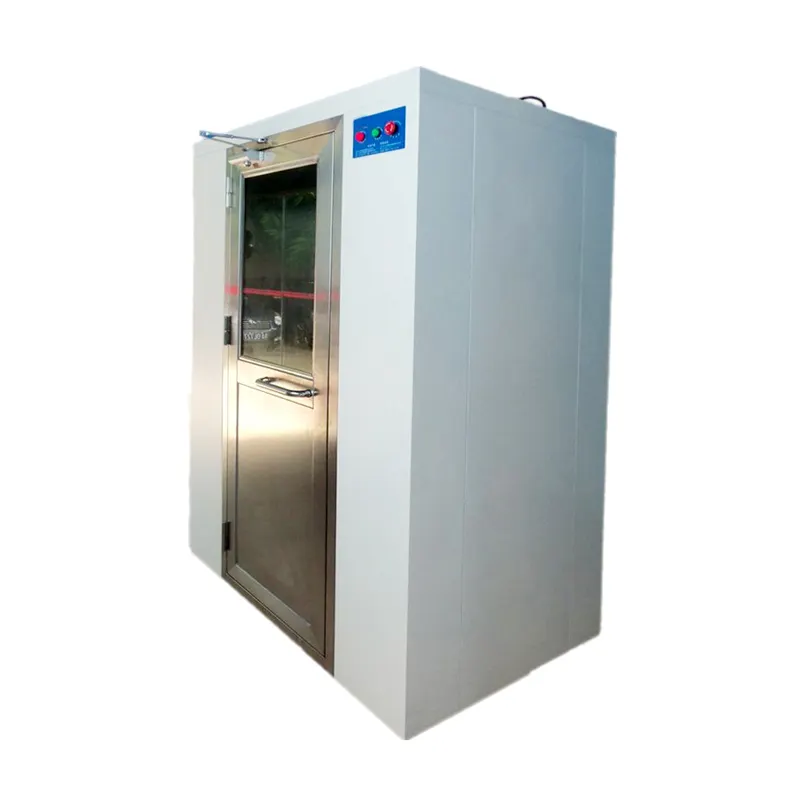

HAOAIRTECH air shower price channel for pallet cargo
1. HAOAIRTECH cleanroom products is manufactured by adopting advanced technology and production equipment.
2. The quality of the product is dependable, which is recognized by the authoritative third party.
3. It will not generate pollution in the environment. Manufacturers or distributors will collect, recycle, and handle it properly to reduce waste and pollution.
Neutralization of static electricity in short time
External Material: stainless steel304 (t=1.0)
Inside Material: stainless steel304 (t=1.0)
External size: 1300*1000*2180mm
Internal size: 800*930*1910mm

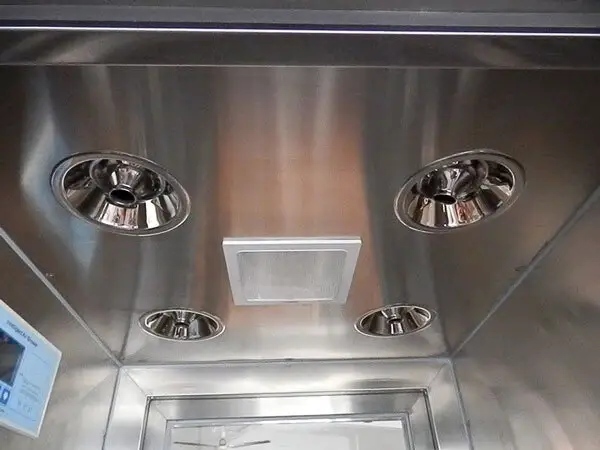

Sus nozzle: 16pcs
Blowing way: 3 side (left, right and top)

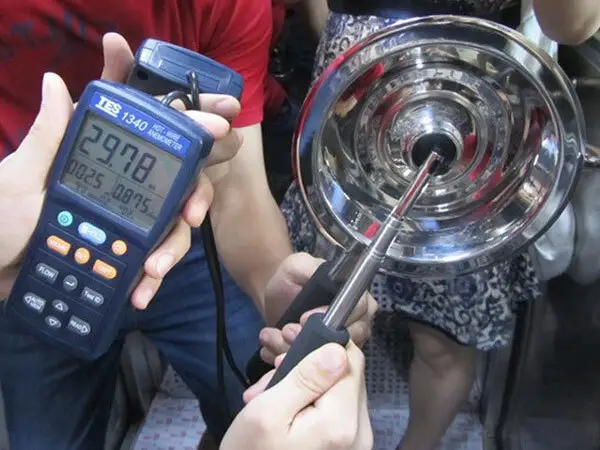

Air speed: more than 25m/s
Door: Electric Interlocking in both side
MODEL | HA-AS1300P1 | HA-AS1300P2 | HA-AS1300P3 | |
External size (mm) | 1300x1000x2180mm | 1300x2000x2180mm | 1300x3000x2180mm | |
Work zone (mm) | 800x930x1910mm | 800x1930x1910mm | 800x2930x1910mm | |
Persons per cycle | 1-2 person | 2-4 person | 3-6 person | |
Material （Option） | 1: External is steel with power coated, Internal is SUS304(T=1.0/1.2/1.5mm) | |||
Control system | 1: Control system with LED display for the shower time. | |||
The power of fan | 380V/50HZ/0.75KW | 380V/50HZ/0.75KW | 380V/50HZ/0.75KW | |
Air flow of fan(m3/h) | 1500 | 1500 | 1500 | |
Fan run (r/min) | 2800 | 2800 | 2800 | |
Nozzle in stain less steel | 16 pcs | 32 pcs | 48pcs | |
Wind speed(m/s) | >25m/s | |||
Noise level(dB) | <75dB | |||

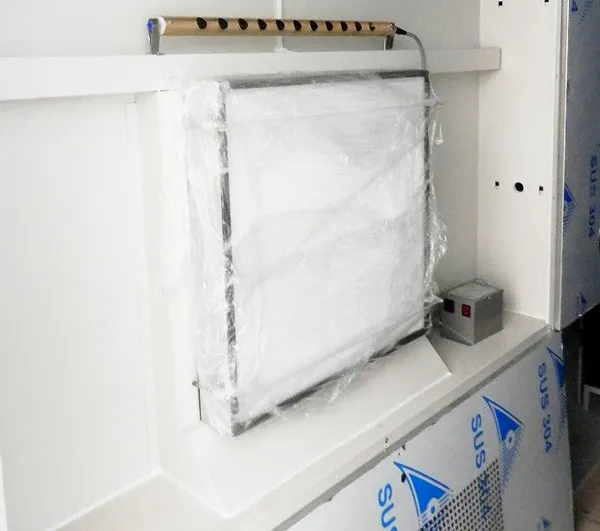

Ion rod copper | 2 pcs | 4pcs | 6 pcs | |

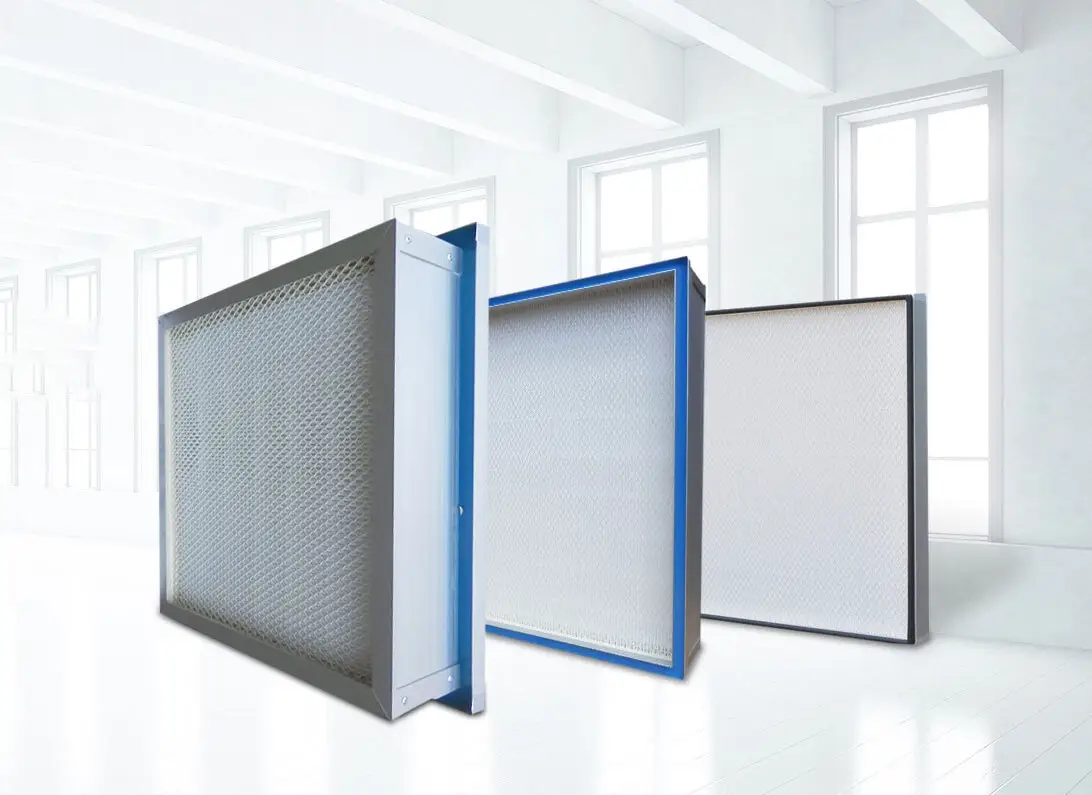

HEPA FILTER | Size(mm) | 630X630X80mm | 630X630X80mm | 630X630X80mm |
Efficiency (%) | 99.995% @ 0.3um mini-pleats HEPA Air Filter | |||
Air velocity | 1000(m3/h) | |||
Initial resistance(pa) | <180pa | |||
Pre-filter | Size(mm) | 775x380x17 | 775x380x17 | 775x380x17 |
Efficiency (%) | 75% @ 0.5um | 75% @ 0.5um | 75% @ 0.5um | |
G3 | G3 | G3 | ||
resistance(pa) | <30 Pa | <30Pa | <30 Pa | |
parameter | Power supply | 380v/50HZ 3P | 380v/50HZ 3P | 380v/50HZ 3P |
Net power(kw) | 1.5 kw | 3kw | 4.5 kw | |
packing size (mm) | 1350x1200x2250mm | 1350x2200x2250mm | 1350x3200x2250mm | |
Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||
Weigh | 320kgs | 650kgs | 960kgs | |

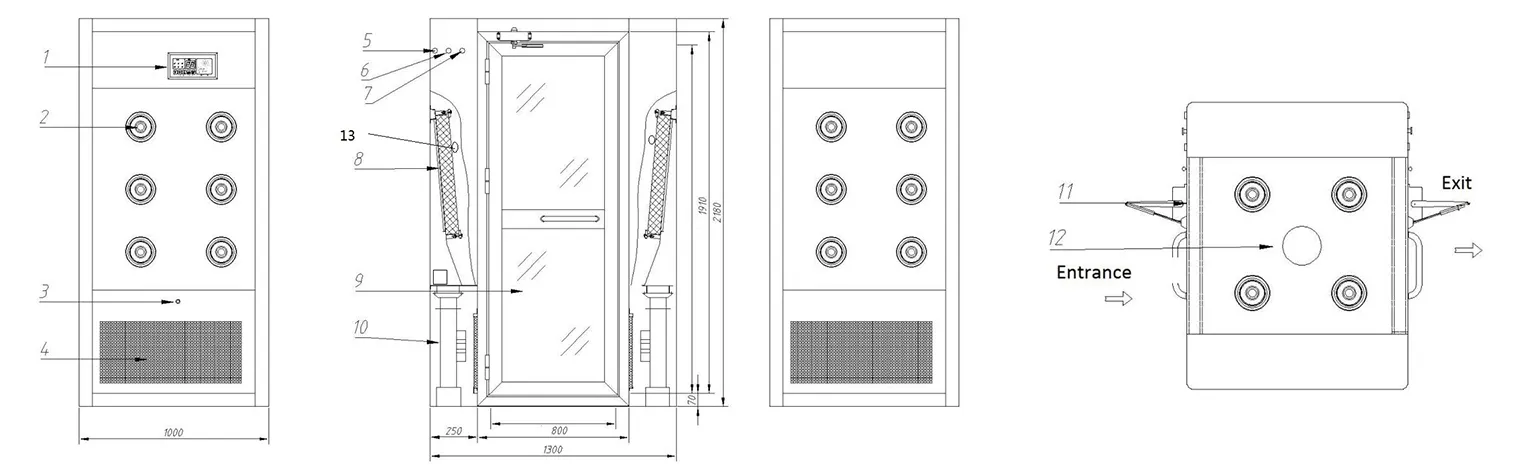

Illustrate
1: Control Board 2: Nozzle 3: Infrared Indicator 4: Per-filter 5: Power indicator 6: Emergency switch 7: Working light 8: HEPA air filter (H13 99.995%@0.3um) 9: Door 10: Fan 11: Door closer 12:Purification light 13: Ion rod copper
Application
The automatic anti-static air shower room can effectively remove the root of the static electricity, guarantee the quality of the electronic industry and improve the production efficiency. The anti static air shower room is mainly used in all kinds of manufacturing industries, such as electronic, photoelectric, semiconductor, plastic, film, printing and so on.
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is an ambitious manufacturer of cleanroom products . We've progressed since our inception through our own organic evolution.
2. We have introduced foreign high-end production devices. Combining with advanced techniques, we have realized the effective guarantee of the product producing process.
3. We are driven by our "build together" value. We grow by working together and we embrace diversity and collaboration in order to build one company. We conserve water across a wide range of actions, extending from recycling water and installing new technologies to upgrading water treatment plants.
