We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

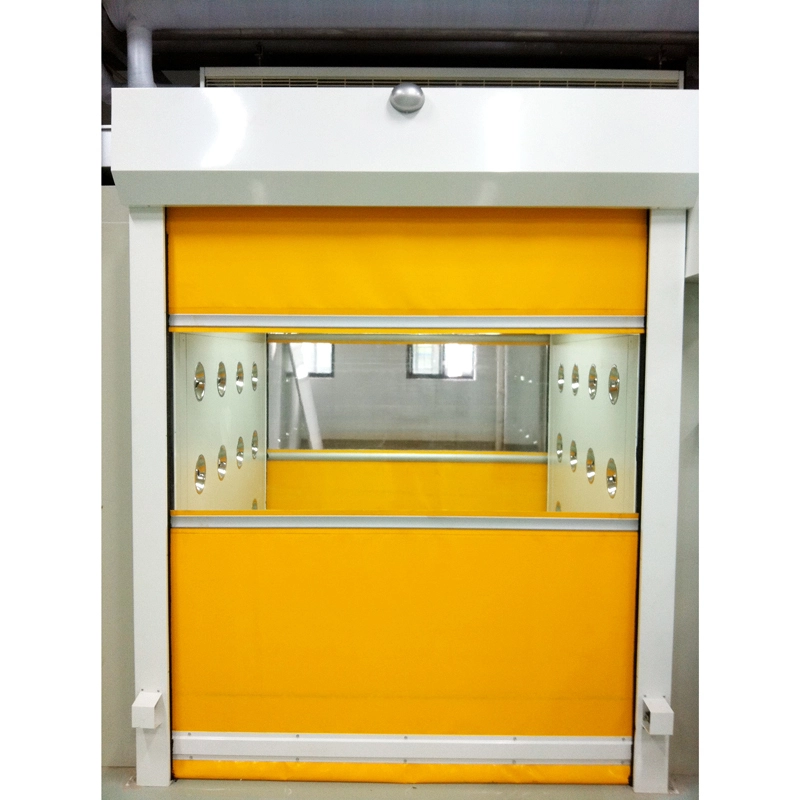

Automatic  Fast-Rolling Door Air Shower For Pallet Cargo 1
Automatic  Fast-Rolling Door Air Shower For Pallet Cargo 1

Automatic Fast-Rolling Door Air Shower For Pallet Cargo

    oops...!

    no product data.

    Go to homepage



    Product Features
    High speed Fast -rolling door Air Shower
    External Material: Steel with power coated (T=1.0)
    Inside Material: Stainless steel304 (t=1.0)
    External size:2300*2000*2280mm
    Internal size: 1500*2000*1980mm
    Sus nozzle: 36pcs
    Blowing way: 3 side (left, right and top)
    Air speed: more than 25m/s
    Door: Electric Interlocking in both side
    Automatic  Fast-Rolling Door Air Shower For Pallet Cargo 2


    / Products Parameter



    MODEL

      HA-AS2300P2

    HA-AS2300P3

    External size (mm)
         (W*D*H)

    2300x2000x2280mm

    2300x3000x2280mm

    Work zone (mm)
         (W*D*H)

    1500x2000x1980mm

    1500x3000x1980mm

    Persons per cycle

    One Small Cargo forklift.

    One big Cargo forklift.

    Material (Option)

    1:External is steel with power coated,    Internal is SUS304(T=1.0/1.2/1.5mm)
    2:External is steel with power coated.    Internal is SUS201(T=1.0/1.2/1.5mm)

    Control system

    1: Control system with LED display for    the shower time.
    2: The shower time from 0-99second.    (Adjustable)
    3: Infrared ray inductor for inside    personal shower automatic.
    4: Three side blowing with Human voice    prompt system.
    5: with CE remark.

    Door

    Automatic High Speed Rolling Door

    The power of fan

    380V/50HZ/0.75KW
         (4 set)

    380V/50HZ/0.75KW
         (6sets)

    Air flow of fan(m3/h)

         1500

    1500

    Fan run (r/min)

    2800

    2800

    Nozzle in stain less steel

         36 pcs

              54 pcs

    Wind speed(m/s)

                            >25m/s

    Noise level(dB)

                  <75dB

    HEPA FILTER

    Size(mm)

     630X630X80mm(4 sets)

           630X630X80mm(6 sets)

    Efficiency (%)

    99.995% @ 0.3um mini-pleats HEPA Air Filter

    Air velocity

    1000(m3/h)

    Initial resistance(pa)

    <180pa

    Pre-filter

    Size(mm)

         775x380x17

    775x380x17

    775x380x17

    Efficiency (%)

     75% @ 0.5um

    75% @ 0.5um

    75% @ 0.5um

       G3

        G3

    G3

    resistance(pa)

    <30 Pa

    <30Pa

    <30 Pa

    parameter

    Power supply

     380v/50HZ 3P

    380v/50HZ 3P

    380v/50HZ 3P

     Net power(kw)

            1.5 kw

        3kw

       4.5    kw




    / Specification


    Illustrate

    1: Fast shutter motor    2:Air shower control board    3:SUS Nozzle     4: Infrared Ray Indicator    5A/B:Sensor for door open    6: PVC Rolling Door    7:Big air volume motor    8: HEPA air filter(H13 99.995%@0.3um)    9: per-filter    10A/B: Sensor for door closer    11: Purification Light


    Automatic  Fast-Rolling Door Air Shower For Pallet Cargo 3


    Application

    widely used in food, chemistry, textile, electronics, supermarkets, refrigeration, logistics, warehousing and many other places.



    / Product Details



    part.1
    Fast-rolling door air shower
    Automatic  Fast-Rolling Door Air Shower For Pallet Cargo 4

    part.2
    Air Speed Test
    Automatic  Fast-Rolling Door Air Shower For Pallet Cargo 5


    Introduc

    The application of the fast rolling curtain door in the cargo shower room:
    The high speed rolling shutter door that is runs faster than 0.6 meters per second.
    It is a fast lifting and barrier free isolation door. The most important performance is fast isolation so as to ensure the clean quality of workshop air quality. It has many Characteristic such as heat preservation, cold keeping, insect protection, windproof, dustproof, sound insulation, fire prevention, odor prevention, day lighting and so on .
    High performance of logistics and air clean purification places, and save energy, high speed automatic closure, improve work efficiency, create a better environment and other advantages.
    Because of the above advantages of the fast rolling shutter door already use for cargo air shower ,the curtain door has been applied to the top of the shower room.
    By using it, it is very suitable for the demand of the shower room operation. The use of the staff is very convenient, the security and the stability of the operation are very good.



    / Certificated:

    Automatic  Fast-Rolling Door Air Shower For Pallet Cargo 6




    / Our Service


    Automatic  Fast-Rolling Door Air Shower For Pallet Cargo 7

    Our Service

    1:Document
    A: Document for custom clear: 1 sets
    B: Assemble draw: 1 pcs
    C: Circuit diagram draw: 1 pcs
    D: Test report : 1sets
    E: Additional IQ/OQ/PQ document is available upon request.
    2: Air Shower Spare Part so that you can replacement in future by yourself:
    A: HEPA air filter +Pre-filter (as your request) Note: HEPA air filter should be replacement in half and one year. Pre-filter should be replacement in each 6 months, but it can refresh no more than 3 times
    B: Sensor (As your request)
    C: Control board (as your request)
    3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
