We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

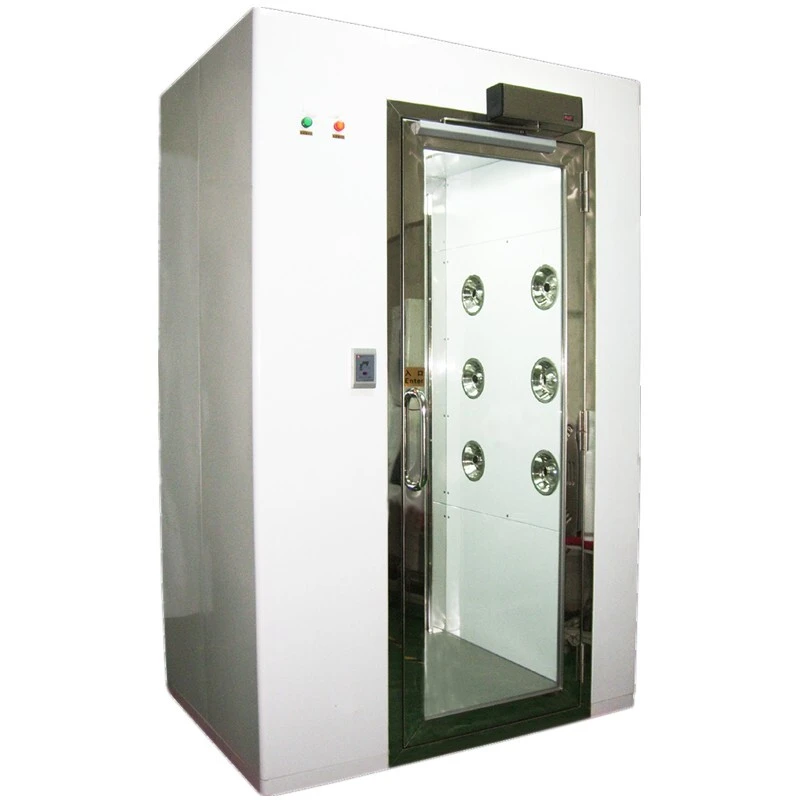

High Efficiency Clean Room Air Shower With 90 Degree Automatic Swing Door 1
High Efficiency Clean Room Air Shower With 90 Degree Automatic Swing Door 1

High Efficiency Clean Room Air Shower With 90 Degree Automatic Swing Door

    oops...!

    no product data.

    Go to homepage



    Product Features
    Capacity Per cycle: One or two person
    External Material: steel with powder coated (t=1.0)
    Inside Material: stainless steel304 or steel with power coated (t=1.0)
    External size: 1300*1000*2180mm
    Internal size: 800*930*1910mm
    Sus nozzle: 16pcs
    Blowing way: 3 side (left, right and top)
    Air speed: more than 25m/s
    Door: Electric Interlocking in both side.
    High Efficiency Clean Room Air Shower With 90 Degree Automatic Swing Door 2


    / Products Parameter


    MODEL

        HA-AS1300P1

    HA-AS1300P2

    External size (mm)
         (W*D*H)

    1300x1000x2180mm

    1300x2000x2180mm

    Work zone (mm)
         (W*D*H)

    800x930x1910mm

    800x1930x1910mm

    Capacity Per cycle

    One or Two person

    Two or Four person .

    Material (Option)

    1: External is steel with power coated,    Internal is SUS304(T=1.0/1.2/1.5mm)
    2: External is steel with power coated.    Internal is SUS201(T=1.0/1.2/1.5mm)
    3: External and internal is steel with    power coated. (T=1.0/1.2/1.5mm)

    Control system

    1: Control system with LED display for    the shower time.
    2: The shower time from 0-99second.    (Adjustable)
    3: Infrared ray inductor for inside    personal shower automatic.
    4: Three side blowing with Human voice    prompt system.
    5: with CE remark.

    The power of fan

    380V/50HZ/0.75KW
         (4set)

    380V/50HZ/0.75KW
         (6sets)

    Air flow of fan(m3/h)

         1500

    1500

    Fan run (r/min)

    2800

    2800

    Nozzle in stain less steel

    16 pcs

    32pcs

    Wind speed(m/s)

    >25m/s

    Noise level(dB)

    <75dB

    HEPA FILTER

    Size(mm)

        630X630X80mm
         (2 sets)

    630X630X80mm
         (4 sets)

    Efficiency (%)

    99.995% @ 0.3um  mini-pleats    HEPA Air Filter

    Air velocity

    1000(m3/h)

    Initial resistance(pa)

    <180pa

    Pre-filter

    Size(mm)

         775x380x17

    775x380x17

    Efficiency (%)

       75% @ 0.5um

    75% @ 0.5um

       G3

    G3

    resistance(pa)

    <30 Pa

    <30 Pa

    parameter

    Power supply

     380v/50HZ 3P

    380v/50HZ 3P

     Net power(kw)

            3 kw

              4.5 kw

    packing size    (mm)

    1400x1200x2280mm

    1400x2200x2280mm

    Packing    material

    Standard Export Poly wood Packing(Fumigant free material)

    Weight

    330kgs

    660kgs



    / Specification


    Illustrate

    1: Control Board   2: SUS Nozzle   3: Infrared Indicator    4: Emergency switch   5: Working light   6:Glass window   7: HEPA air filter   8: Blower   9: Per-filter (H13 99.995%@0.3um)   10: Door closer   11: Purification light



    High Efficiency Clean Room Air Shower With 90 Degree Automatic Swing Door 3



    / Product Details



    part.1
    Automatic cleanroom air shower
    High Efficiency Clean Room Air Shower With 90 Degree Automatic Swing Door 4

    part.2
    Automatic air shower Door Sensor (150mm Distance)
    High Efficiency Clean Room Air Shower With 90 Degree Automatic Swing Door 5

    part.3
    Auto Door Closer For The Cleanroom Air Shower
    High Efficiency Clean Room Air Shower With 90 Degree Automatic Swing Door 6


    Application

    The cargo air shower is one of the goods buffer passages that enter the clean room. It can minimize the pollution caused by commodity or goods entering and out of the dust free room. The equipment for showering the goods is commonly known as the cargo shower room;. The cargo air shower is part of the cargo passage. It has been applied in many fields, such as food and beverage, biochemistry, precision instrument, electronic, photoelectric, microelectronics, fiber optic cable, precision machinery, biopharmaceutical, aeronautics and Astronautics and so on.



    / Certificated

    High Efficiency Clean Room Air Shower With 90 Degree Automatic Swing Door 7





    / Our Service


    High Efficiency Clean Room Air Shower With 90 Degree Automatic Swing Door 8

    Our Service

    1:Document
    A: Document for custom clear: 1 sets
    B: Assemble draw: 1 pcs
    C: Circuit diagram draw: 1 pcs
    D: Test report : 1sets
    E: Additional IQ/OQ/PQ document is available upon request.
    2: Air Shower Spare Part so that you can replacement in future by yourself:
    A: HEPA air filter +Pre-filter (as your request) Note: HEPA air filter should be replacement in half and one year. Pre-filter should be replacement in each 6 months, but it can refresh no more than 3 times
    B: Sensor (As your request)
    C: Control board (as your request)
    3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
