HAOAIRTECH air purifiers hepa filter with big air volume for electronic industry1

Brand:
HAOAIRTECH
Model number:
HA-HEPA-P Series
OEM /ODM:
Yes
Certificated:
Rosh
Start port:
Guangzhou
Delivery time:
8 working days after we get the deposit.
MOQ:
10sets
Country of Original:
China
Supply ability:
500set/one month
Payment term:
T/T , L/C , Western union
Application:
Worker in Clean room
Inquiry
Company Advantages
1. HAOAIRTECH high efficiency particulate air filter goes through a complete design process. The process mainly includes a purpose statement, consideration of mechanisms&transmitted forces, material selection, etc. The product dedicates to keeping a cleanliness class of 10000-300000
2. The product is widely praised among users for its good characteristics and has a high market application potential. The product is reputed for its long service life
3. Every defect of the product has been quickly detected and timely corrected, ensuring the consistent quality. The product prevents viruses and bacteria from spreading



Characteristics
The carve box folds can prevent the breakage of the filter material.
Neoprene /EVA gasket prevent the air leaking in operation.
MDF frame in 120mm, 150mm, 220mm for choose.
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um
Max temperature is 80C
Max humidity is 80%
HAOAIRTECH air purifiers hepa filter with big air volume for electronic industry1 9


Introduce

Heap air filter with paper clapboard adopt the special design to keep the space between pleated layers by clapboard. Paper spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.



/ Operating Conditions


 Media

Super glass fibre

 Frame

AL/GL/MDF frame

Gasket

Neoprene /EVA or PU

Media    spacer

Hot melt

Frame thickness    (mm)

120/150/220

Clapboard

120g/m paper

Efficiency

99.99%-99.999%@0.3um

Max    Temperature

80℃

Max    Humidity

80%



/ Products Parameter


Dimension(mm)
     (W*H*D)

Rate    Air
Flow
(m3/h)

Media  Area
(m2)

Dust  Holding
(g)

Rate primary
Resistance(Pa)
(H13-H14)

 Finally
Resistance   (Pa)

484X484X120

450

4.4

230





220Pa





400-600pa

610X610X120

700

7.1

370

610X915X120

1050

10.6

560

610X1220X120

1400

14.1

740

484X484X150

600

6

320

610X610X150

1000

9.7

510

610X915X150

1500

14.5

770

610X1220X150

2000

19.3

1020

484X484X220

1000

9.8

600

610X610X220

1600

15.8

920

610X915X220

2300

23.7

1340

610X1220X220

3000

31.6

1750

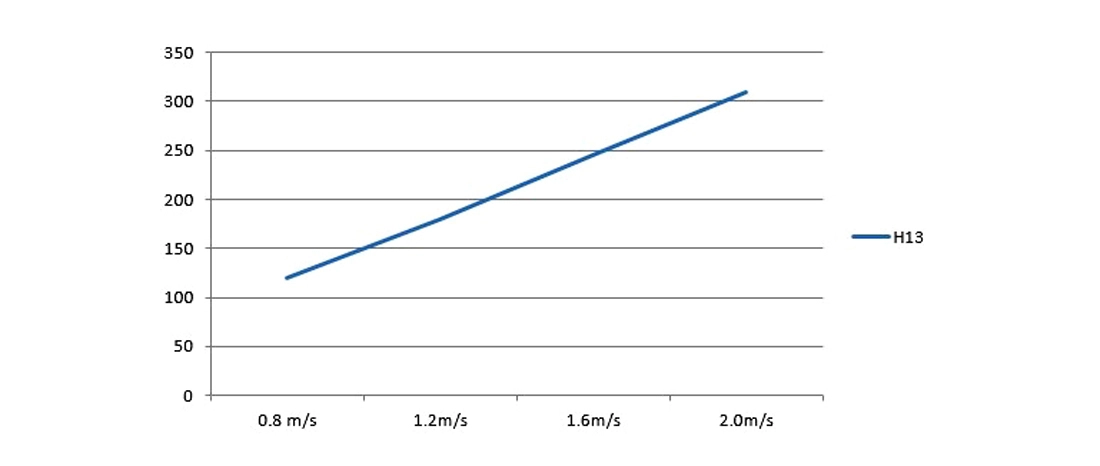

/ Primary Resistance & Face Velocity Diagram


HAOAIRTECH air purifiers hepa filter with big air volume for electronic industry1 10



/ Product Details



part.1

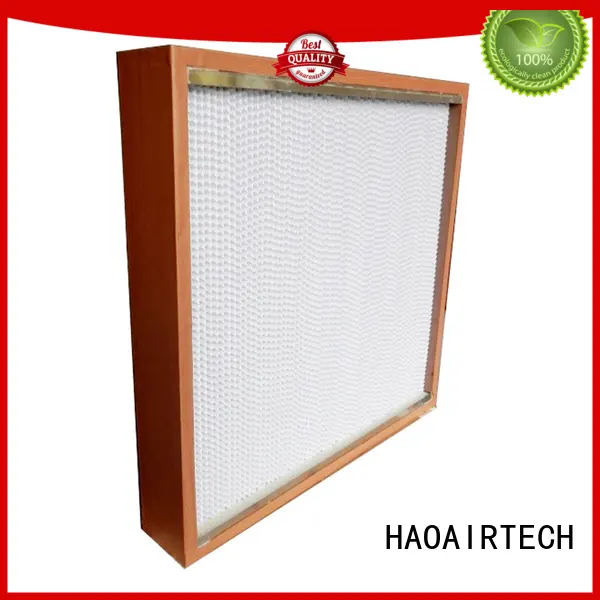

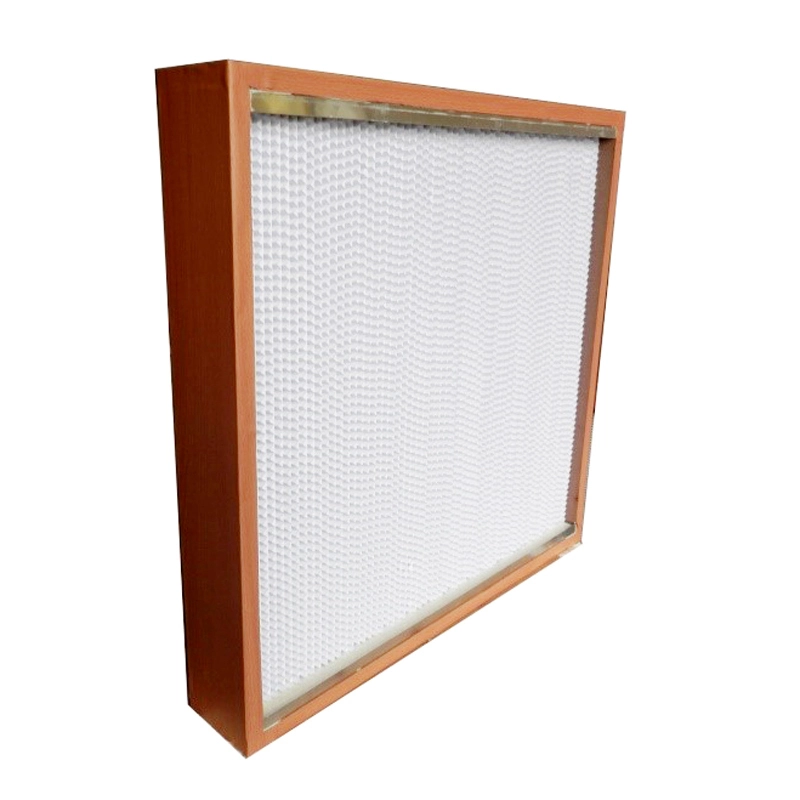

HEPA air filter With Paper Clapboard
HAOAIRTECH air purifiers hepa filter with big air volume for electronic industry1 11

part.2

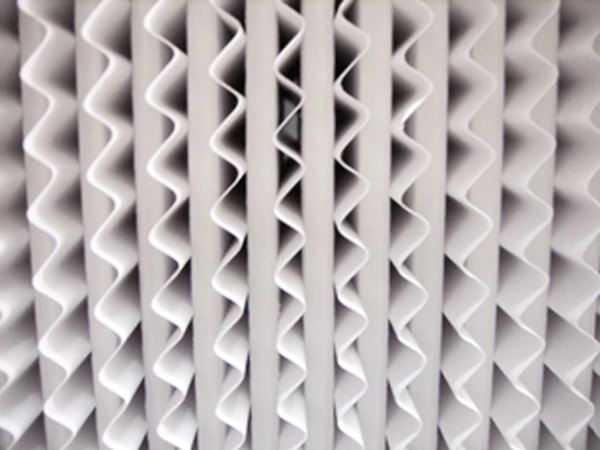

Paper clapboard separate the media
HAOAIRTECH air purifiers hepa filter with big air volume for electronic industry1 12



/ package


HAOAIRTECH air purifiers hepa filter with big air volume for electronic industry1 13
HAOAIRTECH air purifiers hepa filter with big air volume for electronic industry1 14
HAOAIRTECH air purifiers hepa filter with big air volume for electronic industry1 15
