HAOAIRTECH air pleated filter manufacturer for clean return air system

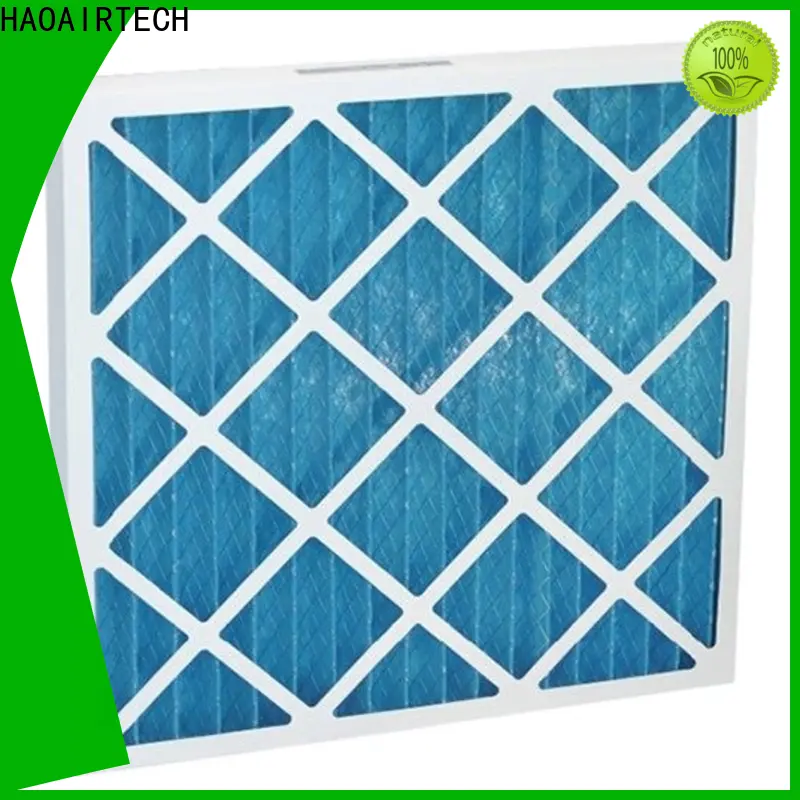

Cardboard frame Deep Pleated filter Disposable Pleat Filter
Introduce:
Pleated panel air filters are designed for use in air filtration systems and equipment, as stand alone basic efficiency products or as pre-filters to higher efficiency bag, rigid box or cell type filter.
Media bonded to expanded metal support grid create one of the most rigid filters of its type in the industry.
The media pack, comprised of 100% polypropylene fibers, is bonded to the inside perimeter of the enclosure frame by a moisture resistant adhesive,providing a continuous and positives.
Material and operation condition
| media | cotton |
| sealant | adhesive |
| frame | aluminum/galvanized/stainless steel/cardboard |
| efficiency | 40%~90% 2.0μm |
| max.temperature | 80°C |
| max.humidity | 80%-100% |
| optional aluminum | 15-96mm |
Product features
1.Standard plate more plait the filter.
2.More reststant material selection box type high moisture industrial carboard or aluminum frame,carboard frame filter can reduce the cost.
3.Barbed wire fixed filter material is linear plait shape structure,has the very high let dust capacity.
4.Filter material and outer frame seal connections,prevent air leakage phenomenon.
Application
The office,shoping mall,stadium,and the airport, general industrial workshop,clean room of air distribution system on the filter.
Technology parameter
| model | width (mm) | height (mm) | depth (mm) | air flow (m³/h) | initial resistance (≤pa) | final resistance (pa) | media area (m²) | dust holding (g) | efficency |
| HA-A-001 | 595 | 595 | 46 | 2800 | 30 | 100-200 | 1.23 | 104 | G2 |
| HA-A-002 | 595 | 595 | 46 | 2800 | 40 | 100-200 | 1.23 | 117 | G3 |
| HA-A-003 | 595 | 595 | 46 | 2800 | 45 | 150-250 | 1.23 | 222 | G4 |
| HA-A-004 | 595 | 495 | 46 | 2600 | 30 | 100-200 | 1.02 | 87 | G2 |
| HA-A-005 | 595 | 495 | 46 | 2600 | 40 | 100-200 | 1.02 | 97 | G3 |
| HA-A-006 | 595 | 495 | 46 | 2600 | 45 | 150-250 | 1.02 | 184 | G4 |
| HA-A-007 | 595 | 295 | 46 | 1500 | 30 | 100-200 | 0.6 | 50 | G2 |
| HA-A-008 | 595 | 295 | 46 | 1500 | 40 | 100-200 | 0.6 | 57 | G3 |
| HA-A-009 | 595 | 295 | 46 | 1500 | 45 | 150-250 | 0.6 | 107 | G4 |
| HA-A-010 | 495 | 595 | 46 | 2600 | 30 | 100-200 | 1.02 | 87 | G2 |
| HA-A-011 | 495 | 595 | 46 | 2600 | 40 | 100-200 | 1.02 | 97 | G3 |
| HA-A-012 | 495 | 595 | 46 | 2600 | 45 | 150-250 | 1.02 | 185 | G4 |
| HA-A-013 | 495 | 495 | 46 | 2200 | 30 | 100-200 | 0.85 | 72 | G2 |
| HA-A-014 | 495 | 495 | 46 | 2200 | 40 | 100-200 | 0.85 | 80 | G3 |
| HA-A-015 | 495 | 495 | 46 | 2200 | 45 | 150-250 | 0.85 | 152 | G4 |
| HA-A-016 | 295 | 595 | 46 | 1500 | 30 | 100-200 | 0.59 | 50 | G2 |
| HA-A-017 | 295 | 595 | 46 | 1500 | 40 | 100-200 | 0.59 | 56 | G3 |
| HA-A-018 | 295 | 595 | 46 | 1500 | 45 | 150-250 | 0.59 | 106 | G4 |
| HA-A-019 | 295 | 495 | 46 | 1300 | 30 | 100-200 | 0.49 | 42 | G2 |
| HA-A-020 | 295 | 495 | 46 | 1300 | 40 | 100-200 | 0.49 | 46 | G3 |
| HA-A-021 | 295 | 495 | 46 | 1300 | 45 | 150-250 | 0.49 | 88 | G4 |
| HA-A-022 | 295 | 295 | 46 | 750 | 30 | 100-200 | 0.28 | 24 | G2 |
| HA-A-023 | 295 | 295 | 46 | 750 | 40 | 100-200 | 0.28 | 27 | G3 |
| HA-A-024 | 295 | 295 | 46 | 750 | 45 | 150-250 | 0.28 | 52 | G4 |
