Product Details
With the dedication to pursue excellence, HaoAirtech strives for perfection in every detail.pass boxes is in line with the stringent quality standards. The price is more favorable than other products in the industry and the cost performance is relatively high.
Company Advantages1. The direction
air filter hepa will develop towards is to meet your requirements.
2. This product is colorfast. It has passed the laboratory testing which creates different conditions such as wet, dry, heat, frost, perspiration, and light.
3. The product only consumes a little power energy with high efficiency. Customers say the operating cost of this product is lower than they expect.
4. The translucent feature of this product makes it perfect for the cooks who enjoy using it for culinary creations and decoration.
Characteristics

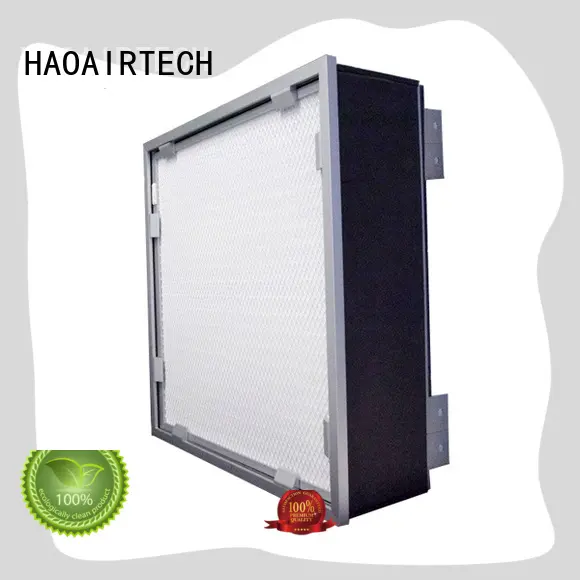

The Replaceable HEPA filter with hood cabinet are designed in closed integration which prevent the air leakage. Meanwhile the heap filter replaceable from cleanroom inside.
This filter light weight and easy maintain
Air duct is galvanized steel and the diameter is 250mm, 300mm and 350mm for your choose
Control valve for air flow adjust (optional).
The media material is super glass fibre for 0.3um particulate.
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.95%-99.995%@0.3um
/ Operating Conditions
Media | Super glass fibre |
Frame | AL/GL frame |
Gasket | Neoprene /EVA |
Media spacer | Hot melt |
cabinet thickness (mm) | 150/180mm |
Filter frame | 69mm |
Efficiency | 99.99%-99.999%@0.3um |
Max Temperature | 70℃ |
Max Humidity | 100% |
/ Products Parameter
Cabinet size(mm)
(W*H*D) | Filter size(mm)
(W*H*D) | Rate Air Flow
(m3/h) | Media Area
(m2) | Dust Holding
(g) | Rate primary
Resistance
(Pa) | Finally
Resistance
(Pa) | Efficiency |
360X360X180 | 320x320x69 | 264 | 2.93 | 126 |
<220pa |
400-600pa |
H13-H14 |
524X524X180 | 484x484x69 | 600 | 6.61 | 397 |
650X650X180 | 610x610x69 | 1000 | 10.44 | 627 |
670X670X180 | 630x630x69 | 1050 | 11.13 | 668 |
650X955X180 | 610x915x69 | 1500 | 15.42 | 925 |
650x1260x180 | 610x1220x69 | 2000 | 20.40 | 1224 |
670x1300x180 | 630x1260x69 | 2100 | 21.76 | 1306 |
345x345x180 | 305x305x69 | 240 | 2.66 | 160 |
345x650x180 | 305x610x69 | 500 | 5.09 | 305 |
345x955x180 | 305x915x69 | 750 | 7.52 | 450 |
640x640x180 | 600x600x69 | 980 | 10.11 | 607 |
640x1240x180 | 600x1200x69 | 1980 | 19.74 | 1185 |
650x1280x180 | 610x1240x69 | 2050 | 20.74 | 1244 |
524x1008x180 | 484x968x69 | 1250 | 12.85 | 771 |
/ Product Details
part.1
Replaceable HEPA air filter
part.2
Replaceable HEPA air filter
part.3
Mini-Pleats Media Compact
part.4
Air Filter Dust Detection Test
Application
The replaceable HEPA air filter with hood suitable for high and strict working environment such
as surgery, lab, pharmacy , micro-electric ,film production in terminal filtration of the air-condition filtration system
/ package
