HAOAIRTECH absolute air filter hepa with flanger for dust colletor hospital

Company Advantages
1. The whole production process of HAOAIRTECH air filter hepa is well-controlled and efficient.
2. air filter hepa offers several advantages in terms of hepa filter replacements .
3. By the technology of hepa filter replacements , air filter hepa has achieved high performance especially in its hepa air cleaner .
4. air filter hepa from Guangzhou HaoAir Purification Technology Co.,Ltd. helps customers enhance their values.
5. Along the way, Guangzhou HaoAir Purification Technology Co.,Ltd. has transformed itself into a competitive company with air filter hepa as its core business.

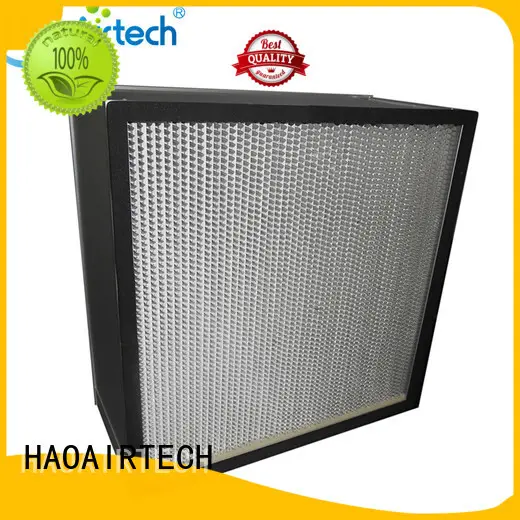

Deep Pleated HEPA Filter

Construction :

       Deep Pleat filters are designed to give the optimum combination of high filtration efficiency and excellent dust holding capacity. They consist of a deep pleat pack of filter media, sealed into either a

corrosion resistant coated mild steel or MDF case.The filter pack is a continuous length of high efficiency

water repellent micro-fibre glass filter media, folded over aluminium or kraft paper separators.

It is then bonded to the case with a polyurethane sealant to give a rigid and robust construction.

Operating Conditions:

Media	Super glass fibre
Frame	AL/GL/MDF frame
Gasket	Neoprene /EVA or PU
Media Spacer	Hot melt
Frame Thickness (Mm)	120/150/220
Clapboard	0.035mm aluminum foil
Efficiency	99.99%-99.999%@0.3um
Max Temperature	80℃
Max Humidity	80%

Products Parameter:

Dimension(mm) (W*H*D)	Rate Air Flow (M3/h)	Media Area (M2)	Dust Holding (g)	Rate primary Resistance(Pa) (H13-H14)	Finally Resistance (Pa)
484X484X120	450	4.4	230	220Pa	400-600pa
610X610X120	700	7.1	370
610X915X120	1050	10.6	560
610X1220X120	1400	14.1	740
484X484X150	600	6	320
610X610X150	1000	9.7	510
610X915X150	1500	14.5	770
610X1220X150	2000	19.3	1020
484X484X220	1000	9.8	600
610X610X220	1600	15.8	920
610X915X220	2300	23.7	1340
610X1220X220	3000	31.6	1750

Company Features
1. Known as a strong competitor in manufacturing hepa filter replacements , Guangzhou HaoAir Purification Technology Co.,Ltd. has a good business reputation in nearly every regions in domestic.
2. Our company brings together a group of talented committed and engaged employees. Their skills, knowledge, attitude, and creativity ensure that we continue to deliver great service and positive outcomes for our clients.
3. Guangzhou HaoAir Purification Technology Co.,Ltd. will constantly pay attention to the commercial mode and advocate innovation spirits. Ask online! HAOAIRTECH devotes to work for customers with superior services and quality guarantees. Ask online! The enterprise culture that HAOAIRTECH sticks to turns out to be important for the qualified service provided by our staff. Ask online! Guangzhou HaoAir Purification Technology Co.,Ltd. takes initiative by utilizing opportunities. Ask online!
