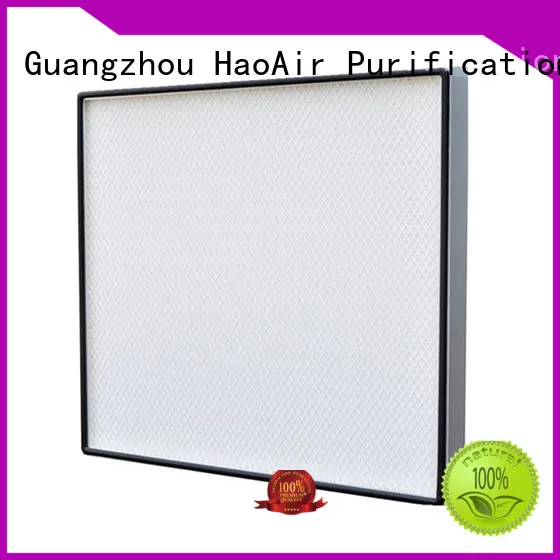

h12 hepa filter for electronic industry HAOAIRTECH1
1. Designing h12 hepa filter is a great way for HAOAIRTECH to gain more customers.
2. The product has a quality that exceeds the international standards.
3. The quality of this product is in compliance with international standards.
4. It has a good application prospect and value.
5. By years of development, the product has successfully gained trust from clients and tends to be more applied in the global market.

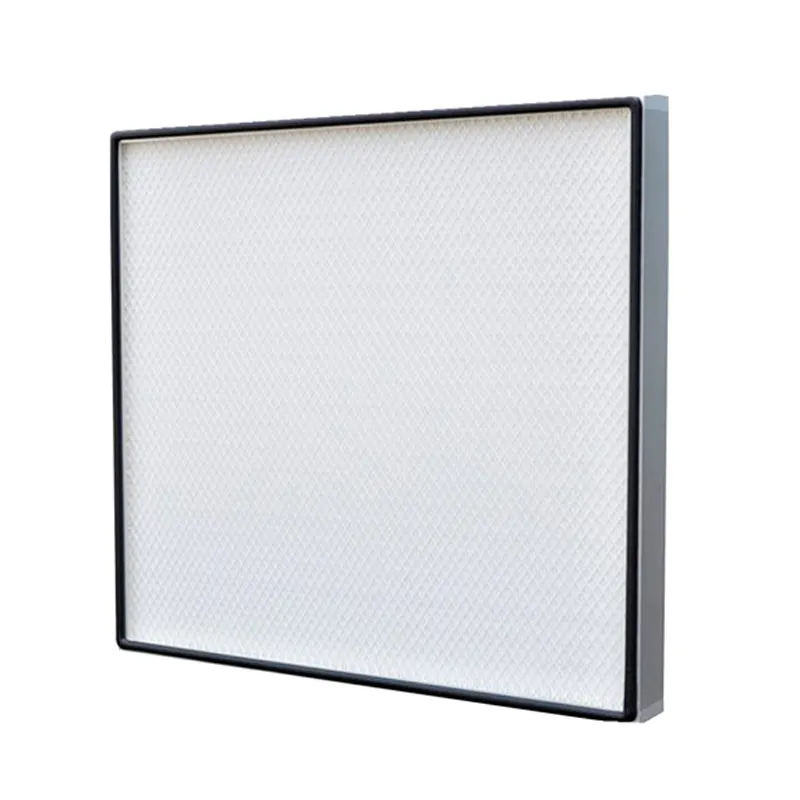

It is patent technology to ensure the V type passage in low resistance.
Neoprene /EVA or PU gasket prevent the air leaking in operation
Extrude and anodized aluminum frame in 50mm, 69mm, 80mm, 90mm for choose.
While color metal screen to protect the filtration media without any damage.
Light weight and easy to install
Adopting the laser to scan the filter one by one ( MPPS).
100 % provide the test report for each mini-pleats ULPA air filter
Filtration Efficiency: U15 ,U16, U17.(EN1822). 99.9995%-99.99995%@0.12um
Applied to the terminal filtration of the air-condition filtration system
Media | America HV Super glass fibre |
Frame | AL/GL/SUS201/304 frame |
Gasket | Neoprene /EVA or PU |
Media spacer | Hot melt |
Frame thickness (mm) | 46/50/69/80/90/96/120 |
Screen | Metal screen |
Efficiency | >99.9995%-99.99995%@0.12um |
Max Temperature | 70℃ |
Max Humidity | 100% |

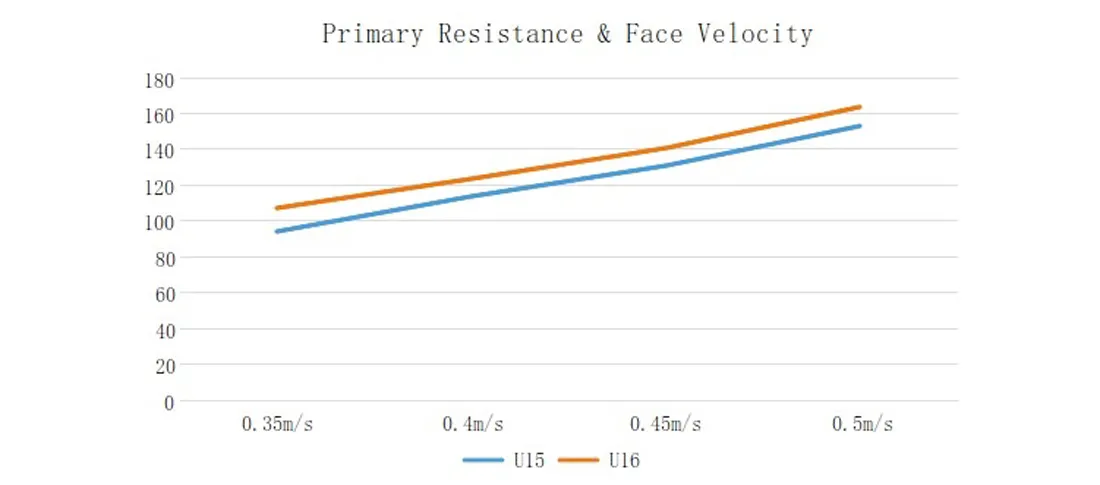

Dimension(mm) | Rate Air Flow | Media Area | Dust Holding | Rate primary | Finally | Efficiency |
320X320X50 | 120 | 2 | 130 |
<200Pa |
400-600pa |
U15-U17 |
484X484X50 | 300 | 4.5 | 300 | |||
610X610X50 | 500 | 7.1 | 428 | |||
915X610X50 | 730 | 10.6 | 635 | |||
1220X610X50 | 980 | 14 | 842 | |||
305X305X69 | 150 | 2.9 | 173 | |||
484X484X69 | 400 | 6.5 | 393 | |||
610X610X69 | 600 | 10.3 | 622 | |||
915X610X69 | 900 | 15.4 | 923 | |||
1220X610X69 | 1200 | 20.4 | 1224 |
Application
Mini-Pleats ULPA air filter suitable for air cleaner ,dust colletor hospital, electronic industry ,food,Pharmaceutical ,bio-engineering,precision instrument, electron semiconductors and dust-free room, national defense,aerospace field and so on .
Our Service
1: 100% scann air leaking test for each Mini-PleatsHEPA air flter, test report accompany all of
HEPA air filter.
2: 2 pcs in one carton .each air filter warp by PE Bag .
3: Small order is polywood packing so that we can send out by sea in LCL.
4: If order amount more than 20000USD, We accept the 100% LC at sight against with
document.
5: Free sample possible for you confirmation of quality .
