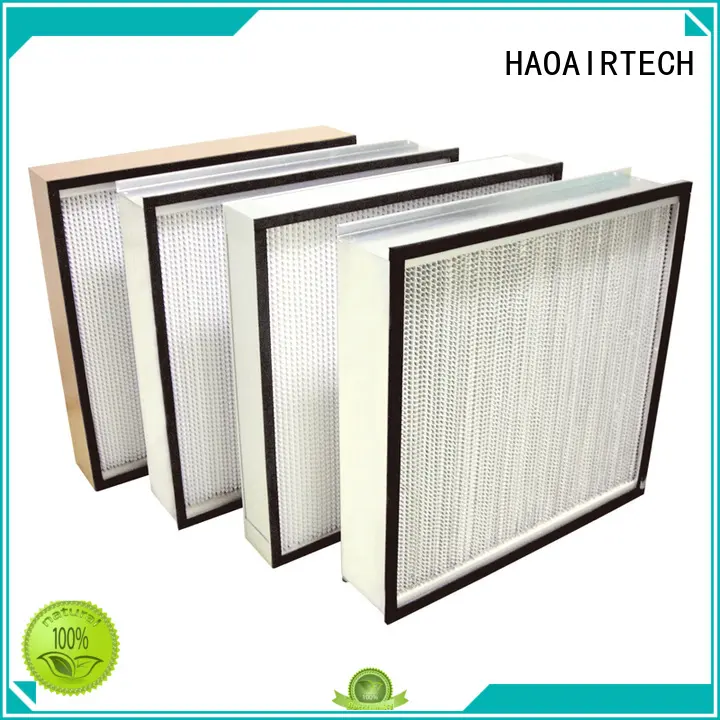

gel seal hepa air filter with big air volume for electronic industry

Company Advantages
1. The use of high quality materials and innovative designs gives the user of hepa air filter excellent performance and long service life.
2. The product features great sound insulation. It absorbs sound by reducing the velocity of particles that carry the sound waves in the air.
3. The drying temperature of this product is free to adjust. Unlike the traditional dehydrating methods that are unable to change the temperature freely, it is equipped with a thermostat to achieve optimized drying effect.
4. Perfect inner management system and modern production base is good basic for goods quality hepa air filter of Guangzhou HaoAir Purification Technology Co.,Ltd..
5. Abundant talent reserves and superior design capabilities for hepa air filter are the primary force of Guangzhou HaoAir Purification Technology Co.,Ltd.'s rapid development.

Deep Pleats Heap air filter adopt the special design to keep the space between pleated layers by Clapboard. Corrugated aluminum spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.

Media	Super glass fibre
Frame	AL/GL/MDF frame
Gasket	Neoprene /EVA or PU
Media    spacer	Hot melt
Frame thickness    (mm)	120/150/220
Clapboard	0.035mm aluminum foil or 120g/m paper
Efficiency	99.99%-99.999%@0.3um
Max    Temperature	80℃
Max    Humidity	80%

Dimension(mm) (W*H*D)	Rate Air      Flow   (m3/h)	Media    Area (m2)	Dust    Holding (g)	Rate    primary      Resistance(Pa)      (H13-H14)	Finally      Resistance    (Pa)
484X484X120	450	4.4	230	220Pa	400-600pa
610X610X120	700	7.1	370
610X915X120	1050	10.6	560
610X1220X120	1400	14.1	740
484X484X150	600	6	320
610X610X150	1000	9.7	510
610X915X150	1500	14.5	770
610X1220X150	2000	19.3	1020
484X484X220	1000	9.8	600
610X610X220	1600	15.8	920
610X915X220	2300	23.7	1340
610X1220X220	3000	31.6	1750

Company Features
1. HAOAIRTECH has received more and more compliments for its finest quality hepa air filter .
2. Our company has excellent management. They are able to create a positive and attractive work environment in which all teams can build strong relationships with each other and with customers.
3. Our values are service excellence, flexibility, and creativity. We will equip our company with all the resources and talents to excel in areas of quality, service, and innovation competitiveness. With a deep commitment to social responsibility, we believe our efforts will have a positive impact on our customers in many areas. Please contact us! Our aim is to exceed expectations, to take advantage of new opportunities and to reach out to help our clients achieve success.
