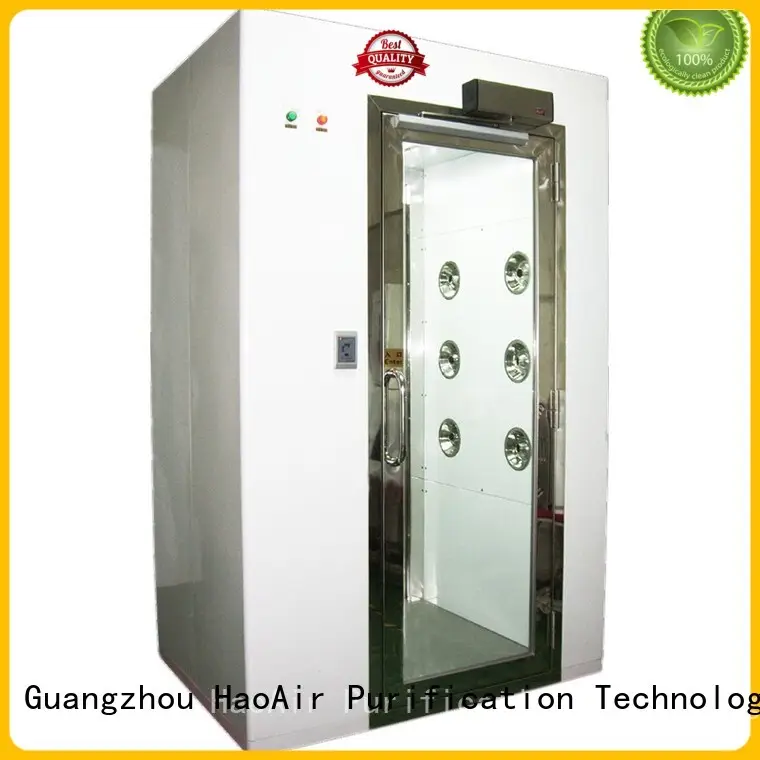

explosion proof shower air channel for large scale semiconductor factory
- HaoAirtech continuously maintains relationships with regular customers and keeps ourselves to new partnerships. In this way, we construct a nationwide marketing network to spread the positive brand culture. Now we enjoy a good reputation in the industry.
1. A wide range of technologies are used in the production of HAOAIRTECH shower air.
2. The successful establishment of shower air shows the leading position in air shower price industry.
3. This product is one of the most important aspects of space design. It will not only add functionality and fashion to space, but it will also add style and personality.
4. When it comes to comfort problems, this product shall be the preferred choice for people. It offers enough support and cushion to the feet.
External Material: steel with powder coated (t=1.0)
Inside Material: stainless steel304 or steel with power coated (t=1.0)
External size: 1300*1000*2180mm
Internal size: 800*930*1910mm
Sus nozzle: 16pcs
Blowing way: 3 side (left, right and top)
Air speed: more than 25m/s
Door: Electric Interlocking in both side.
MODEL | HA-AS1300P1 | HA-AS1300P2 | |
External size (mm) | 1300x1000x2180mm | 1300x2000x2180mm | |
Work zone (mm) | 800x930x1910mm | 800x1930x1910mm | |
Capacity Per cycle | One or Two person | Two or Four person . | |
Material （Option） | 1: External is steel with power coated, Internal is SUS304(T=1.0/1.2/1.5mm) | ||
Control system | 1: Control system with LED display for the shower time. | ||
The power of fan | 380V/50HZ/0.75KW | 380V/50HZ/0.75KW | |
Air flow of fan(m3/h) | 1500 | 1500 | |
Fan run (r/min) | 2800 | 2800 | |
Nozzle in stain less steel | 16 pcs | 32pcs | |
Wind speed(m/s) | >25m/s | ||
Noise level(dB) | <75dB | ||
HEPA FILTER | Size(mm) | 630X630X80mm | 630X630X80mm |
Efficiency (%) | 99.995% @ 0.3um mini-pleats HEPA Air Filter | ||
Air velocity | 1000(m3/h) | ||
Initial resistance(pa) | <180pa | ||
Pre-filter | Size(mm) | 775x380x17 | 775x380x17 |
Efficiency (%) | 75% @ 0.5um | 75% @ 0.5um | |
G3 | G3 | ||
resistance(pa) | <30 Pa | <30 Pa | |
parameter | Power supply | 380v/50HZ 3P | 380v/50HZ 3P |
Net power(kw) | 3 kw | 4.5 kw | |
packing size (mm) | 1400x1200x2280mm | 1400x2200x2280mm | |
Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
Weight | 330kgs | 660kgs | |
Illustrate
1: Control Board 2: SUS Nozzle 3: Infrared Indicator 4: Emergency switch 5: Working light 6:Glass window 7: HEPA air filter 8: Blower 9: Per-filter (H13 99.995%@0.3um) 10: Door closer 11: Purification light
Application
The cargo air shower is one of the goods buffer passages that enter the clean room. It can minimize the pollution caused by commodity or goods entering and out of the dust free room. The equipment for showering the goods is commonly known as the cargo shower room;. The cargo air shower is part of the cargo passage. It has been applied in many fields, such as food and beverage, biochemistry, precision instrument, electronic, photoelectric, microelectronics, fiber optic cable, precision machinery, biopharmaceutical, aeronautics and Astronautics and so on.
/ Certificated
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
