We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

disposable hepa air filter with flanger for dust colletor hospital 1
disposable hepa air filter with flanger for dust colletor hospital 2
disposable hepa air filter with flanger for dust colletor hospital 3
disposable hepa air filter with flanger for dust colletor hospital 1
disposable hepa air filter with flanger for dust colletor hospital 2
disposable hepa air filter with flanger for dust colletor hospital 3

disposable hepa air filter with flanger for dust colletor hospital

Brand:
HAOAIRTECH
Model number:
HA-HPD
Material:
Aluminum frame
OEM /ODM:
OEM/ODM
Certificated:
SGS
Start port:
HUANGPU,GUANGZHOU
Delivery time:
10 Working days
MOQ:
10sets
Country of Original:
china
Supply ability:
1000sets/per month
Payment term:
T/T IN advance, LC At sight
Application:
HVAC terminal filtration
Inquiry
Company Advantages
1. HAOAIRTECH best hepa air filter is manufactured with high-quality standards. It is tested in terms of leak resistance, lubrication, and chemical corrosion resistance to meet the requirements in the mechanical seal industry. The product creates a high cleanliness working environment
2. Guangzhou HaoAir Purification Technology Co.,Ltd. can provide specialized hepa air filter for which we are widely recognized in the industry. The product creates a clean environment to reduce allergy and asthma symptoms. The product creates a clean environment to reduce allergy and asthma symptoms
3. With accuracy and safety, the product is qualified to use. It has low noise and high mobility

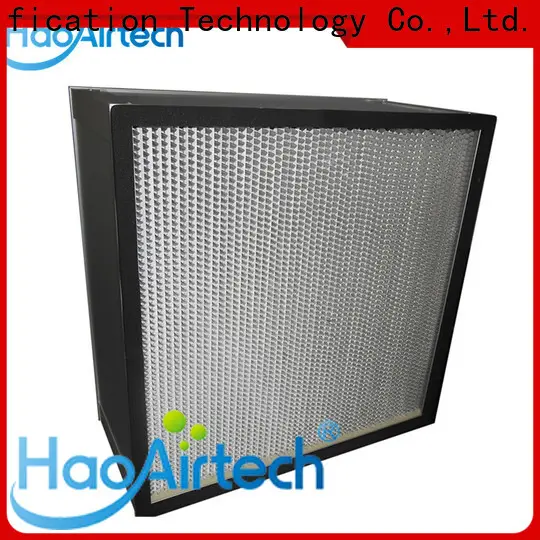

Deep Pleated HEPA Filter


Construction :

       Deep Pleat filters are designed to give the optimum combination of high filtration efficiency and excellent dust holding capacity. They consist of a deep pleat pack of filter media, sealed into either a

corrosion resistant coated mild steel or MDF case.The filter pack is a continuous length of high efficiency

water repellent micro-fibre glass filter media, folded over aluminium or kraft paper separators.

It is then bonded to the case with a polyurethane sealant to give a rigid and robust construction.


Operating Conditions:


Media

Super glass fibre

Frame

AL/GL/MDF frame

Gasket

Neoprene /EVA or PU

Media Spacer

Hot melt

Frame Thickness (Mm)

120/150/220

Clapboard

0.035mm aluminum foil

Efficiency

99.99%-99.999%@0.3um

Max Temperature

80℃

Max Humidity

80%

disposable hepa air filter with flanger for dust colletor hospital 4


Products Parameter:

Dimension(mm)
(W*H*D)

Rate Air
Flow
(M3/h)

Media Area
(M2)

Dust Holding
(g)

Rate primary
Resistance(Pa)
(H13-H14)

Finally
Resistance (Pa)

484X484X120

450

4.4

230



220Pa



400-600pa

610X610X120

700

7.1

370

610X915X120

1050

10.6

560

610X1220X120

1400

14.1

740

484X484X150

600

6

320

610X610X150

1000

9.7

510

610X915X150

1500

14.5

770

610X1220X150

2000

19.3

1020

484X484X220

1000

9.8

600

610X610X220

1600

15.8

920

610X915X220

2300

23.7

1340

610X1220X220

3000

31.6

1750

disposable hepa air filter with flanger for dust colletor hospital 5


Company Features
1. best hepa air filter production is carried out in a scientific management mode.
2. We respond to corporate social responsibility actively. Sometimes we will participate in charitable giving, do voluntary work for the communities, or help the society in post-disaster reconstruction. Inquire now!
