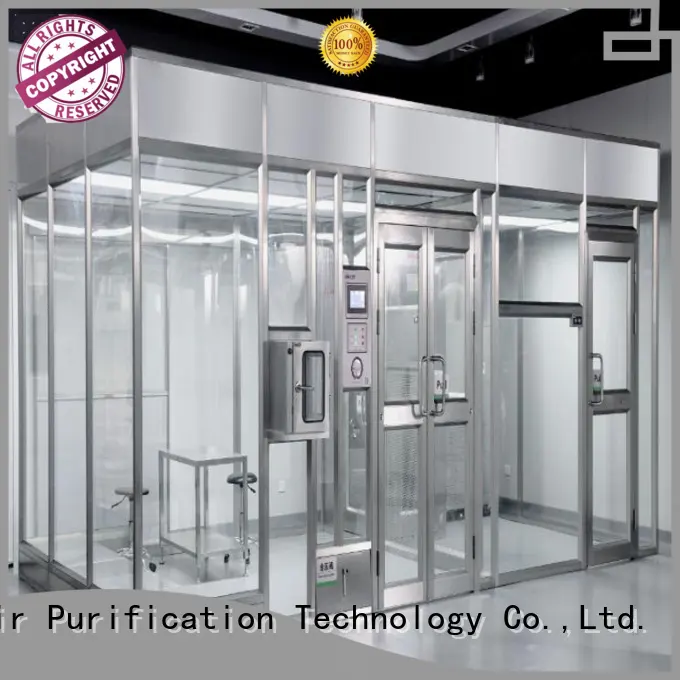

Custom semiconductor Modular Cleanroom hard HAOAIRTECH
1. The newly launched products by Guangzhou HaoAir Purification Technology Co.,Ltd. were all completed by the internationally renowned design company. The product dedicates to keeping a cleanliness class of 10000-300000
2. All relative certificates to guarantee quality will be provided by Guangzhou HaoAir Purification Technology Co.,Ltd.. The product will greatly improve the quality of factory-made products
3. Our unique planning and management framework provides you with the highest probability and fastest route to successful product launch of Modular Cleanroom. It highly conforms to the dustless workshop management standard
4. The product can withstand high temperature. Due to its modular clean room manufacturers, softwall cleanroom,modular clean room has been widely used in many applications such as softwall clean room.
5. The product can increase the rate of finished products. Modular Cleanroom,clean shed reaches the advanced level of the industry.
Fan filter unit with HEPA filter in 99.995%@0.3um
Control System Function :
A: Control the power on/off
B: control the fan filter unit air speed UP/Down
C: Control working area purification light
D: Control the UV light in working area
E: Monitor differential gauge so that replacment HEPA filter in time.
Material : stainless steel 304 or steel with milk color powder coated
perssure Relief valve one set.
Item | Hard wall modular cleanroom | |
Purification rank | Class to class 100.000 | |
Dimension L*W*H | According client request | |
Fan filter unit | Dimension | 2x2,2x4,4x4 optional |
Structural material | Stainless steel, aluminum alloy, AI-Zn plate | |
Power supply | 220V/50HZ AC | |
Mini-pleats HEPA /ULPA Air filter | ||
Frame material | Aluminum alloy/stainless steel201/304 | |
Wall material | Acrylic /sandwich panel/anti-static acrylic | |
Ceiling | Aluminium –plastic panel , sandwich panel | |
Air conditioner | Constant temperature air conditioning Or Constant temperature and humidity air conditioning | |
Lighting | LED light or T5 (Optional ) | |
air shower | Optional | |
Pass box | Optional | |
Air flow floor | Optional | |
Introduce:
Hardwall clean booth frame material have two choose:
A: Stainless steel 304 : it can resist corrosion and have strong support
B: aluminum alloy : easy assembly , standard accessories .
Ceiling: aluminium-plastic material is light at weight, easy to install, Sandwich board ceiling in ivory white color have excellent thermal insulation property, More high requirement for large are temperature and humidity so it is best choice for cleanroom
Fan filter unit: Adopted excellent energy –saving Centrifugal fan with lower noise and less energy consumption .
Wall: the anti-static acrylic sheet can may lead the surface static electricity to the underground to keep the surface from absorbing dust or fiber.
Control system: we can adopted the PLC control system for control the fan filter unit .this can catch the wind speed , differential pressure , temperature and humidity of laminar flow booth
Application : E-Cigarette , LCM, CMOS Camera Module , Touch play , Optical module ,Film ,Biological Pharmacy, Packing Food.
/ Our Service
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
