cleanroom equipment high quality for electronics industry HAOAIRTECH

Company Advantages
1. The production equipment of HAOAIRTECH clean room equipment is constantly updated in recent years, including automatic inspection machine, trimming machine, spring loading and packing machine.
2. The product has passed international quality certification to ensure high quality products.
3. The quality guarantee of this product can stand all kinds of strict inspection.
4. Guangzhou HaoAir Purification Technology Co.,Ltd. will continue to upgrade its management system and accelerate the process of building the HAOAIRTECH brand.
5. cleanroom equipment is manufactured according to the requirement of accreditation of clean room equipment.

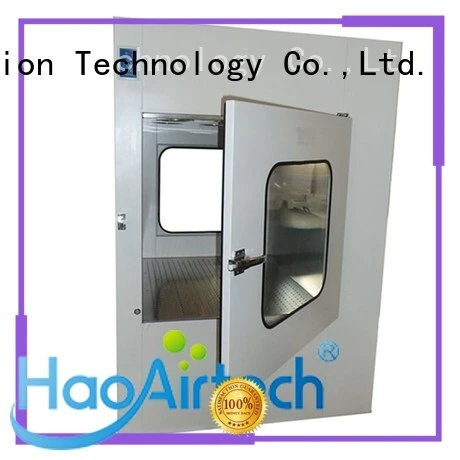

750W Air Shower Pass Box Embedded Lamps With Arc Design GMP Standard

Introduction

The air shower pass box is designed according to the type of the clean room air shower .

And it is also called purification transfer box, air-shower transfer cabinet or air-shower pass box.

In order to reduce the large amount of dust particles caused by goods entering and leaving ,the fan quickly blows the air out through the Initial and High Efficiency Filters and turns it into clean air.

The clean air is sprayed by stainless steel nozzle, and the airflow velocity is over 20m/s. It is possible to remove the dust particles attached to the surface of the object quickly and effectively.

Characteristics

1. Adopt a circular corner that is more suitable for the clean room principle.

2. The outer wall is sprayed with high quality cold rolled steel plate.

3. Stainless steel plate is used on the working table of short distance pass box , which is smooth, and wear-resistant.

4. The working table of long-distance pass box is equipped with powerless drum, which makes the delivery of goods easy and convenient.

5. Both side doors are equipped with mechanical or electronic interlocking devices to ensure that both side doors cannot be opened at the same time.

6.The air velocity of the tuyere outlet is over 20 m/s.

7.High efficiency filter with partition is adopted, the filtration efficiency is 99.99%, ensuring the purification level.

8.Using EVA sealing material, high sealing performance.

9. Imported electronic components, reliable performance.

Products Parameter:

Customer's design is available.

MODEL	HA-APB500	HA-APB600			HA-APB700
External size (mm) (W*D*H)	850x500x1350mm	950x600x1450mm			1090x750x1600mm
Work zone (mm) (W*D*H)	500x500x500mm	600x600x600mm			750x750x750mm
Nozzle	4 PCS	4PCS			6 PCS
Air speed	18-25m/s
Material (Option)	1: Entirety Sus304.(T=1.2/1.0mm) 2: Entirety sus201. (T=1.2/1.0mm) 3:External is steel with power coated, Internal is SUS304(T=1.2/1.0mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.0mm)
Per-filter	525x275x17mm			560x275x17mm		560x275x17mm
	G3
HEPA filter	484x484x69mm			630x630x69mm		630x630x69mm
	99.99%@0.3um H13
Optional accessories	1: UV light. 2: Interphone 3:Differential pressure gauge 4: Roller
Power supply	0.75KW 380V/50HZ
packing size (mm)	1050x780x1600mm		1100x880x1700mm		1240x1030x1850mm
Packing material	Standard Export Poly wood Packing(Fumigant free material)

Our factory:

Company Features
1. Integrating with advanced machine and world-class technology, HAOAIRTECH always develops unique cleanroom equipment.
2. Guangzhou HaoAir Purification Technology Co.,Ltd.'s designers have a deep understanding of cleanroom equipment industry.
3. Guangzhou HaoAir Purification Technology Co.,Ltd.'s goal is to gradually develop from a small industry to a large industry. Check it! Guangzhou HaoAir Purification Technology Co.,Ltd. aims to supply sound services for full satisfaction of customers. Check it! Providing you with the highest quality service is Guangzhou HaoAir Purification Technology Co.,Ltd.'s commitment. Check it!
