capsule softwall modular clean room cost vertical laminar flow booth online

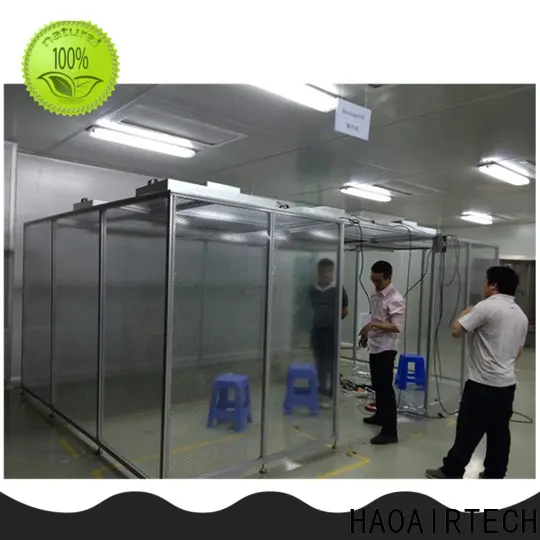

Class1000 Portable Softwall CleanRoom Booth
Applications:
Food industry, aerospace, life sciences, biotechnology, medical devices, plastic injection module, electronics assembly or hospital pharmacy
Operating Features:
1: The ceiling enables flexible placement of fan filter unit, the empty bays cover by powder coated steel panels.
2: the construction utilizing full welded, reinforced, steel tubular sections. The frame is finished with an abrasion-resistance oven-baked powder coat, it is free-standing not require any suspending ceiling supports
3: the PVC anti-static curtain door allowing for easy passage of material and personnel in and out of the clean area. The curtain terminated at a specific distance above the floor to allow for exhaust of clean air out of the clean room.
4: Control box can rapid start up the fan filter unit and lighting.
5: Fan filter unit is the energy efficient external rotor motor design reduces operating costs and has extremely low noise and vibration levels, improving the working conditions in the clean room.
6: the high quality mini-pleats HEPA filter utilizing an improved mini-pleated separation technique to maximize surface area improves efficiency and extends the filter life.
Product Specification:
| MODEL | HA-LFB2000 | HA-LFB3000 | HA-LFB4000 | HA-LFB5000 |
Ex size (mm) (W*D*H) | 2000X2000X2596 | 3000X3000X2596 | 4000X4000X2596 | 5000X5000X2596 |
| In size (mm) | 1900x1900x2205 | 2900x2900x2205 | 3900x3900x2205 | 4900x4900x2205 |
| Purification rank | Class10-300,000(FS209E USA) | |||
| HEPA filter | Efficiency : 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS) | |||
| Pre-filter | Efficiency : 85% @ 5um | |||
| Control system | PC control system / promised speed by control box | |||
| Pressure Gauge | American Dywer pressure | |||
| Noise | <50-55 dB (test point distance is 1m) | |||
Air velocity (m3/h) | 0.2-0.5m/s Adjustable (test point distance is 30cm) | |||
| Frame material | stainless steel/steel with power coated/Cast aluminum profile | |||
| Wall frame | Tempered glass / PVC anti-static curtain (option) | |||
| Fan | EBM Fan /Taiwan fan/ Domestic fan (option) | |||
| Power suppler | AC110/220v 50HZ/60HZ | |||
Basic Info:
| Product Name | Softwall cleanroom/Softwall Modular Cleanrooms/Soft Wall Cleanroom |
| Brand | OEM/ODM |
| Material | SUS304,SUS201,SS304, Cold rolled plate |
| Size | Customized |
| MOQ | 1 SET |
| Delivery Time | 7-15 working days |
| Shipping Port | Guangzhou, Shenzhen, Shanghai |
| Warranty | 2 years |
| Packing | Polywood packing |
| Payment | T/T,L/C, West Union, D/P, Cash |
