We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

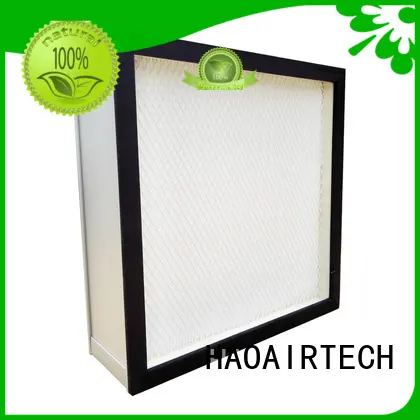

bank aluminum seal HAOAIRTECH Brand best hepa air filter manufacture
1. The product prevents airborne particles and microbes from entrance. Clients give us feedback about quality and service＆suggestions, then we will improve it and do it better in the future orders.
2. With high-level technicians support, HAOAIRTECH has developed high-performance hepa filter manufacturers. The product can maintain high air quality of the factory
3. hepa air filter are recognized for their excellent properties such as best hepa air filter. The product can be used to save time for cleaning and vacuuming
4. HaoAir Purification has established strategic partnerships with many giants in custom hepa filter field. It has low noise and high mobility
It is patent technology to ensure the V type passage in low resistance.
Neoprene /EVA or PU gasket prevent the air leaking in operation.
Extrude and anodized aluminum frame in 50mm, 69mm, 80mm, 90mm for choose.
While color metal screen to protect the filtration media without any damage.
Light weight and easy to install
Adopting the laser to scan the filter one by one ( MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.95%-99.995%@0.3um
Applied to the terminal filtration of the air-condition filtration system
Media | Super glass fibre |
Frame | AL/GL/SUS201/304 frame |
Gasket | Neoprene /EVA or PU |
Media spacer | Hot melt |
Frame thickness (mm) | 46/50/69/80/90/96/120 |
Screen | Metal screen |
Efficiency | >99.999%@0.3um |
Max Temperature | 70℃ |
Max Humidity | 100% |
Dimension(mm) | Rate Air Flow | Media Area | Dust Holding | Rate primary | Finally |
320X320X50 | 200 | 1.99 | 120 |
H13 :<200Pa |
400-600pa |
484X484X50 | 450 | 4.51 | 270 | ||
610X610X50 | 700 | 7.13 | 430 | ||
915X610X50 | 1000 | 10.58 | 650 | ||
1170X570X50 | 1200 | 12.57 | 750 | ||
1220X610X50 | 1350 | 14.04 | 850 | ||
320X320X69 | 250 | 2.89 | 180 | ||
484X484X69 | 600 | 6.55 | 400 | ||
610X610X69 | 1000 | 10.37 | 620 | ||
915X610X69 | 1500 | 15.39 | 920 | ||
1170X570X69 | 1800 | 18.28 | 1100 | ||
1220X610X69 | 2000 | 20.41 | 1230 | ||
484X484X96 | 1000 | 10.24 | 620 | ||
610X610X96 | 1500 | 16.2 | 980 | ||
915X610X96 | 2300 | 24.01 | 1450 | ||
1170X570X96 | 2800 | 28.56 | 1720 | ||
1220X610X96 | 3100 | 31.89 | 1920 |
Application
Mini-pleats HEPA air filter suitable for hospital, electronic industry ,food,Pharmaceutical , bioengineering,precision instrument, electron semiconductors and dust-free room, national defense,aerospace field, fan filter unit, HEPA unit , air shower, dynamic pass box, dispensing booth ,softwall cleanroom, laminar flow booth and so on .
Our Service
1: 100% scann air leaking test for each Mini-PleatsHEPA air flter, test report accompany all of
HEPA air filter.
2: 2 pcs in one carton .each air filter warp by PE Bag .
3: Small order is polywood packing so that we can send out by sea in LCL.
4: If order amount more than 20000USD, We accept the 100% LC at sight against with
document.
5: Free sample possible for you confirmation of quality .
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is the leading manufacturer of top hepa filter manufacturers in the global market.
2. Our good quality hepa air filter is made by best hepa air filter.
3. Guangzhou HaoAir Purification Technology Co.,Ltd. adheres to the service theory of hvac hepa filter. Ask!
