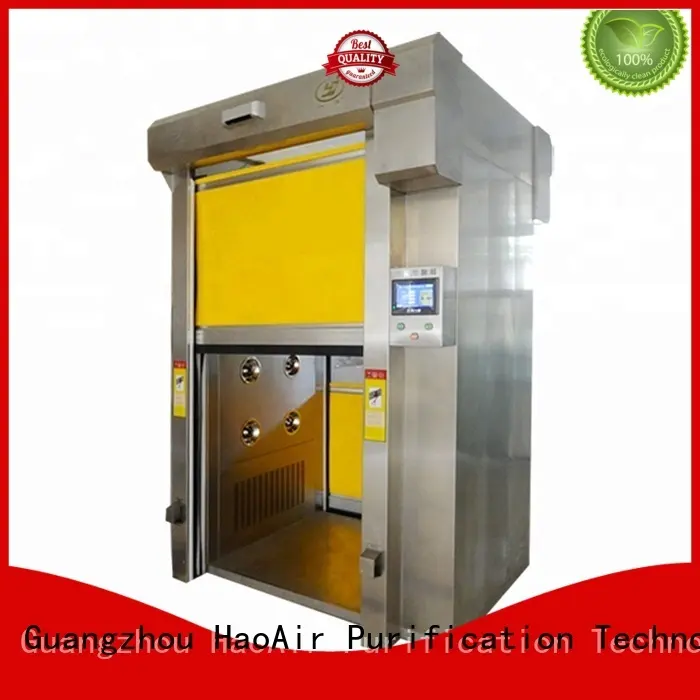

anti static air shower with stainless steel for large scale semiconductor factory

Company Advantages
1. Being rich in its unique design, air shower has received much more fame from customers at home and abroad.
2. We fully make use of the cutting edge technology to achieve high-quality product.
3. The product is accredited to several recognized standards, such as ISO quality standard.
4. The product acts flexibly to the changing working requirements. People can change its operation modes to meet specific needs.

 Introduction:

The fast rolling shutter door air shower can be produced with the maximum dimension of 6m in width and 14m in height. The opening and closing speed of the door ranges from 0.6 to 2.0m/s. The speed can be set when the product is installed. From the bottom to the top, the product only needs about 2 seconds. It is 20 times faster than the electric rolling gate. The elastic PVC base fabric gas seal is installed at the bottom of the product. It can link with various uneven grounds tightly. The gas seal is filled with cushioning material for enhancing the durability. The unique double-layer brush is adopted by the door post for better tightness.

Fast-rolling Door Air Shower General Features:

1.Photoelectric sensor, automatic blow.
2.Electronically interlocked with double stainless door.
3.Stainless nozzles.
4.Auto system.
5.With Auto, Stop, Manual, Emergency Stop function keys.
6.An Emergency Stop push button: will override the operating cycle to release the door locks immediately.
7. Custom sizes are possible.

Fast-rolling Door Air Shower Applications:

As clean room equipment,air shower installed in the clean room entrance and used to remove the dust on personnel or goods entering through it, Automatic Blowing Air Shower, which is composed of case, fan(s), filter(s), nozzles and electric control system, is photoelectrically controlled, electronically interlocked and automatic blowing.
The materials for case can be chosen from all cold rolled steel plate with powder coated, stainless steel inside and cold rolled steel plate with powder coated outside , and all stainless steel (SS201 or SS304; thickness: 1.0 mm or 1.2 mm).
The air shower time is adjustable from 1-99 seconds, compact and sound in structure. An air shower passage can be made up of several air showers.

The air shower is approval by CE and RoHS certificate.
Customer’s design is available.

Fast-rolling Door Air Shower Specification:

Fast-rolling Door Air Shower HA-AS2300P Series
Model		HA-AS2300P1	HA-AS2300P2	HA-AS2300P3
Outer Si(mm) (WXDXH)		2300x1000x2300	2300x2000x2300	2300x3000x2300
Inner Size(mm)(WXDXH)		1500x900x2000	1500x1900x2000	1500x2900x2000
Cargo per cycle		Small Forklift	Standard Forklift	Big Forklift
Air shower duration		Factory set at 15 seconds (0-99 seconds adjustable)
Material		Coldrolled Steel with Baked Painting or Stainless steel 304/316
Fan consumption		750WX2sets	750WX4sets	750WX6sets
Air flow of fan(m3/h)		1300m3/h
Fan run (r/min)		2800r/min
Nozzle in stain less steel		18 pcs	36 pcs	54 pcs
Wind speed(m/s)		>25m/s
Noise level(dB)		<75dB
LED Fluorescent Lamp		20wx1	20wx2	20wx3
HEPA Filter	Size(mm)	595X595X80mm(Mini-pleats HEPA filter)
	Efficiency	99.995%@0.3um
	Resistance	<180pa
Pre-filter	Size(mm)	785x385x21mm
	Efficiency	75% @ 5um
	Resistance	<30 Pa
Power supply		380V/50Hz or 6OHz

Fast-rolling Door Air Shower Configuration:

Fast-rolling Door Air Shower Color Reference:
