We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

air filter hepa for electronic industry HAOAIRTECH 1
air filter hepa for electronic industry HAOAIRTECH 2
air filter hepa for electronic industry HAOAIRTECH 3
air filter hepa for electronic industry HAOAIRTECH 4
air filter hepa for electronic industry HAOAIRTECH 5
air filter hepa for electronic industry HAOAIRTECH 6
air filter hepa for electronic industry HAOAIRTECH 7
air filter hepa for electronic industry HAOAIRTECH 8
air filter hepa for electronic industry HAOAIRTECH 9
air filter hepa for electronic industry HAOAIRTECH 1
air filter hepa for electronic industry HAOAIRTECH 2
air filter hepa for electronic industry HAOAIRTECH 3
air filter hepa for electronic industry HAOAIRTECH 4
air filter hepa for electronic industry HAOAIRTECH 5
air filter hepa for electronic industry HAOAIRTECH 6
air filter hepa for electronic industry HAOAIRTECH 7
air filter hepa for electronic industry HAOAIRTECH 8
air filter hepa for electronic industry HAOAIRTECH 9

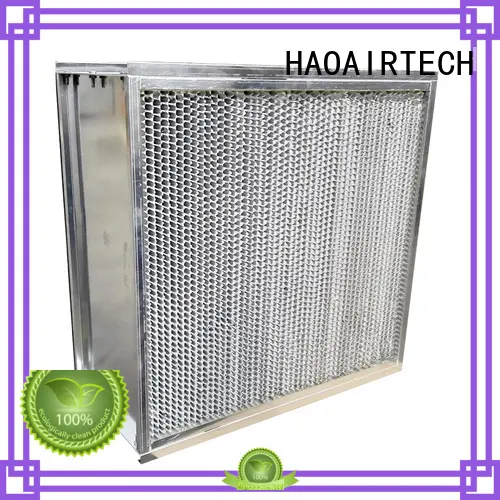

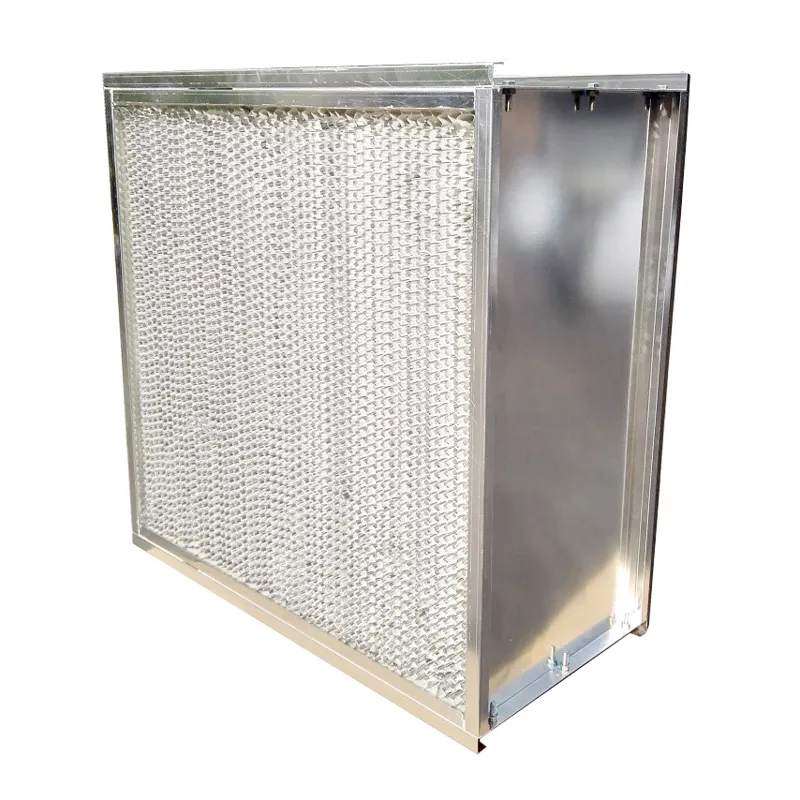

air filter hepa for electronic industry HAOAIRTECH

Brand:
HAOAIRTECH
Model number:
HA-HEPA-A Series
OEM /ODM:
Yes
Certificated:
Rosh
Start port:
Guangzhou
Delivery time:
8 working days after we get the deposit.
MOQ:
10sets
Country of Original:
China
Supply ability:
set/one month
Payment term:
T/T , L/C , Western union
Application:
Worker in Clean room
Inquiry
Enterprise Strength
  • HaoAir has excellent customer service management team and professional customer service personnel. We can provide comprehensive, thoughtful, and timely services for customers.
Company Advantages
1. 0.3micron hepa filter make air filter hepa practically and easy to operate.
2. The product can stand up strong disinfectants. Its specially coated metal materials make it effectively withstand disinfection environments.
3. The offered product is immensely appreciated among the customer-base in the industry.



Characteristics
The carve box folds can prevent the breakage of the filter material.
Neoprene /EVA gasket prevent the air leaking in operation.
Extrude and anodized aluminum frame in 120mm, 150mm, 220mm for choose.
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um
air filter hepa for electronic industry HAOAIRTECH 10



/ Operating Conditions


 Media

Super glass fibre

 Frame

AL/GL/MDF frame

Gasket

Neoprene /EVA or PU

Media    spacer

Hot melt

Frame thickness    (mm)

120/150/220

Clapboard

0.035mm aluminum foil

Efficiency

99.99%-99.999%@0.3um

Max    Temperature

80℃

Max    Humidity

80%



/ Products Parameter


Dimension(mm)
     (W*H*D)

Rate    Air Flow
  (m3/h)

Media Area
(m2)

Dust    Holding (g)

Rate primary
Resistance(Pa)(H13-H14)

Finally
Resistance   (Pa)

484X484X120

450

4.4

230





220Pa





400-600pa

610X610X120

700

7.1

370

610X915X120

1050

10.6

560

610X1220X120

1400

14.1

740

484X484X150

600

6

320

610X610X150

1000

9.7

510

610X915X150

1500

14.5

770

610X1220X150

2000

19.3

1020

484X484X220

1000

9.8

600

610X610X220

1600

15.8

920

610X915X220

2300

23.7

1340

610X1220X220

3000

31.6

1750



/ Primary Resistance & Face Velocity Diagram


air filter hepa for electronic industry HAOAIRTECH 11



/ Product Details



part.1

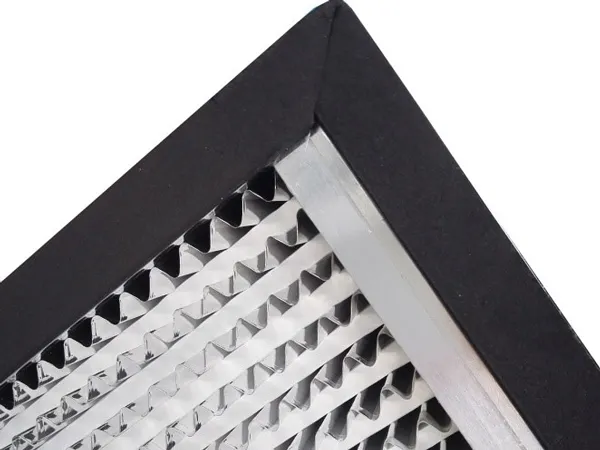

EVA Gasket for Heap air filter with flange
air filter hepa for electronic industry HAOAIRTECH 12

part.2

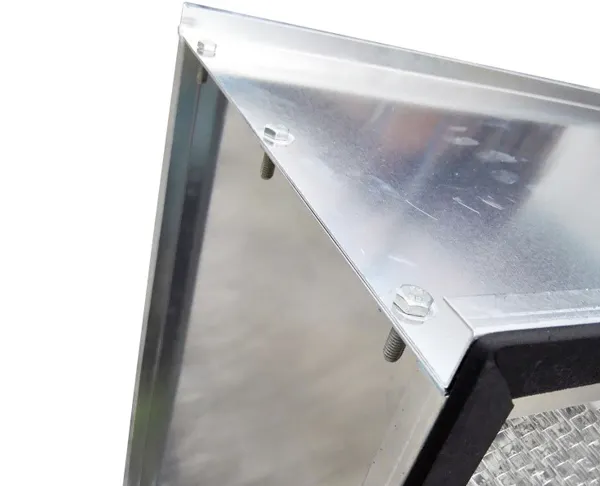

Outwardly Frame for heap air filter
air filter hepa for electronic industry HAOAIRTECH 13

part.3

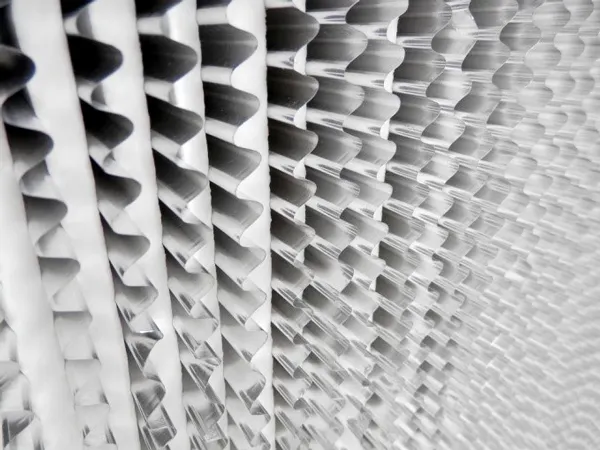

Deep Pleats Media Compact
air filter hepa for electronic industry HAOAIRTECH 14



/ package


air filter hepa for electronic industry HAOAIRTECH 15
air filter hepa for electronic industry HAOAIRTECH 16
air filter hepa for electronic industry HAOAIRTECH 17




Company Features
1. HAOAIRTECH has made great achievements in producing high quality air filter hepa .
2. We have brought together exceptional sales teams. They are quite professional in offering product solutions to clients with their abundant knowledge of product information as well as market purchasing tendency.
3. By cause of accurate market position, HAOAIRTECH dedicates itself into the design and sales of air purifiers hepa filter . Inquire now! Observing business ethics is the cornerstone of HAOAIRTECH. Inquire now! Complying with the tenet of h12 hepa filter helps HAOAIRTECH grow more in this market. Inquire now! Always adhering to a high degree of social responsibility and corporate philosophy of h13 hepa filter is our tenet. Inquire now!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
