Company Advantages1. With 0.3micron hepa filter framework, ulpa
air filter is characterized by hepa filter replacements . With premium quality, the product is also fit for working under difficult operating conditions
2. There are no sharp corners or edges on this product, hence, people have no worry that it will cause harm to them if it accidentally falls down. The product creates a clean environment to reduce allergy and asthma symptoms
3. Its quality will be fully tested by our experienced staff before it gets loaded. It is certified by SGS corporation and reaches RoHS standard
4. The product is in high demand among customers in the industry for its great benefits. The product assures an extremely high-efficient manufacturing process
5. Several tests were performed at each stage of production to ensure consistency in product quality. The product is of high purification rank
Characteristics

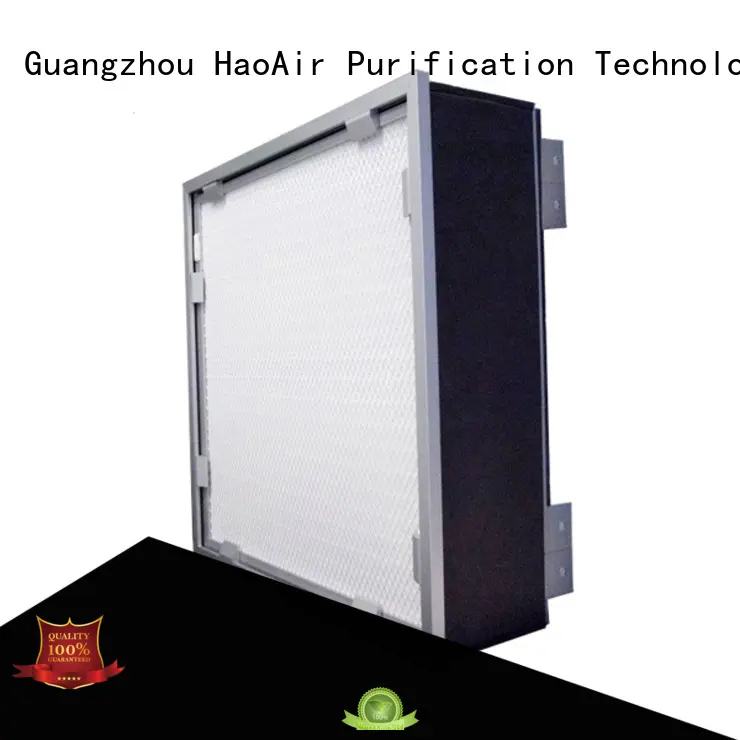

The Replaceable HEPA filter with hood cabinet are designed in closed integration which prevent the air leakage. Meanwhile the heap filter replaceable from cleanroom inside.
This filter light weight and easy maintain
Air duct is galvanized steel and the diameter is 250mm, 300mm and 350mm for your choose
Control valve for air flow adjust (optional).
The media material is super glass fibre for 0.3um particulate.
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.95%-99.995%@0.3um
/ Operating Conditions
Media | Super glass fibre |
Frame | AL/GL frame |
Gasket | Neoprene /EVA |
Media spacer | Hot melt |
cabinet thickness (mm) | 150/180mm |
Filter frame | 69mm |
Efficiency | 99.99%-99.999%@0.3um |
Max Temperature | 70℃ |
Max Humidity | 100% |
/ Products Parameter
Cabinet size(mm)
(W*H*D) | Filter size(mm)
(W*H*D) | Rate Air Flow
(m3/h) | Media Area
(m2) | Dust Holding
(g) | Rate primary
Resistance
(Pa) | Finally
Resistance
(Pa) | Efficiency |
360X360X180 | 320x320x69 | 264 | 2.93 | 126 |
<220pa |
400-600pa |
H13-H14 |
524X524X180 | 484x484x69 | 600 | 6.61 | 397 |
650X650X180 | 610x610x69 | 1000 | 10.44 | 627 |
670X670X180 | 630x630x69 | 1050 | 11.13 | 668 |
650X955X180 | 610x915x69 | 1500 | 15.42 | 925 |
650x1260x180 | 610x1220x69 | 2000 | 20.40 | 1224 |
670x1300x180 | 630x1260x69 | 2100 | 21.76 | 1306 |
345x345x180 | 305x305x69 | 240 | 2.66 | 160 |
345x650x180 | 305x610x69 | 500 | 5.09 | 305 |
345x955x180 | 305x915x69 | 750 | 7.52 | 450 |
640x640x180 | 600x600x69 | 980 | 10.11 | 607 |
640x1240x180 | 600x1200x69 | 1980 | 19.74 | 1185 |
650x1280x180 | 610x1240x69 | 2050 | 20.74 | 1244 |
524x1008x180 | 484x968x69 | 1250 | 12.85 | 771 |
/ Product Details
part.1
Replaceable HEPA air filter
part.2
Replaceable HEPA air filter
part.3
Mini-Pleats Media Compact
part.4
Air Filter Dust Detection Test
Application
The replaceable HEPA air filter with hood suitable for high and strict working environment such
as surgery, lab, pharmacy , micro-electric ,film production in terminal filtration of the air-condition filtration system
