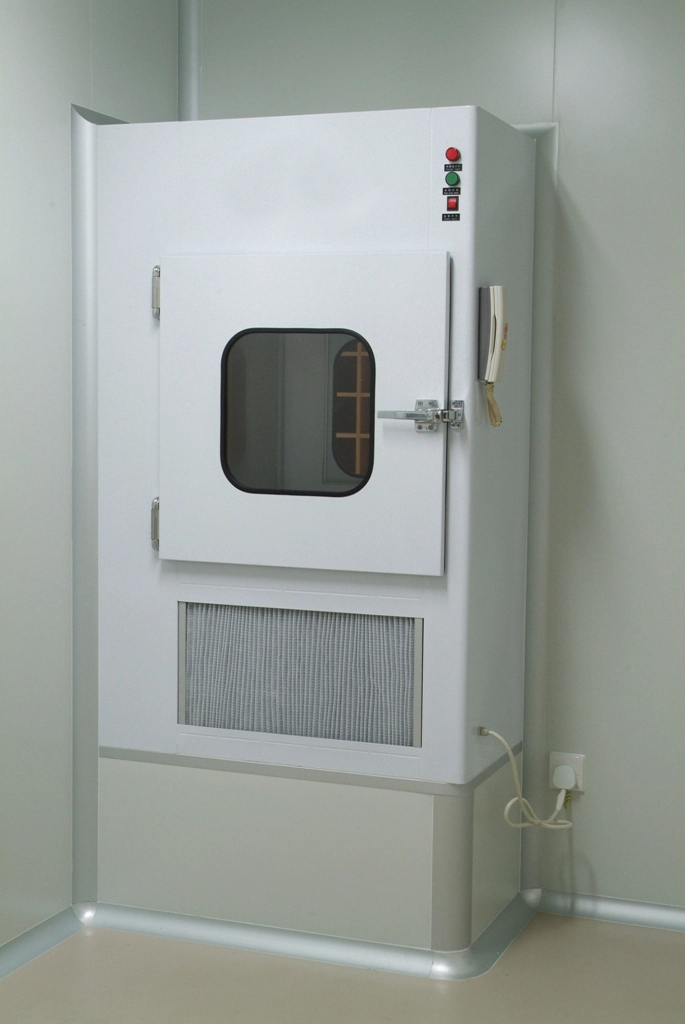

    Stainless Steel 304 Dynamic Pass Box


    Application:

    Pass box is mainly used to separate the air flow into the clean room when pass the material, as far as possible to reduce the dust in case of polluting the environmental. It is installed between the clean room and unclean room, which as the buffer of clean area. This facility is widely used in semiconductor, LCD, photoelectric electron, precision instrument, chemistry, biology medicine, hospital, food and all other places where needing cleaning air.


    Characteristics:
    ●It has interlock function, make sure the both sides door can not open at the same time. Therefore, it can avoid the air of unclean polluting the clean environment.
    ●It has promoting function and there is a light and buzzer on both sides. When pass the material, it can prompt the material has passed and use condition.
    ●It has interphone function, can add interphone as customized.
    ●Pass box with air shower has shower function, which can purify the dust of material as soon as possible to reduce pollution of environment when pass the material.
    ●May customize according to user’s specific requirements, such as illumination system, sterilization light, electrostatic eliminator and so on.


    Products Parameter:

    MODEL

    KEL-ASPB600

    External size (mm)
    (W*D*H)

    940x600x1450mm

    Work zone (mm)
    (W*D*H)

    600x600x600mm

    Nozzle

    4 PCS

    Air speed

    18-25m/s

    Per-filter

    425x275x17mm

    G3

    HEPA filter

    360x360x69mm

    99.99%@0.3um H13

    Optional accessories

    1: UV light. 2: Interphone 3:Differential pressure gauge 4: Roller

    Power supply

    0.75KW 380V/50HZ

    packing size (mm)

    1050x780x1600mm

    1100x880x1700mm

    1240x1030x1850mm

    Packing material

    Standard Export Poly wood Packing(Fumigant free material)





    Air Shower Pass Box:

    pass box


    Air shower pass box Bottom:




    Air Shower Pass Box Top Nozzle:




    Our advantages:

    •OEM available
    •Factory direct sale
    •Professional service
    •Strict quality control
    •We have 1~2 QC for each step
    •We are supplier of some large supermarkets and famous brands
    •No matter the quality or price,we can either give you the best
    •Make sure the prompt leadtime
    •We have our own raw material factory,carton factory,packing material factory to control every link,and save you the cost from every link
