Vertical Laminar Flow Clean Booth

Vertical Laminar Flow Clean Booth

ntroduce:

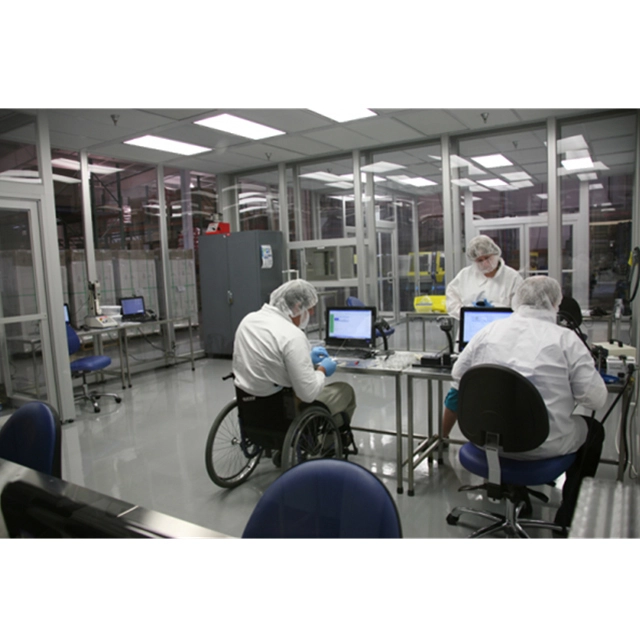

Haoairtech designed this as a portable solution to create a Class 10-100000  vertical laminar flow clean room environment without the high cost and constraints of a hard wall system. It's affordable, reliable, energy efficient and easy to assemble as well as disassemble.

The prefabricated wiring system makes electrical hook-up simple with factory wired components and leg-mounted on/off switches for lights and filters. A single point electrical hook-up or heavy duty line cord (under 15 amps) are provided, which may eliminate the need for an expensive installation.

Product Features:

Purification Rank : Class10-class 10000
Fan filter unit with mini-pleats HEPA filter/ULPA filter( 99.995%@0.3um )

vertical laminar flow Clean Booth Control Box Function:

A: Control the power on/off

B: Control the fan filter unit air speed UP/Down

C: Control working area purification light

D: Control the UV light in working area

E: Monitor differential gauge so that replacement HEPA filter in time.

Material: stainless steel 304 or steel with milk color powder coated

Pressure Relief valve base one request

Products Parameter：

Note:

We have a wide range of configuration available to meet most cleanroom booth standards up to Class 10/ISO Class 4. For Class 10/ISO Class 4 and Class 100/ISO Class 5 cleanliness level, 100% laminar airflow is essential to prevent any deterioration of cleanliness caused by the present of non-laminar airflow. At this cleanliness level, the ceiling must be totally covered by HEPA/ULPA filter and the lighting is usually tear-drop. As the result, all particles come from the personnel , processes and equipment are immediately swept away from the clean area.

Where the ceiling is not fully covered, turbulent zones are present. In this cases, particles introduced or present in the clean area are re-circulated and produce temporary deterioration of the cleanliness level.
