We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

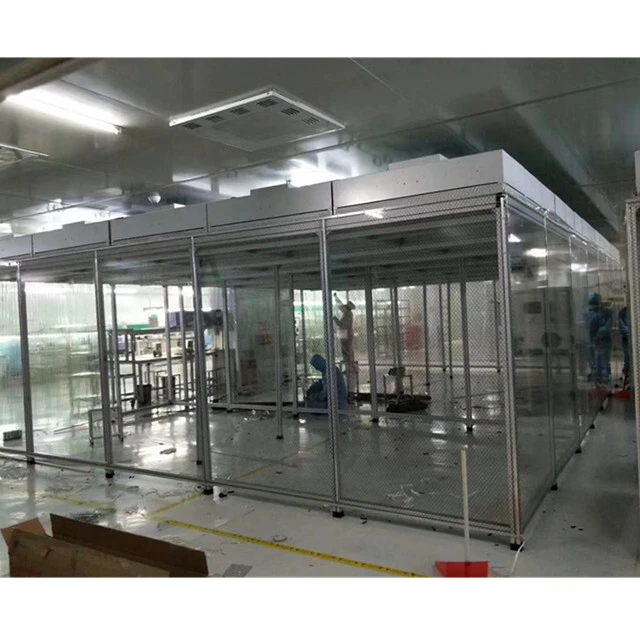

Biology Laboratory Softwall Cleanroom 1
Biology Laboratory Softwall Cleanroom 1

Biology Laboratory Softwall Cleanroom

    oops...!

    no product data.

    Go to homepage
    Product Name
    Laboratory Softwall Cleanroom
    Other Name
    Biology cleanroom
    Guarantee Time
    12 months
    Purificaiton Rank
    ISO7/ISO8
    Dimension
    Customized
    Power Supplier
    220V/50HZ OR 60HZ

    Biology Laboratory Softwall Cleanroom


    Biology Laboratory Softwall Cleanroom 2

            Because no two cleanroom applications are alike, we offer a range of customizable and optional features to give you a laboratory cleanroom that matches your unique requirements.

    Lighting: Single and double module lighting options are available. All options include fully sealed housings to maintain ceiling integrity and protect against particulate and contaminant infiltration.

     Frames are designed to allow for bulb/lamp replacement from room side without contaminating clean areas. Fixtures are UL rated and manufactured in accordance with USDA, FDA, and NSF guidelines.


    Doors & Entryways: Number and placement of doors can be tailored to your access needs. Single or double entry doors are available, with or without safety viewing windows.

    Various heights and widths are available. Other door options include manual sliding doors, automatic rollup doors, and more.


    Windows: Window size, quantity, and placement can be customized to your requirements. Standard windows are 3/16” tempered safety glass; double pane, wire, UV tinted,

    and polycarbonate windows are also available.


    Electrical Options: Factory-installed raceways with pre-wired connections for light switches and 110v outlets can be included in any quantity and location you need.

    All raceways include UL-listed components conforming to National Electric Codes. Other power options are also available.


    Ceiling Grids & Tiles: Numerous standard and specialty grid sizes, finishes, and gaskets are available, as needed. Standard laboratory cleanroom ceiling tiles are 1/2” sheetrock

    core with vinyl facing on one side and sealed edges. Other core and facing materials are available.


    Wall Materials: We offer an array of wall panel options. Cores can be manufactured from expanded polystyrene, isocyanurate, or gypsum. Available finishes include vinyl,

    high pressure laminates, FRP (fiberglass reinforced plastic), painted steel, and conductive or non-conductive painted aluminum.


    Air Showers & Pass-Thru Chambers: To maintain the cleanliness of your laboratory cleanroom when personnel, samples, or equipment must go in and out,

    we offer fully-sealed air showers with 99.97% absolute filters and pass-thru chambers in a variety of sizes and configurations.



    Parameter

    ModelHA-1500HA-2000HA-3000HA-5000
    External Size (W*D*H)1500*2000*2530mm2000*3000*2530mm3000*4000*2530mm5000*5000*2530mm
    HEPA Filters99.999% efficiency at 0.3 um
    Consumption500W800W1000W1600W
    FFU Nos.4 pcs6 pcs12 pcs25 pcs
    Clean LevelISO 5 (Class 100), Class A
    Control Systemcontrol box
    Rectangular Tube MaterialSUS 304 material frame
    Wall MaterialAnti-static dustproof curtain
    BlowerBuilt-in centrifugal blower; speed adjustable
    UV LampEmission of 253.7nanometers, with UV timer
    Air Velocity0.1~0.6m/s, average 0.45m/s
    Noise≤58db
    Power SupplyAC220V±10%, 50/60Hz; 110V±10%, 60Hz
    Gross Weight390Kg670Kg1100Kg2900Kg
    Package Size (W*D*H)

    2110*930*920mm

    2260*660*500mm

    3080*980*1260mm

    3080*660*550mm

    3080*980*1260mm

    3080*980*1260mm

    4080*660*550mm



    4080*980*1260mm

    4080*980*1260mm

    4080*980*1260mm

    1260*660*1260mm

    5080*460*500mm

    Customized design for clean level, size or material is available
