We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

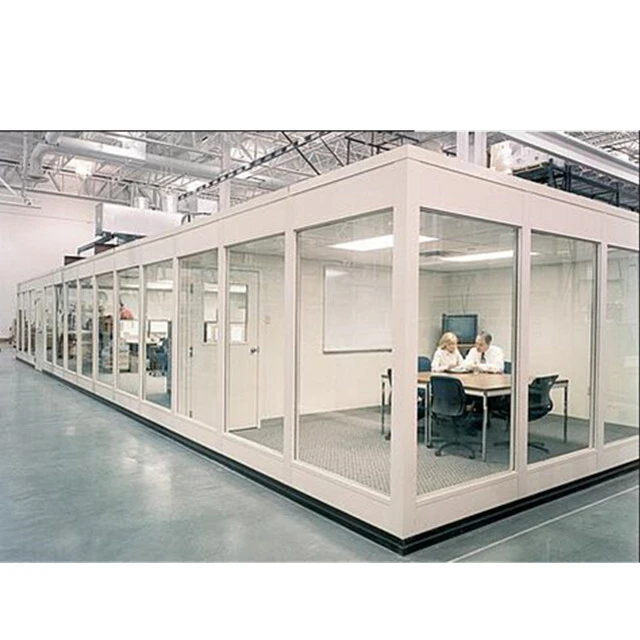

Microelectronics Hardwall Modular Cleanroom 1
Microelectronics Hardwall Modular Cleanroom 1

Microelectronics Hardwall Modular Cleanroom

    oops...!

    no product data.

    Go to homepage
    Product Name
    Microelectronics Cleanroom
    Other Name
    Hardwall cleanroom
    Guarantee Time
    12 months
    Purificaiton Rank
    ISO7/ISO8
    Dimension
    Customized
    Power Supplier
    220V/50HZ OR 60HZ

    Microelectronics Hardwall  Cleanroom


      Microelectronics modular hardwall cleanrooms is probably one of the most intensive manufacturing processes,  not only for its complexity but for the amount of capital invested. Due to the sensitive nature of the products,

     it is critical to construct these modular cleanroom facilities with components which help produce higher product yields.

    Moreover, since the number of operations that have to be carried out exceeds the number of available machines, several of these operations are done at the same work centers or tool stations.


    Maximizing space and housing specialized equipment is ideally suited for a modular cleanroom system. Each haoairtech modular project begins with a careful needs assessment for

     your semiconductor or microelectronics cleanroom. The quality modular cleanroom system is then designed and engineered to specifically fit your application.

    And that application usually requires stringent environmental control of a Class 100 Cleanroom, well within the tolerance levels haoairtech can provide.


    Given its modular office partitions, haoairtechoffers a structural panel that is light weight, non-particulating and easily modified.

    Semiconductor and microelectronics cleanroom systems are designed and constructed to precise standards, labeled and delivered with a

    complete set of CAD drawings to make on-site cleanroom installation quick and convenient.

    Microelectronics Hardwall Modular Cleanroom 2


    Parameter

    ModelHA-1500HA-2000HA-3000HA-5000
    External Size (W*D*H)1500*2000*2530mm2000*3000*2530mm3000*4000*2530mm5000*5000*2530mm
    HEPA Filters99.999% efficiency at 0.3 um
    Consumption500W800W1000W1600W
    FFU Nos.4 pcs6 pcs12 pcs25 pcs
    Clean LevelISO 5 (Class 100), Class A
    Control Systemcontrol box
    Rectangular Tube MaterialSUS 304 material frame
    Wall MaterialAnti-static dustproof curtain
    BlowerBuilt-in centrifugal blower; speed adjustable
    UV LampEmission of 253.7nanometers, with UV timer
    Air Velocity0.1~0.6m/s, average 0.45m/s
    Noise≤58db
    Power SupplyAC220V±10%, 50/60Hz; 110V±10%, 60Hz
    Gross Weight390Kg670Kg1100Kg2900Kg
    Package Size (W*D*H)

    2110*930*920mm

    2260*660*500mm

    3080*980*1260mm

    3080*660*550mm

    3080*980*1260mm

    3080*980*1260mm

    4080*660*550mm



    4080*980*1260mm

    4080*980*1260mm

    4080*980*1260mm

    1260*660*1260mm

    5080*460*500mm

    Customized design for clean level, size or material is available
