v rigid filter high quality for industry HAOAIRTECH

Company Advantages
1. HAOAIRTECH residential air filters has a user-centric and product-centric design.
2. The product is hypoallergenic. The wood materials are specially treated to be free of bacteria and fungi when subjected to high temperatures.
3. The product features frost resistance. Since it can resist freezing or thawing, it won't lose its strength in freezing and become brittle.
4. The versatility of this product allows it to fulfill specific requirements for many industries including automotive, aviation, railroad, shipping, agriculture, petroleum and electrical.

Characteristics:

Dual density media reduces operating cost

Excellent performance in difficult operating conditions

High efficiency low resistance

Rigid metal construction

Deep pleats type water resistance glass fibre media

Turbulent air flow

Supported with aluminum foil clapboard

High temperature and high humidity

Intermittent exposure to water

Efficiency: MERV 14, MERV 13 and MERV 11 .



Operating conditions:

Media	Glass   Fiber
Frame	AL/GL   frame
Clapboard	Aluminum   Foil
Frame thickness (mm)	150/292mm
Screen	Metal   screen
Efficiency	F7/F8
Max Temperature	350 ˚F (177˚C)
Max Humidity	100%





Products Parameter：

Dimension   (mm) (W*H*D)	Rate Air   Flow   (m3/h)	Media   Area    (m2)	Dust   Holding    (g)	Rate   primary Resistance    (Pa)	Finally Resistance      (Pa)	Efficiency
289x594x150	675	4.3	261	<60	250-300	F6
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185
289x594x150	675	4.3	261	<80	300-400	F7
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185
289x594x150	675	4.3	261	<100	300-400	F8
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185



Application:

Commercial buidings, data centers , food and beverage, hospitality , industry , microelectronics

Healthcare , schools and universities ,pharmaceutical .

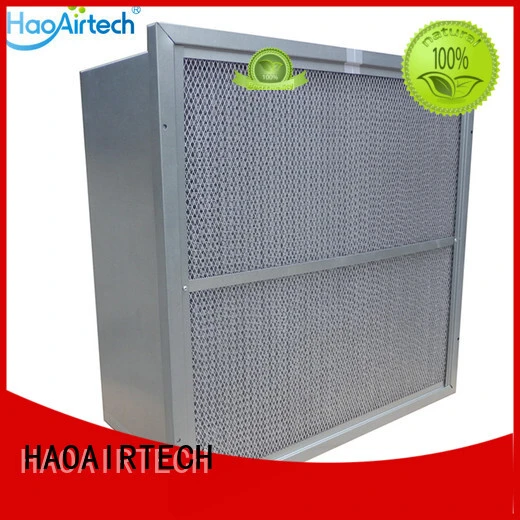

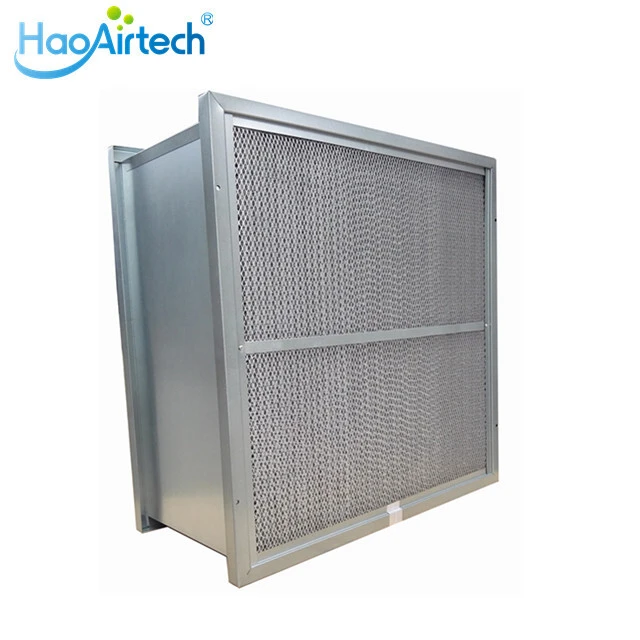

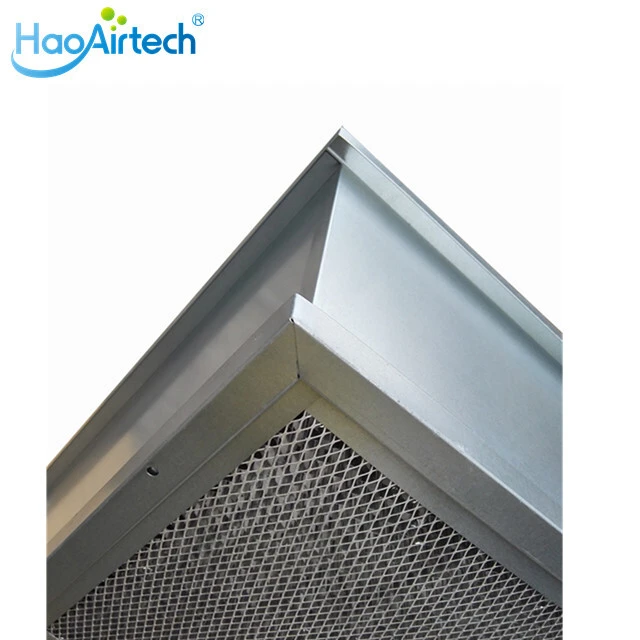

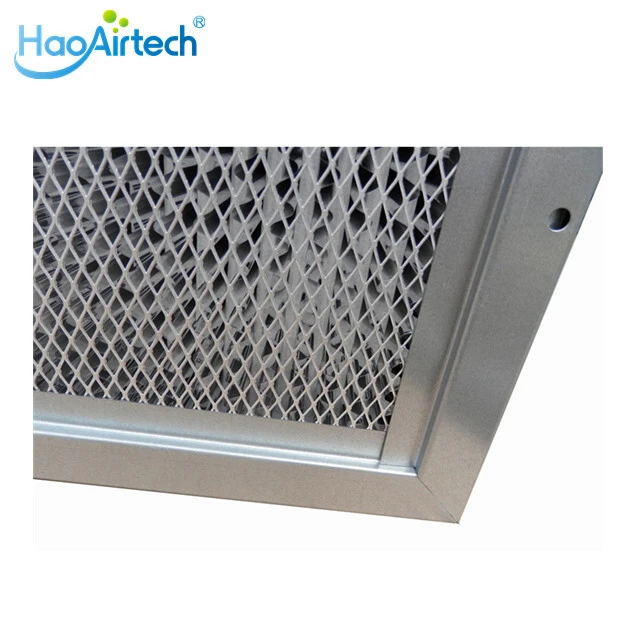

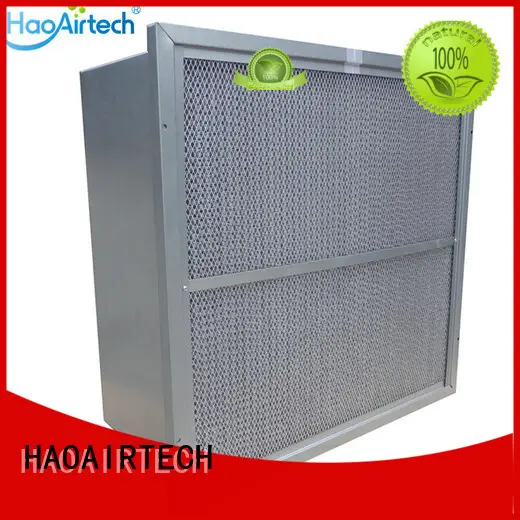

   Picture：

Company Features
1. HAOAIRTECH, as one of the most famous brand in v rigid filter market, has successfully remembered by many people.
2. HAOAIRTECH is a company centering on quality.
3. While undertaking the responsibility of serving customers wholeheartedly, HAOAIRTECH is also putting efforts into manufacturing high-quality rigid cell filter . Get more info! Enthusiastically participating in the task of serving customers and creating value is important for HAOAIRTECH in the future. Get more info!
