We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

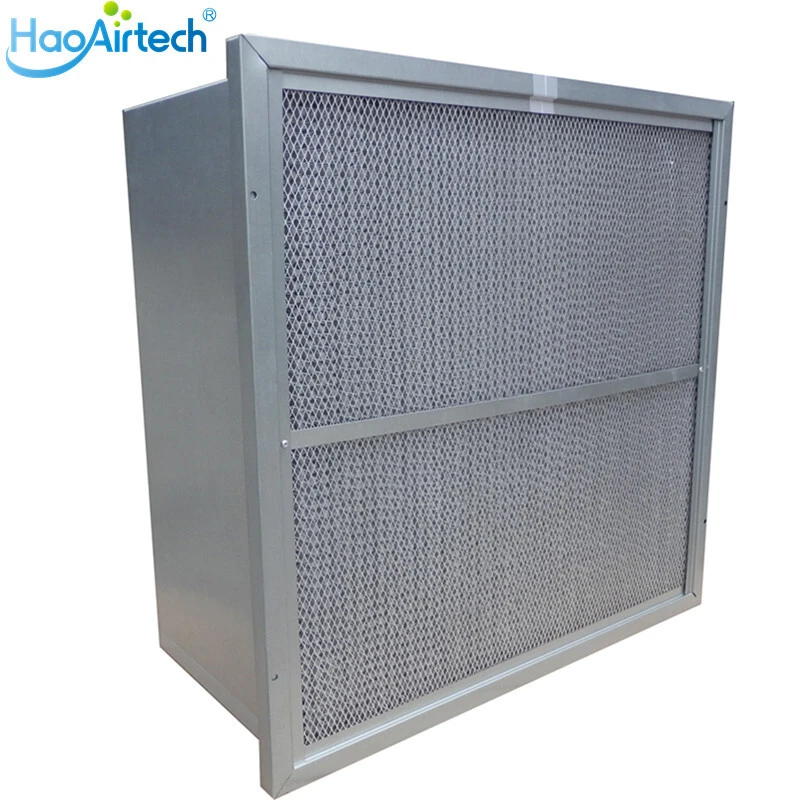

Rigid Box  Ashare Air Filter With GL Interlocker Frame 1
Rigid Box  Ashare Air Filter With GL Interlocker Frame 1

Rigid Box Ashare Air Filter With GL Interlocker Frame

    oops...!

    no product data.

    Go to homepage

    Characteristics:

    Dual density media reduces operating cost

    Excellent performance in difficult operating conditions

    High efficiency low resistance

    Rigid metal construction

    Deep pleats type water resistance glass fibre media

    Turbulent air flow

    Supported with aluminum foil clapboard

    High temperature and high humidity

    Intermittent exposure to water

    Efficiency: MERV 14, MERV 13 and MERV 11 .



    Operating conditions:

     Media

    Glass   Fiber

     Frame

    AL/GL   frame

    Clapboard

    Aluminum   Foil

    Frame thickness (mm)

    150/292mm

    Screen

    Metal   screen

    Efficiency

    F7/F8

    Max Temperature

    350 ˚F (177˚C)

    Max Humidity

    100%





    Products Parameter

     Dimension

      (mm)

    (W*H*D)



      Rate

    Air   Flow

      (m3/h)

    Media   Area

       (m2)

    Dust   Holding

       (g)

    Rate   primary

    Resistance

       (Pa)

     Finally

    Resistance

       (Pa)

    Efficiency

    289x594x150

      675

    4.3

    261



    <60



    250-300

    F6

    594x594x150

      1385

    8.84

    354

    287x594x292

    1490

    9.52

    571

    594x594x292

    3085

    19.7

    1185

    289x594x150

      675

    4.3

    261



    <80



    300-400

    F7

    594x594x150

    1385

    8.84

    354

    287x594x292

    1490

    9.52

    571

    594x594x292

    3085

    19.7

    1185

    289x594x150

    675

    4.3

    261



    <100



    300-400

    F8

    594x594x150

    1385

    8.84

    354

    287x594x292

    1490

    9.52

    571

    594x594x292

    3085

    19.7

    1185



    Application:

    Commercial buidings, data centers , food and beverage, hospitality , industry , microelectronics

    Healthcare , schools and universities ,pharmaceutical .

       Picture:

    Rigid Box  Ashare Air Filter With GL Interlocker Frame 2

    Rigid Box  Ashare Air Filter With GL Interlocker Frame 3

    Rigid Box  Ashare Air Filter With GL Interlocker Frame 4
