ulpa vacuum cleaner hepa filter with one side gasket for electronic industry
- HaoAir insists on combining standardized services with personalized services to meet customers' different needs. This contributes to the brand image building of our company's quality service.
1. The new type of vacuum cleaner hepa filter designed by our engineers is very ingenious and practical.
2. Compared with other products, this product has obvious advantages, longer service life and more stable performance. It has been tested by an authoritative third party.
3. This product has the characteristics of stable performance and good durability.
4. With the increase of customers numbers, this product has a wider application range.
Neoprene /EVA gasket prevent the air leaking in operation。
Extrude and anodized aluminum frame in 120mm, 150mm, 220mm for choose。
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um
Max temperature is 80C
Max humidity is 80%
Introduce

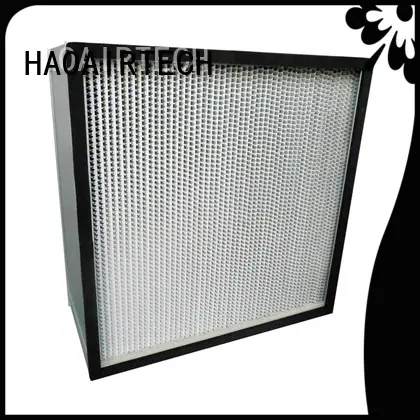

Absolute Heap air filter adopt the special design to keep the space between pleated layers by Clapboard. Corrugated aluminum spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.
Media | Super glass fibre |
Frame | AL/GL/MDF frame |
Gasket | Neoprene /EVA or PU |
Media spacer | Hot melt |
Frame thickness (mm) | 120/150/220 |
Clapboard | 0.035mm aluminum foil |
Efficiency | 99.99%-99.999%@0.3um |
Max Temperature | 80℃ |
Max Humidity | 80% |
Dimension(mm) | Rate Air Flow | Media Area | Dust Holding | Rate primary Resistance(Pa) | Finally Resistance (Pa) |
484X484X120 | 450 | 4.4 | 230 |
220Pa |
400-600pa |
610X610X120 | 700 | 7.1 | 370 | ||
610X915X120 | 1050 | 10.6 | 560 | ||
610X1220X120 | 1400 | 14.1 | 740 | ||
484X484X150 | 600 | 6 | 320 | ||
610X610X150 | 1000 | 9.7 | 510 | ||
610X915X150 | 1500 | 14.5 | 770 | ||
610X1220X150 | 2000 | 19.3 | 1020 | ||
484X484X220 | 1000 | 9.8 | 600 | ||
610X610X220 | 1600 | 15.8 | 920 | ||
610X915X220 | 2300 | 23.7 | 1340 | ||
610X1220X220 | 3000 | 31.6 | 1750 |
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. has long been focused on the R&D and manufacture of vacuum cleaner hepa filter.
2. We have expanded our business across China, while growing internationally to Europe, Asia, the Middle East, and North America. This allows us to make more profit around the world.
3. Our objective is to eventually become a renowned best hepa air filter provider. Following years of efforts in the air purifiers hepa filter manufacturing industry, Guangzhou HaoAir Purification Technology Co.,Ltd. is worthy of your trust. Inquire online! Guangzhou HaoAir Purification Technology Co.,Ltd. has a leading industry position and brand. Inquire online!
