Transfer Window And Air Shower Pass Box

Brand:

haoairtech

Model number:

KEL-ASPB500

Material:

1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety Sus201.(T=1.2/1.5mm) 3: External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)

OEM /ODM:

OEM /ODM

Certificated:

Start port:

GUANGZHOU

Delivery time:

10 days

MOQ:

1 set

Inquiry

Write a Review

Product Name

Haoairtech

Other Name

pass box

Guarantee Time

12 month

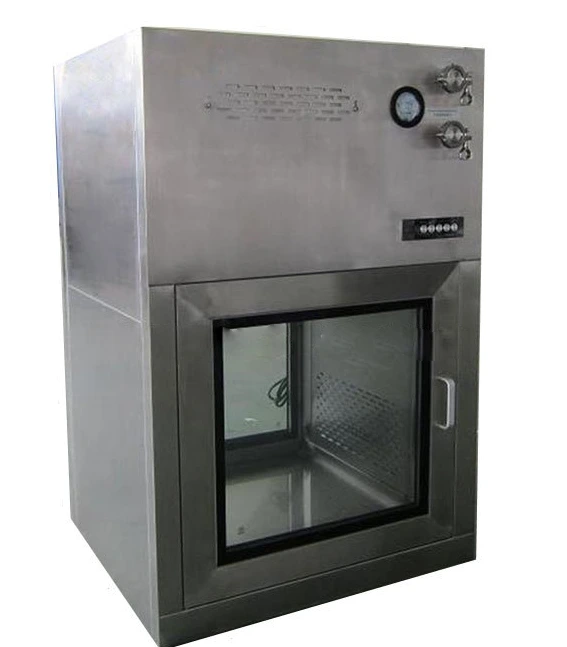

Transfer Window and Air Shower Pass Box

Pass Box is a kind of assistant equipment for clean room. Mainly be used in passing the small articles between clean room and unclean room, different class and different pressure clean room. One side, it is affected for air brake and protect the high pressure discharged in the high class clean room. On the other hand, it can achieve the showering result during the passing for ensuring goods clean to enter the clean room and reduce the goods to bring the pollution extent. The showering time can according to the practical need within one minute adjustable. It can reach showering and save energy for the maximal limit.


Product features:
1.Material:SS 304
2.On both sides of the gate has a mechanical interlock or electrical interlock device, make sure not in an open position at the same time on both sides of the door.
3.The outlet of the wind speed up to more than 20 s.
4.Adopts hepa filter with separators, the filtration efficiency is: 99.99%, to ensure that the level of purification.
5.Using EVA sealing material, sealing performance is high.
6.Imported electronic components, reliable in performance.

Pass Box
used for goods transfer between clean areas or between clean and non-clean areas
reduce cleanroom contamination risk
static and dynamic type
with self-clean and sterilization optional

Products Parameter:

MODEL	KEL-ASPB500
External size (mm) (WDH)	850x500x1350mm
Work zone (mm) (WDH)	500x500x500mm
Nozzle	4 PCS
Air speed	18-25m/s
Per-filter	425x275x17mm
	G3
HEPA filter	360x360x69mm
	99.99%@0.3um H13
Optional accessories	1: UV light. 2: Interphone 3:Differential pressure gauge 4: Roller
Power supply	0.75KW 380V/50HZ
packing size (mm)	1050x780x1600mm	1100x880x1700mm	1240x1030x1850mm
Packing material	Standard Export Poly wood Packing(Fumigant free material)

Air Shower Pass Box:

pass box

Air shower pass box Bottom:

Air Shower Pass Box Top Nozzle:

Company principle:

We are committed to developing in GMP clean workshop, QS clean workshop, industrial clean workshop, aseptic room, biosafety laboratory and other standard clean workshops and supporting clean equipment. We have established and improved the products quality management system according to the international standard, and the products have awarded more than ten national patents.

We have settled up a high-quality product research and development team, adhering to the sincere and trustworthy, serious and rigorous work style, constantly improve ourselves, make the business philosophy remain in "advanced technology, quality products, reasonable prices, the best service to satisfy the purification of the market.
