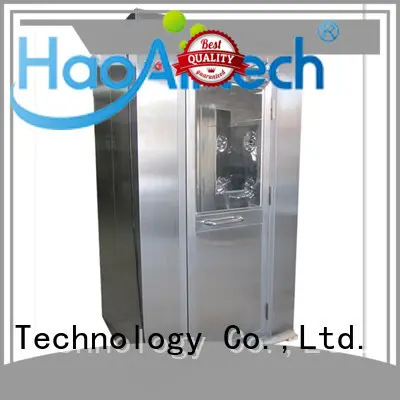

sus air shower design with automatic swing door for ten person

Company Advantages
1. The create of HAOAIRTECH open air shower goes through a fine analysis of manufacture requirements. The procedure consists of designing model sketch or prototype, deciding the reasonable number of operations, choosing work methods and selecting adequate equipment.
2. The product has the advantage of hardness. It has passed through heat treatment which involves heating metal materials to a specific temperature over its transformation temperature.
3. The product features high impact strength. The main frame of this product adopts hard pressed extruded aluminum or stainless steel as the main materials.
4. Unlike the expensive and unrenewable energy supply, this product is powered by the truly renewable resource which can be utilized in all areas and is available every day.
5. The product is an essential component in many industries, which is suitable for machinery that is subject to dust and leakage.

Introduction:
These Air Showers and Tunnels offer an effective way to remove surface-deposited particles from personnel—before they get to the clean room. Each unit is a fully equipped, protected passageway that allows large numbers of personnel to pass into controlled areas without sacrificing convenience or cleanliness.

Pharmaceutical Cleanroom Air Shower Features:

1.HEPA filter/blower modules (rated 99.97% efficient @ 0.3 micron particles) wash personnel with Class 100 air to dislodge and remove particles.
2.Solid-state microprocessor panel provides programmable control over access door operation.
3.Interlocking doors minimize contamination, release automatically in the event of power failure.
4.Fluorescent lighting is housed in the ceiling for minimal turbulence.
5.Available in white epoxy-finished CR steel, stainless steel, or plastic laminate to meet various clean room requirements.
6.Variety of sizes and door configurations.
7.Economical to operate, easy to maintain.
8.System options include HEPA-filtered ceiling, ionized grid, and safety glazing.

The air shower is approval by CE and RoHS certificate.
Customer’s design is available.

Pharmaceutical Cleanroom Air Shower Specification:

Pharmaceutical Industries Air Shower HA-AS1300P Series
Model		HA-AS1300P1	HA-AS1300P2	HA-AS1300P3
Outer Si(mm) (WXDXH)		1300x1000x2180	1300x2000x2180	1300x3000x2180
Inner Size(mm)(WXDXH)		800x930x1910	800x1930x1910	800x2930x1910
Persons per cycle		1-2 person	2-4 person	3-6 person
Air shower duration		Factory set at 15 seconds (0-99 seconds adjustable)
Material		Coldrolled Steel with Baked Painting or Stainless steel 304/316
Fan consumption		0.75KWX2 sets	0.75KWX4sets	0.75KWX6sets
Air flow of fan(m3/h)		1300m3/h
Fan run (r/min)		2800r/min
Nozzle in stain less steel		16 pcs	32 pcs	48 pcs
Wind speed(m/s)		25-30m/s
Noise level(dB)		<62dB
LED Fluorescent Lamp		20wx1	20wx2	20wx3
HEPA Filter	Size(mm)	630X630X69mm
	Efficiency	99.99%@0.3um
	Resistance	<220pa
Pre-filter	Size(mm)	785x385x21
	Efficiency	75% @ 5um
	Resistance	<30 Pa
Power supply		380V/50Hz



Pharmaceutical Cleanroom:

Pharmaceutical Cleanroom Equipments:

Company Features
1. HAOAIRTECH is deeply trusted by customers for stable quality and open air shower of air shower design .
2. Whenever there is any problems for our air shower clean room , you can feel free to ask our professional technician for help.
3. The goal of our company is to provide perfect product quality to win the trust of our customers at home and abroad. Full of passion and power, our mission is to make real change to consumers and businesses around the world every day. Call! Our company bears social responsibilities. We always attempt to recycle and reuse by-products or convert them back into valuable energy when recycling isn't feasible.
