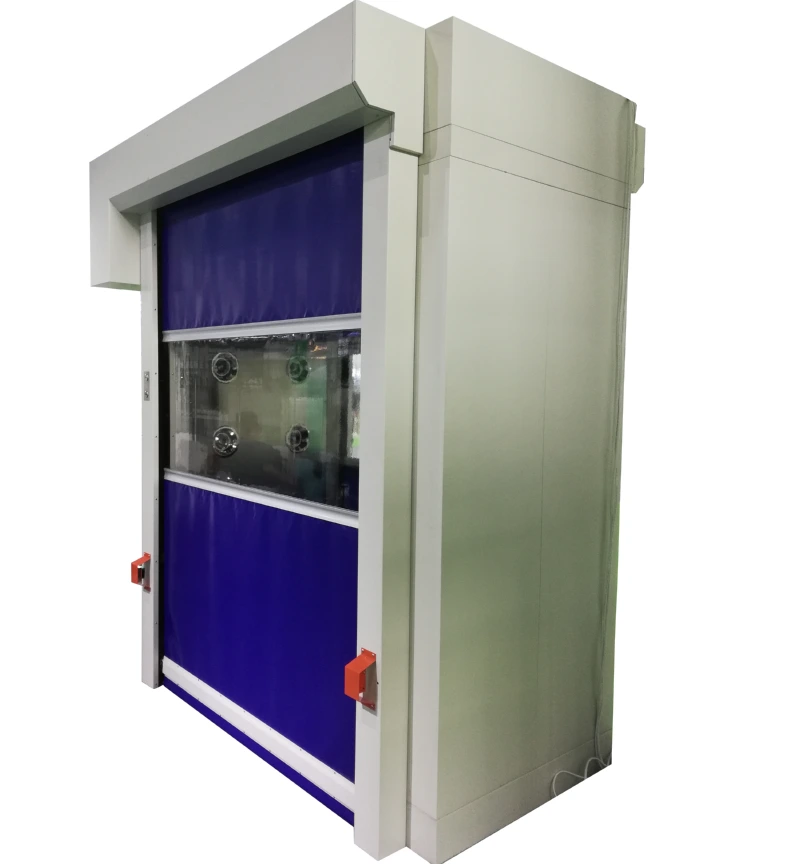

PVC Fast Rolling Door Air Shower 1
PVC Fast Rolling Door Air Shower 1

PVC Fast Rolling Door Air Shower

    oops...!

    no product data.

    Go to homepage


    Introduction


      Fast rolling door  air shower is a kind of local purifying equipment,fixed on the partition between clean room and unclean room.

      It is used for shower and removing dust when personnel or objects entring into clean area.

      Effectively reduce dust source from entring into clean area after used,and keep clean area in normal working state.

      Shower way:single-side shower,double-side shower,three-side shower and top shower.

      This air shower unit combines the conveyor belt with the air shower to make cargo transportation more convenient.


    Characters


    Photoelectricity control,automatic shower.
    Circulated air design keeps shower area clean in non-shower state.
    Double doors adopt electric interlocking to force shower;double doors may be made as automatic movable door.
    Made as negative pressure and anti-exploding air shower according to users' requirment.
    Equipped with the device to remove static.
    Carry on air brake,cushion type and other particular design,manufacturing.


    Products Parameter

    MODEL

      HA-AS2300P2

    HA-AS2300P3

    External size (mm)

    (W*D*H)

    2300x2000x2280mm

    2300x3000x2280mm

    Work zone (mm)

    (W*D*H)

    1500x2000x1980mm

    1500x3000x1980mm

    Persons per cycle

    One Small Cargo forklift.

    One big Cargo forklift.

    Material

    Option

    1:External is steel with power coated,   Internal is SUS304(T=1.0/1.2/1.5mm)

    2:External is steel with power coated.   Internal is SUS201(T=1.0/1.2/1.5mm)

    Control system

    1: Control system with LED display for   the shower time.

    2: The shower time from 0-99second.   (Adjustable)

    3: Infrared ray inductor for inside   personal shower automatic.

    4: Three side blowing with Human voice   prompt system.

    5: with CE remark.

    Door

    Automatic High Speed Rolling Door

    The power of fan

    380V/50HZ/0.75KW

            (4 set)

    380V/50HZ/0.75KW

    (6sets)

    Air flow of fan(m3/h)

         1500

    1500

    Fan run (r/min)

    2800

    2800

    Nozzle in stain less steel

         36 pcs

              54 pcs

    Wind speed(m/s)

                           >25m/s

    Noise level(dB)

                  <75dB

    HEPA FILTER

    Size(mm)

     630X630X80mm(4 sets)

          630X630X80mm(6 sets)

    Efficiency (%)

    99.995% @ 0.3um mini-pleats HEPA Air Filter

    Air velocity

    1000(m3/h)

    Initial resistance(pa)

    <180pa

    Pre-filter

    Size(mm)

        775x380x17

    775x380x17

    775x380x17

    Efficiency (%)

     75% @ 0.5um

    75% @ 0.5um

    75% @ 0.5um

       G3

        G3

    G3

    resistance(pa)

    <30 Pa

    <30Pa

    <30 Pa

    parameter

    Power supply

     380v/50HZ 3P

    380v/50HZ 3P

    380v/50HZ 3P

     Net power(kw)

           1.5 kw

        3kw

       4.5   kw

     Fast Rollling Door Air Shower :


    PVC Fast Rolling Door Air Shower 2

    PVC Fast Rolling Door Air Shower 3



       Illustrate:



        1: Fast shutter motor      2:Air shower control board    3:SUS Nozzle       4: Infrared Ray Indicator          5A/B:Sensor for door open

        6: PVC Rolling Door      7:Big air volume motor            8: HEPA air filter(H13 99.995%@0.3um)                 9: per-filter

         10A/B: Sensor for door closer        11: Purification Light





    PVC Fast Rolling Door Air Shower 4




    Factory test:



    All of equipment is individually factory tested for safety and performance in accordance with international Standards.

    Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.


    Factory test include:

    -- functional test and visual inspection

    -- electrical safety tests

    -- air velocity testing

    -- purification rank test (if need)
