stainless steel weighing booth supplier for pharmaceutical factory

Company Advantages
1. The development of HAOAIRTECH portable sampling booth adopts many disciplines. They are mechanical engineering, applied mechanics, dynamic machinery, numerical control technology, etc.
2. The product is energy-friendly. Designed in a compact and energy saving electric circuit board, it consumes less power compared to other alternatives.
3. This is a piece of furniture that looks great, fits perfectly in any spaces whilst offering everything you could possibly expect from it. - Said one of our customers.
4. This product will make a big difference in people's confidence levels. It will fit people's bodies properly and they will feel happier and more confident.

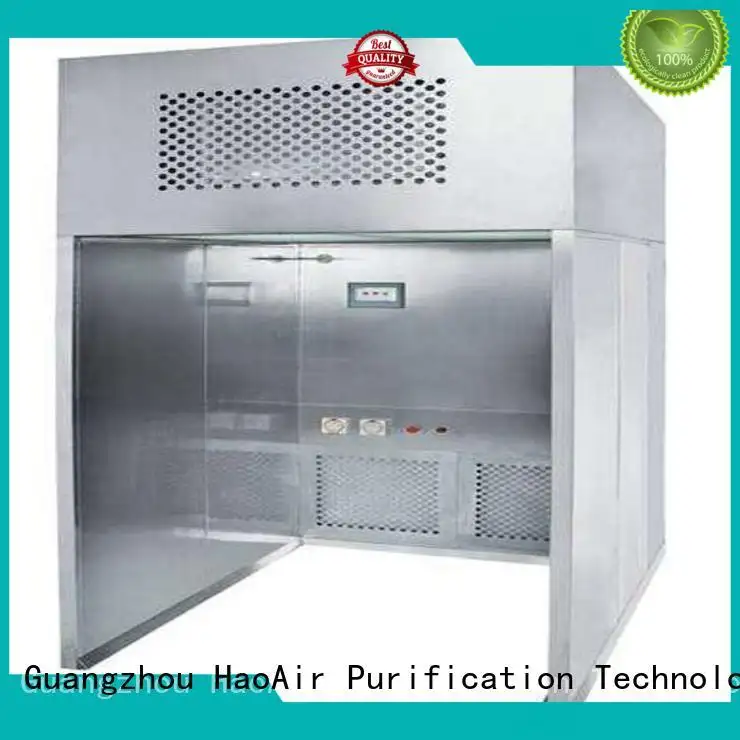

Powder Containment Booth

Introduction :

The powder containment booth room is one kind of professional working room which specially used in sampling,
weighting and analysis industry, it can control the working area powder to prohibit them off the working room,
and it is special equipment to control the powder floating, protect operators not breathe the operated powder.



   Powder containment booth provide operator, process and product protection by utilizing HEPA filtered unidirectional

 laminar air flow booth to maintain an ISO5 environment at rest within the work zone and capture particulates during open handling processes .



Product Features:

Negative Pressure Laminar Flow powder containment booth

GMP Modular design with minimized joints and seams

Purification rank:class 100
Three step filtration system
Fluid seal mini-pleats system
GMP standatd with DOP port testing

Mobile workbenches
Hazardous area electrics option
Flush mounted computer integration
Front/side access doors
PLC controlled audible and visual alarm packages

Products Parameter:



MODEL	HA-DB1000	HA-DB1500	HA-DB2000
External size (mm) (W*D*H)	1200x1500x2400mm	1500x1700x2400mm	2000x1800x2400mm
Work zone (mm) (W*D*H)	1100x1200x2000mm	1400x1200x2000mm	1900x1300x2000mm
Purification rank	Class 100(ISO5)
Air speed	0.45m/s +_20%
Material (Option)	1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) 2: External and internal side is steel with power coated. (T=1.2/1.5mm)
Control system	1: Air Speed according to frequency converter control . 2: Gel Sealant High Efficiency HEPA air filter for high purification rank 3: Wind speed detection, Constant temperature and constant humidity Detector according to client request install 4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time 5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens . 6; GMP Modular design with minimized joints and seams. 7: PVC strip curtains available 8; Energy Efficient high air volume fan to minimize operating cost,
Noise level(dB)	<65dB
Filter step	3 Step
HEPA filter	99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter
Secondary filter	F8 pocket air filter
Pre-filter Efficiency	G4 Z-Line panel air filter
Power supply	380V/50HZ OR 220V/50HZ
Packing material	Standard Export Poly wood Packing(Fumigant free material)

Haoairtech Manfuactory For Powder Containment Booth :

Haoairtech cleint in oversea :

Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is the industry's prestigious weighing booth products leader.
2. Our products have been sold well all over the world including America, Australia, Canada, France, and so forth. We have developed and expanded our product ranges to cater to more market needs.
3. Being concentrated on a much healthier and more effective world, we'll remain environmentally and socially aware of the upcoming performance. Please contact us! Sustainability is one of our company's strategic business objectives. We have paid close attention to our energy consumption and have worked on the following specific projects: replacing lighting, identifying very large power consumers in our processes, etc. Our firm bears societal responsibilities. The urgency and importance of low carbon generation and the efficient utilization of resources really are a high priority and chance by the vast majority of our associates. Our company bears social responsibilities. We have drastically reduced our energy and water consumption since establishment whilst growing in size and output.
