We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

stainless steel pass box clean room with conveyor line for cargo 1
stainless steel pass box clean room with conveyor line for cargo 2
stainless steel pass box clean room with conveyor line for cargo 3
stainless steel pass box clean room with conveyor line for cargo 1
stainless steel pass box clean room with conveyor line for cargo 2
stainless steel pass box clean room with conveyor line for cargo 3

stainless steel pass box clean room with conveyor line for cargo

Brand:
haoairtech
Model number:
HASPB pass box
Material:
1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety Sus201.(T=1.2/1.5mm) 3: External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)
OEM /ODM:
OEM /ODM
Certificated:
CE
Start port:
GUANGZHOU
Delivery time:
10 days
MOQ:
1 set
Inquiry
Product Name
Haoairtech
Other Name
pass box
Guarantee Time
12 month
Company Advantages
1. To ensure the quality of HAOAIRTECH pass box wikipedia , the first-rate materials are used in the production. These materials are recyclable and do no harm to the environment. It is certified by SGS corporation and reaches RoHS standard
2. The development of Guangzhou HaoAir Purification Technology Co.,Ltd. benefits the people in the surrounding communities. The product stands out for its high efficiency for purification
3. This is an extremely soft bedding, which has a gentle touch for the skin,and is washed and dry well and very comfortable. Made of stainless steel SUS304, it is beautiful and durable
4. The product can resist excessive humidity. It is not susceptible to the huge moisture that could result in the loosening and weakening of joints and even failure. The product comes with 1-2 years of warranty period

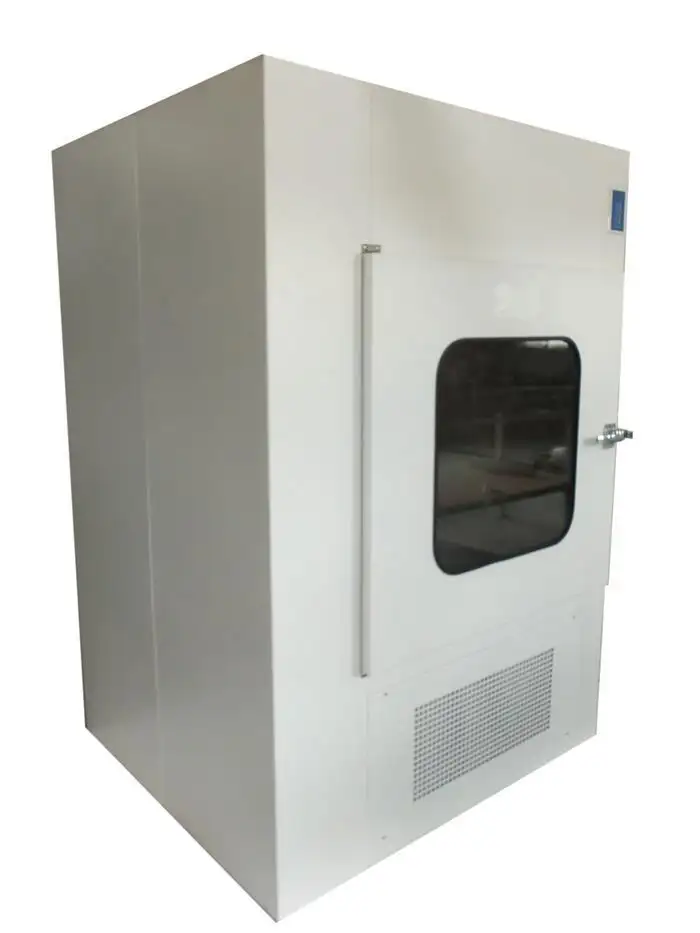

Stainless steel air shower pass box

Introduce:

A Pass Box is one kind of facilities, which located on partition walls of clean room and its function is to buffer the area for transferring goods between inside and outside of clean room. This is done in order to prevent any disturbance of airflow and air pressure in clean room, which is caused by the door opening for goods transfer. Furthermore, it can reduce the time for operators moving in and out, to isolate and prevent any dust contamination. Which is why we have one interlock guard system controlling the inlet and the outlet of Pass Box so that they cannot be opened at the same time, in order to prevent the cross contamination.  These products are well tested on various quality parameters. Also, these products are widely known for their low maintenance and long life.


Product Features:


1) Air shower inside

2) Materials of outside wall: coated plate or stainless steel

3) Materials of interior wall: coated plate or stainless steel

4) Ceiling and base plate: stainless steel

5) Electronic interlocking

6) Allows only doors at one end of the pass box to be opened at one time

7) Cabinet materials: coated plate, stainless steel board (suitable for using in

moist environment)

8) Intercom included

9) Ultraviolet sterilization, blower device and mutual electronic lock

10) Arc corner in design belongs to patent production



Products Parameter:

MODEL

HA-ASPB500

HA-ASPB600

HA-ASPB700

External size (mm)
(W*D*H)

850x500x1350mm

950x600x1450mm

1090x750x1600mm

Work zone (mm)
(W*D*H)

500x500x500mm

600x600x600mm

750x750x750mm

Nozzle

4 PCS

4PCS

6 PCS

Air speed

18-25m/s

Material
(Option)

1: Entirety Sus304.(T=1.2/1.0mm)
2: Entirety sus201. (T=1.2/1.0mm)
3: External is steel with power coated, Internal is SUS304(T=1.2/1.0mm)
4: External is steel with power coated. Internal is SUS201(T=1.2/1.0mm)

Per-filter

525x275x17mm

560x275x17mm

560x275x17mm

G3

HEPA filter

484x484x69mm

630x630x69mm

630x630x69mm

99.99%@0.3um H13

Optional accessories

1: UV light. 2: Interphone 3:Differential pressure gauge 4: Roller

Power supply

0.75KW 380V/50HZ

packing size (mm)

1050x780x1600mm

1100x880x1700mm

1240x1030x1850mm

Packing material

Standard Export Poly wood Packing(Fumigant free material)





Air Shower Pass Box:



Air shower pass box Bottom:




Air Shower Pass Box Top Nozzle:



Our services:

Easy installation, maintenance free design and high durability are the best features of our range that have increased their demand in both national and international markets. To provide complete satisfaction to the clients, we have been offering customization solutions with after sales services to them as per their exact requirements. Being a consistent business organization of this highly competitive market, we are providing to our customers an extensive collection of Dynamic Pass Box. These are available with us in an assortment of specifications. Along with this, these could be changed to meet with the meticulous requirements of our patrons.



Company Features
1. HAOAIRTECH has obtained high-tech manufacturing to manufacture pass box clean room .
2. We aim to help clients succeed. We'll work hard to create value for customers, such as helping cut production costs or improving product quality.
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
