We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

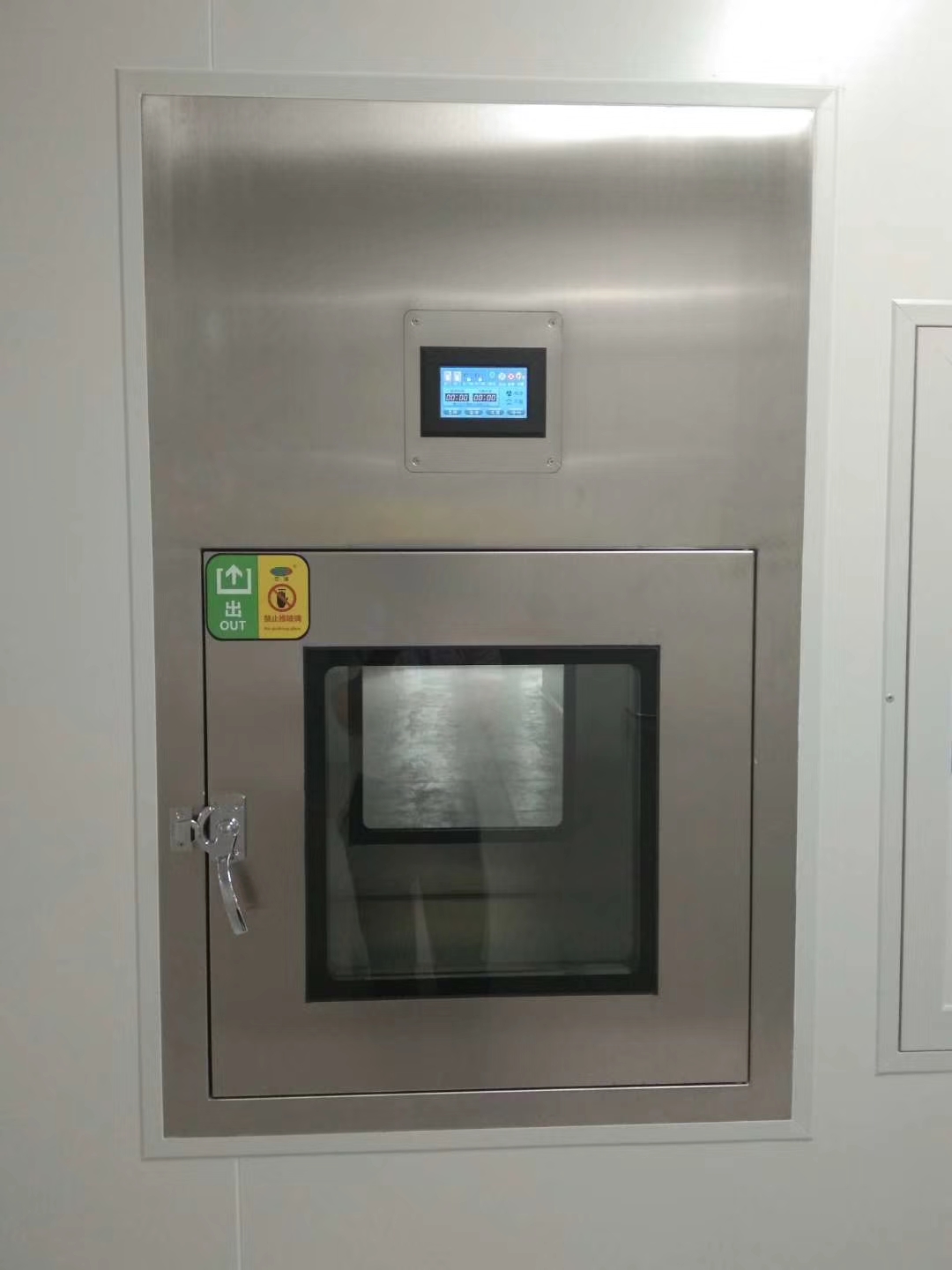

Stainless Steel Dynamic Pass Box
Feature :
Precision designing and finish.
Choice of mechanical or electrical interlocked.
Floor and wall mounted design.
Maximum chemical resistance construction.
Stainless Steel suction filter w/ 95% down to 5 µ Efficiency (EU-4 Rating.).
Branded heavy duty Blower.
Aluminum Supply filter w/ 99.999% down to 0.001 µ (EU-14 Rating.).
Buzzer indication to know the material is kept inside.
Indicating lamp to know the door lock-unlock condition.
Low Vibration and Noise.
Fully custom designed.
Product Characteristic :
Stainless Steel Dynamic Pass Box Equipment Are Made Of Powder Coated High Grades Stainless Steel (304 / 316 / 316 L)
With International Quality Standard Components Including Mechanically Or Electrically Interlocked Doors And UV Light.
These Dynamic Pass Box Equipment Are Equipped With Suction Filter Made Of Stainless Steel With 95%
Down To 5µ Efficiency (EU-4rating) And Supply Filter Made Of Aluminum With 99.999% Down To 0.001 Μ (EU-14 Rating.)
An Interlock Guard System Controls The Inlet And The Outlet Of PASS BOX Not Be Opened At The Same Time,
In Order To Prevent The Cross Contamination.
Products Parameter：
MODEL | HA-DPB500 | HA-DPB600 | HA-DPB700 |
External size (mm) (W*D*H) | 700x570x1050mm | 800x670x1150mm | 900x770x1250mm |
Work zone (mm) (W*D*H) | 500x500x500mm | 600x600x600mm | 700x700x700mm |
Purification rank | Class 100 | ||
Material （Option） | 1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety sus201. (T=1.2/1.5mm) 3:External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm) | ||
Control system | 1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem. 2: Pass Box inside bottom corner is round shape without any dust accumulation . 3: Double layer vacuum glass have very good appearance 4: Software computer interlocking door with long time using life 5: Air speed is 0.45m/s adjustable | ||
UV light | 1 PCS | ||
Power supply | 220v/50HZ | ||
packing size (mm) | 800x870x1300mm | 1000x870x1400mm | 1100x970x1500mm |
Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
