    Stainless steel air shower pass box

    Introduce:

    A Pass Box is one kind of facilities, which located on partition walls of clean room and its function is to buffer the area for transferring goods between inside and outside of clean room. This is done in order to prevent any disturbance of airflow and air pressure in clean room, which is caused by the door opening for goods transfer. Furthermore, it can reduce the time for operators moving in and out, to isolate and prevent any dust contamination. Which is why we have one interlock guard system controlling the inlet and the outlet of Pass Box so that they cannot be opened at the same time, in order to prevent the cross contamination.  These products are well tested on various quality parameters. Also, these products are widely known for their low maintenance and long life.


    Product Features:


    1) Air shower inside

    2) Materials of outside wall: coated plate or stainless steel

    3) Materials of interior wall: coated plate or stainless steel

    4) Ceiling and base plate: stainless steel

    5) Electronic interlocking

    6) Allows only doors at one end of the pass box to be opened at one time

    7) Cabinet materials: coated plate, stainless steel board (suitable for using in

    moist environment)

    8) Intercom included

    9) Ultraviolet sterilization, blower device and mutual electronic lock

    10) Arc corner in design belongs to patent production



    Products Parameter:

    MODEL

    HA-ASPB500

    HA-ASPB600

    HA-ASPB700

    External size (mm)
    (W*D*H)

    850x500x1350mm

    950x600x1450mm

    1090x750x1600mm

    Work zone (mm)
    (W*D*H)

    500x500x500mm

    600x600x600mm

    750x750x750mm

    Nozzle

    4 PCS

    4PCS

    6 PCS

    Air speed

    18-25m/s

    Material
    (Option)

    1: Entirety Sus304.(T=1.2/1.0mm)
    2: Entirety sus201. (T=1.2/1.0mm)
    3: External is steel with power coated, Internal is SUS304(T=1.2/1.0mm)
    4: External is steel with power coated. Internal is SUS201(T=1.2/1.0mm)

    Per-filter

    525x275x17mm

    560x275x17mm

    560x275x17mm

    G3

    HEPA filter

    484x484x69mm

    630x630x69mm

    630x630x69mm

    99.99%@0.3um H13

    Optional accessories

    1: UV light. 2: Interphone 3:Differential pressure gauge 4: Roller

    Power supply

    0.75KW 380V/50HZ

    packing size (mm)

    1050x780x1600mm

    1100x880x1700mm

    1240x1030x1850mm

    Packing material

    Standard Export Poly wood Packing(Fumigant free material)

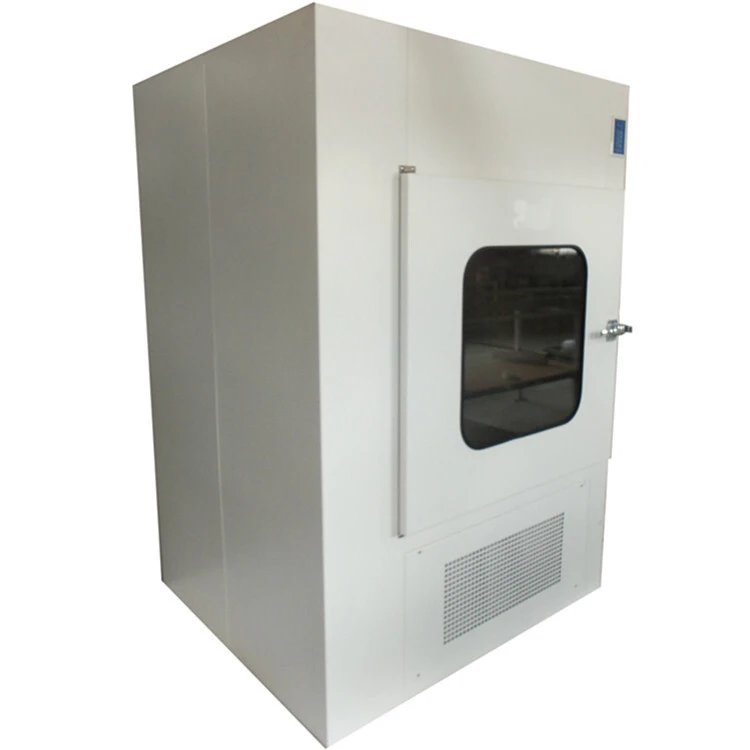

    Air Shower Pass Box:



    Air shower pass box Bottom:




    Air Shower Pass Box Top Nozzle:



    Our services:

    Easy installation, maintenance free design and high durability are the best features of our range that have increased their demand in both national and international markets. To provide complete satisfaction to the clients, we have been offering customization solutions with after sales services to them as per their exact requirements. Being a consistent business organization of this highly competitive market, we are providing to our customers an extensive collection of Dynamic Pass Box. These are available with us in an assortment of specifications. Along with this, these could be changed to meet with the meticulous requirements of our patrons.
