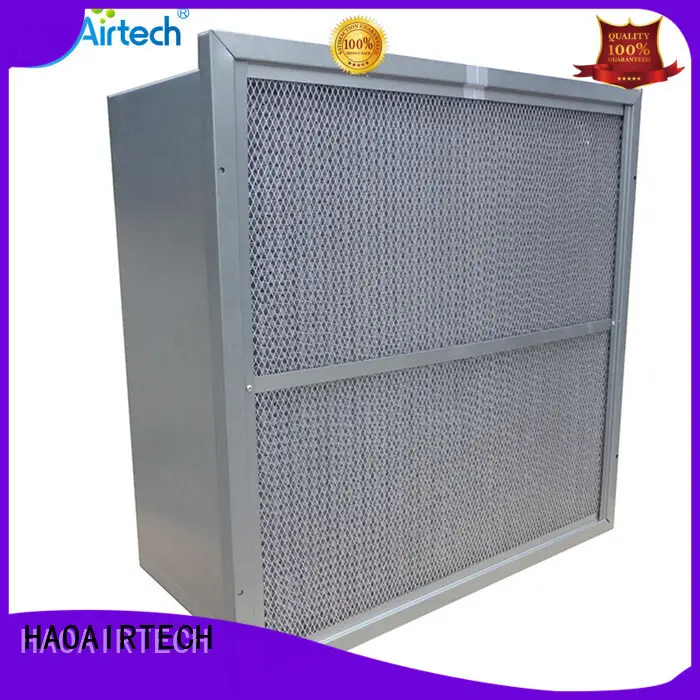

Rigid Box Ashare Air Filter With GL Interlocker Frame

Company Advantages
1. From the selection of raw material of HAOAIRTECH high efficiency air filter to burnishing, body repairing, glazing, and sintering, quality management is conducted throughout every stage.
2. Before shipment, we will conduct various types of tests to check the quality of this product.
3. The quality of the product has been carefully and strictly audited by our professional QC team as well as the authoritative third parties.
4. This product has signs of being applied in more areas.

Characteristics:

Dual density media reduces operating cost

Excellent performance in difficult operating conditions

High efficiency low resistance

Rigid metal construction

Deep pleats type water resistance glass fibre media

Turbulent air flow

Supported with aluminum foil clapboard

High temperature and high humidity

Intermittent exposure to water

Efficiency: MERV 14, MERV 13 and MERV 11 .



Operating conditions:

Media	Glass   Fiber
Frame	AL/GL   frame
Clapboard	Aluminum   Foil
Frame thickness (mm)	150/292mm
Screen	Metal   screen
Efficiency	F7/F8
Max Temperature	350 ˚F (177˚C)
Max Humidity	100%





Products Parameter：

Dimension   (mm) (W*H*D)	Rate Air   Flow   (m3/h)	Media   Area    (m2)	Dust   Holding    (g)	Rate   primary Resistance    (Pa)	Finally Resistance      (Pa)	Efficiency
289x594x150	675	4.3	261	<60	250-300	F6
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185
289x594x150	675	4.3	261	<80	300-400	F7
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185
289x594x150	675	4.3	261	<100	300-400	F8
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185



Application:

Commercial buidings, data centers , food and beverage, hospitality , industry , microelectronics

Healthcare , schools and universities ,pharmaceutical .

   Picture：
