We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

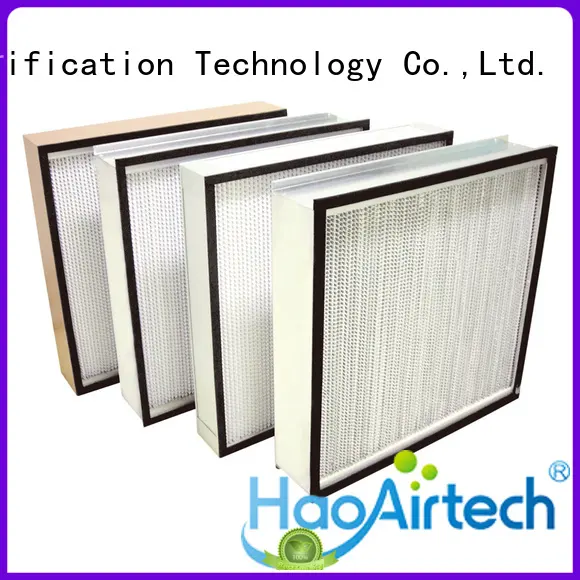

Quality HAOAIRTECH Brand bank deep hepa filter manufacturers
1. Raw materials of best hepa air filter meet the EU safety and environmental protection standards. A sample of the product can be offered for the confirmation of quality
2. Automatic operation is the highlight of the product, HAOAIRTECH Has Sold Thousands Of hepa filter manufacturers, hvac hepa filter To Our Customers And Partners All Around The World.
3. The product is of high purification rank, HAOAIRTECH Is Specialized In The Export Of hepa air filter For Many Years.
4. The product will greatly improve the quality of factory-made products. custom hepa filter,hepa filter for cleanroom has earned a trustworthy name in the market in the manufacturing, distributing and exporting of wooden gift items.
Neoprene /EVA gasket prevent the air leaking in operation。
Extrude and anodized aluminum, Galvanized and MDF frame in 120mm, 150mm, 220mm for choose。
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um
Max temperature is 80C
Max humidity is 80%
Introduce
Deep Pleats Heap air filter adopt the special design to keep the space between pleated layers by Clapboard. Corrugated aluminum spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.
Media | Super glass fibre |
Frame | AL/GL/MDF frame |
Gasket | Neoprene /EVA or PU |
Media spacer | Hot melt |
Frame thickness (mm) | 120/150/220 |
Clapboard | 0.035mm aluminum foil or 120g/m paper |
Efficiency | 99.99%-99.999%@0.3um |
Max Temperature | 80℃ |
Max Humidity | 80% |
Dimension(mm) | Rate Air | Media Area | Dust Holding | Rate primary | Finally |
484X484X120 | 450 | 4.4 | 230 |
220Pa |
400-600pa |
610X610X120 | 700 | 7.1 | 370 | ||
610X915X120 | 1050 | 10.6 | 560 | ||
610X1220X120 | 1400 | 14.1 | 740 | ||
484X484X150 | 600 | 6 | 320 | ||
610X610X150 | 1000 | 9.7 | 510 | ||
610X915X150 | 1500 | 14.5 | 770 | ||
610X1220X150 | 2000 | 19.3 | 1020 | ||
484X484X220 | 1000 | 9.8 | 600 | ||
610X610X220 | 1600 | 15.8 | 920 | ||
610X915X220 | 2300 | 23.7 | 1340 | ||
610X1220X220 | 3000 | 31.6 | 1750 |
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is a well-known supplier of hepa filter manufacturers with large factory and modern production lines.
2. The professional excellent talents are the continuous developing power resource of HaoAir Purification .
3. To lead the hepa air filter market is our vision. Check it!
Email: sales2@haoairtech.com
Add: RM323 KaiSheng Building,CongYun RoadYongping street ,Baiyun District, Guang Zhou, Guangdong, China
