Quality HAOAIRTECH Brand bag bag filter
1. bag filter gives a stylish, warm and lovely feel. It acts as an indispensable part in a dustfree production line
2. The product is guaranteed to be superior in quality, stable in performance, and long in service life. The product is reputed for its long service life
3. As we always keep 'Quality first' firmly in mind, the product is sure to be of the highest quality. The product dedicates to keeping a cleanliness class of 10000-300000
4. Guangzhou HaoAir Purification Technology Co.,Ltd. has promoted the realization of sustainable value growth. The product will greatly improve the quality of factory-made products
5. It is also very important for HAOAIRTECH to stick to the customer satisfication. The product creates a high cleanliness working environment

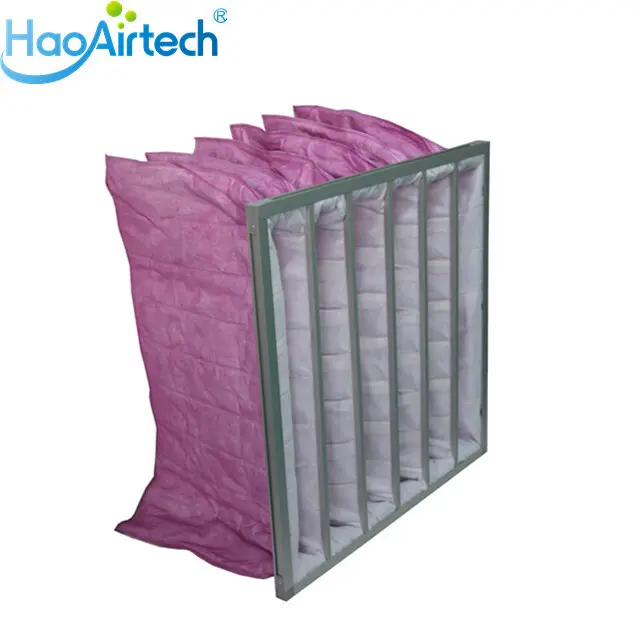

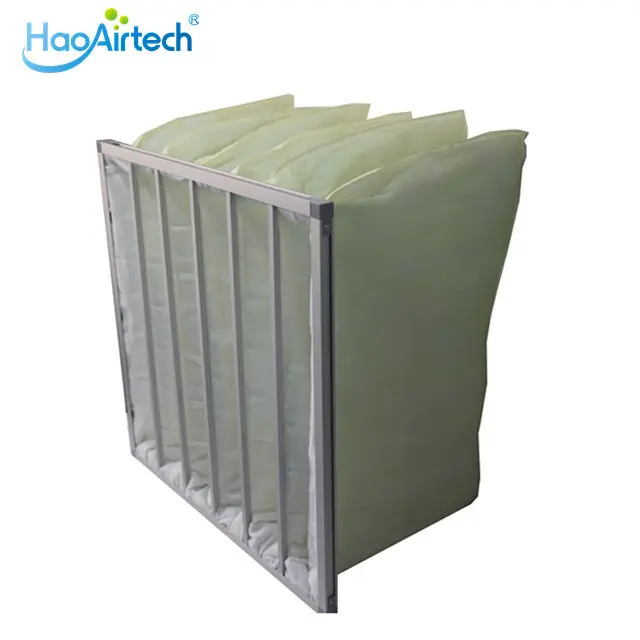

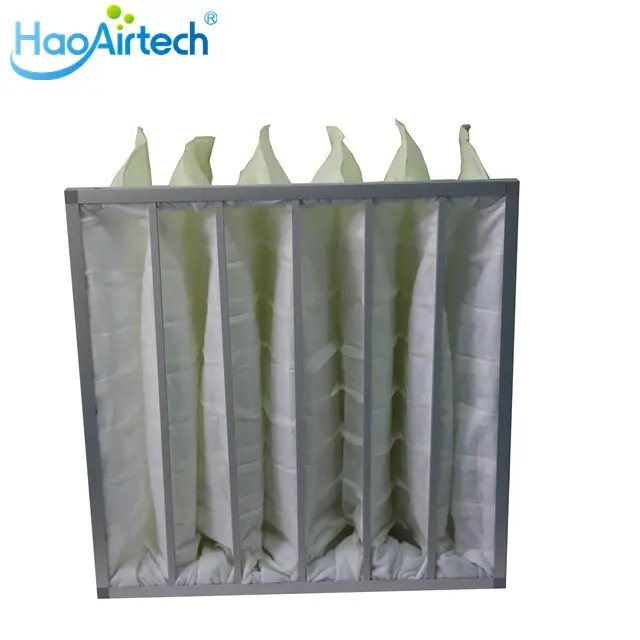

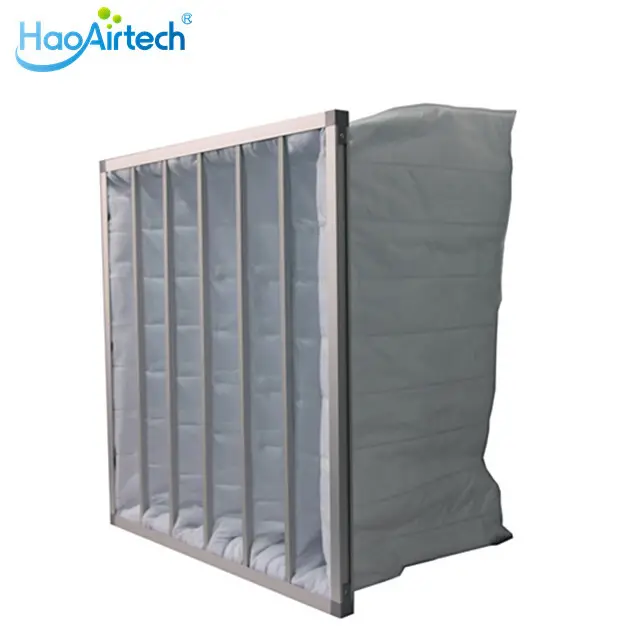

Synthetic fiber bag filter have large media area, so it has large dust capacity and low resistance.
It is considered as the best medium or secondary filter structure at present.
It's unique bag structure ensures that the air flow is evenly filled with the whole bag.
Unique hot melting technology can prevent excessive extrusion or leakage between bags,
Which reduces resistance and maximizes dust capacity.
Secondary bag filter can be used as an ideal medium-effect filter in humid, high air flow and dust load environment.
Efficiency is 45% ,65%,85% and 95%( Ashrae 52. 2)
Efficiency Class: F5,F6.F7.F8 comply with EN799.
Introduce :
Bag filter with synthetic fiber media is mainly used in central air conditioning and central air supply system. It can be used in intermediate filtration of air conditioning system to protect the next filter and system itself.
In places where the cleanliness requirement for air purification is not strict.
Filter Media | Synthetic fibre media |
Frame | AL / GL / SUS201 / Plastic frame |
Gasket | Neoprene / EVA or PU |
Pocket type | ultrasonic bag or sewing bag |
Frame thickness (mm) | 21mm, 25mm |
Efficiency | 45%-95%@0.3um |
Max Temperature | 70℃ |
Max humidity | 100% |
Plastic frame | 21mm |
Dimension (mm) (W*H*D) |
| Rate Air Flow (m3/h) | Media Area (m2) | Dust Holding (g) | Rate primary Resistance (Pa) | Finally Resistance (Pa) | Efficiency |
595x595x600 | 8 | 3500 | 6.47 | 1165 |
50pa | 250-300pa | F5 45% |
595x595x600 | 6 | 3200 | 5.03 | 906 | |||
495x595x600 | 6 | 3000 | 4.31 | 777 | |||
295x595x600 | 3 | 1800 | 2.51 | 453 | |||
595x595x600 | 8 | 3500 | 6.47 | 1036 | 65pa | 250-300pa | F6 65% |
595x595x600 | 6 | 3200 | 5.03 | 805 | |||
495x595x600 | 6 | 3000 | 4.31 | 690 | |||
295x595x600 | 3 | 1800 | 2.51 | 402 | |||
595x595x600 | 8 | 3500 | 6.47 | 906 | 80pa | 300-400pa | F7 |
595x595x600 | 6 | 3200 | 5.03 | 705 | 85% | ||
495x595x600 | 6 | 3000 | 4.31 | 604 | |||
295x595x600 | 3 | 1800 | 2.51 | 352 | |||
595x595x600 | 8 | 3500 | 6.47 | 777 | 105pa | 300-400pa | F8 90% |
595x595x600 | 6 | 3200 | 5.03 | 604 | |||
495x595x600 | 6 | 3000 | 4.31 | 518 | |||
295x595x600 | 3 | 1800 | 2.51 | 302 |
/ Primary Resistance & Face Velocity Diagram
Application
Synthetic fiber Bag filter is widely used in central air conditioning ventilation system, Pharmaceuticals . automotive , hospitals, electronics, food manufacturing industries and other
commercial buildings, and various industrial and ventilation systems have successfully proved that they have upgraded industry standards with their value and performance. It can also be used as the front-end filter of high efficiency air filter to reduce the load of high efficiency air filter and prolong its service life.
.
Our Service
1: 100% scann air leaking test for each Mini-PleatsHEPA air flter, test report accompany all of
HEPA air filter.
2: 2 pcs in one carton .each air filter warp by PE Bag .
3: Small order is polywood packing so that we can send out by sea in LCL.
4: If order amount more than 20000USD, We accept the 100% LC at sight against with
document.
5: Free sample possible for you confirmation of quality .
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is the first factory in China and even in the world to provide bag filter.
2. HAOAIRTECH owns a great deal of QC team to test the quality of pocket air filter.
3. Guangzhou HaoAir Purification Technology Co.,Ltd. will maintain technological advantage and to offer innovative scale solutions. Call!
