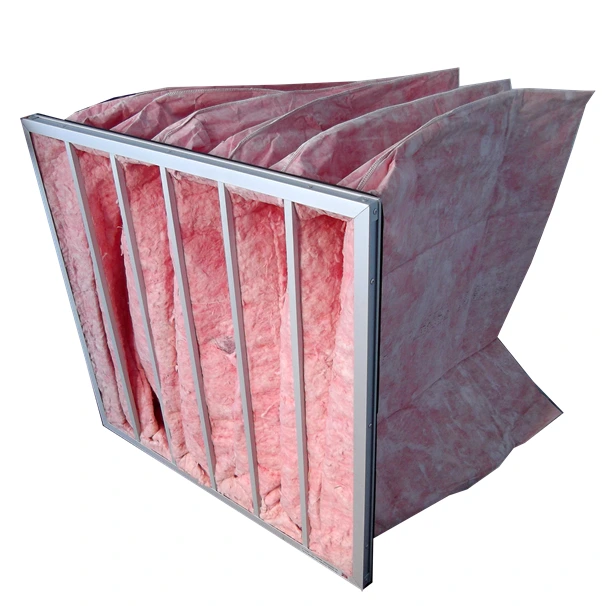

Glass Fibre Bag Ashare Air Filter With Aluminum Frame

    oops...!

    no product data.

    Go to homepage



    Characteristics
       Glass fibre media bag filter have large media area.

    The media with large dust capacity and low resistance,long using life.

    The glass fibre media with good flame retardancy comply with UL900 Class2

    It is considered as the best medium or secondary filter structure at present.

       Its unique bag structure ensures that the air flow is evenly filled with the whole bag.

    The "bag support grille" can prevent the filter from shrinking or bending under extremely

     poor working conditions

       Efficiency is 45% ,65%,85% and 95%(Ashrae52.2)

       Efficiency class : F5,F6.F7.F8 comply with EN799 standard.


    Glass Fibre Bag Ashare Air Filter With Aluminum Frame 4


    Introduce


    Bag filter is mainly used in central air conditioning and central air supply system. It can be used in intermediate filtration of air conditioning system to protect the next filter and system itself. In places where the cleanliness requirement for air purification is not strict, the air treated by intermediate filter can be sent directly to users.


     / Application :

     Glass fibre bag air filter is widely used in central air conditioning ventilation system, pharmaceuticals, automotive, hospitals, electronics, food manufacturing industries and other commercial buildings,

    and various industrial and ventilation systems have successfully proved that they have upgraded industry standards with their value and performance.

    It can also be used as the front-end filter of high efficiency air filter to reduce the load of high efficiency air filter and prolong its service life.


    / Operating Conditions


     Media

     Glass Fibre

     Frame

    AL/GL/Plastic frame

    pocket type

    ultrasonic bag or sewing bag

    pocket number

    3 pocket to 10 pocket

    Frame thickness    (mm)

    120/150/220

    Frame thickness

    21mm or 25mm

    Efficiency

    45%-95%  F5-F8

    Max    Temperature

    120℃

    Max    Humidity

    100%



    / Products Parameter



     Dimension

      (mm)

    (W*H*D)



    Pocket

      Rate

    Air Flow

      (m3/h)

    Media

    Area

     (m2)

    Dust

    Holding

      (g)

    Rate

    primary

    Resistance

       (Pa)

    Efficiency

    595x595x600

    10

    3600

    7.7

    1800

    55

    F5

    10

    3600

    7.7

    1600

    70

    F6

    10

    3600

    7.7

    1400

    100

    F7

    10

    3600

    7.7

    1200

    130

    F8

    595x595x500

    10

    3050

    6.5

    1520

    55

    F5

    10

    3050

    6.5

    1350

    70

    F6

    10

    3050

    6.5

    1190

    100

    F7

    10

    3050

    6.5

    1020

    130

    F8

    595x595x381

    10

    2400

    5.1

    1190

    55

    F5

    10

    2400

    5.1

    1060

    70

    F6

    10

    2400

    5.1

    930

    100

    F7

    10

    2400

    5.1

    800

    130

    F8

    595x595x600

    8

    2950

    6.3

    1480

    55

    F5

    8

    2950

    6.3

    1310

    70

    F6

    8

    2950

    6.3

    1150

    100

    F7

    8

    2950

    6.3

    990

    130

    F8

    595x595x500

    8

    2500

    5.3

    1240

    55

    F5

    8

    2500

    5.3

    1100

    70

    F6

    8

    2500

    5.3

    970

    100

    F7

    8

    2500

    5.3

    830

    130

    F8

    595x595x381

    8

    1900

    4.1

    960

    55

    F5

    8

    1900

    4.1

    850

    70

    F6

    8

    1900

    4.1

    750

    100

    F7

    8

    1900

    4.1

    640

    130

    F8

    / Primary Resistance & Air Flow  Diagram


    Glass Fibre Bag Ashare Air Filter With Aluminum Frame 5



    / Product Details



    part.1
     Aluminum Frame or Galvanized frame depend on your request.
    Glass Fibre Bag Ashare Air Filter With Aluminum Frame 6

    part.2
    The filter pocket from F5 to F6.F7.F8 in different efficiency comply with EN799 standard.
    Glass Fibre Bag Ashare Air Filter With Aluminum Frame 7

    part.3
     Aluminum Frame or Galvanized frame depend on your request.
    Glass Fibre Bag Ashare Air Filter With Aluminum Frame 8



    / package


    Glass Fibre Bag Ashare Air Filter With Aluminum Frame 9
    Glass Fibre Bag Ashare Air Filter With Aluminum Frame 10
    Glass Fibre Bag Ashare Air Filter With Aluminum Frame 11
