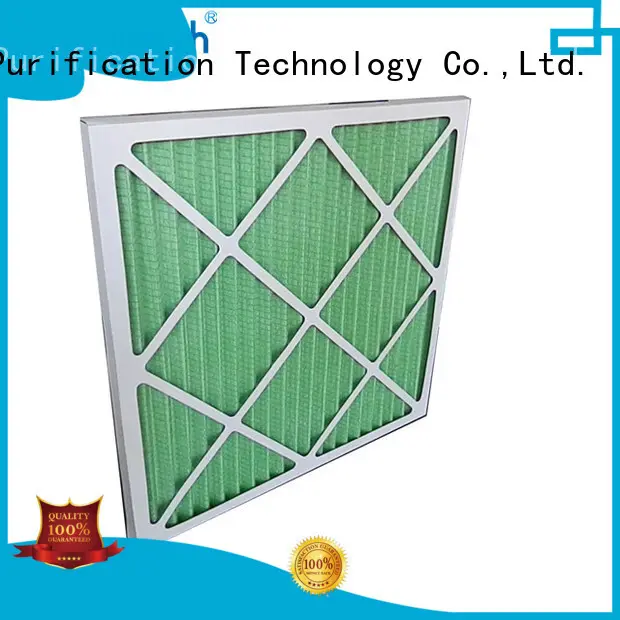

professional Pleated Air Filter with cardboard frame for clean return air system

Company Advantages
1. HAOAIRTECH pleated furnace filters complies with the safety standard. Tests carried out on raw yarn, finished textiles, garments, and accessories ensure the safety of the finished product. It acts as an indispensable part in a dustfree production line
2. Guangzhou HaoAir Purification Technology Co.,Ltd. has stable production bases and manufacture center for our Pleated Air Filter . A sample of the product can be offered for the confirmation of quality
3. Our quality controllers are responsible for continuous small changes to keep production within the specified parameters and to ensure product quality. The product focuses on the good physical conditions of the workers in the workshop
4. Certified quality: It has passed through many quality certifications and has been manufactured in strict accordance with the requirements of international quality standards. Its quality is completely guaranteed. The product is of high purification rank



Introduce:

     Pleatted prefilter  is suitable for primary filtration of air conditioning system. and Medium efficiency air filtration.  It is mainly used to filter dust particles above 5  or 10 micron. Outer frame materials include cardboard frame, Aluminium frame and galvanized iron frame.

   Filter materials include non-woven fabric, nylon mesh, activated carbon filter material, metal mesh, Protective mesh includes double-sided plastic-sprayed wire mesh and double-sided galvanized wire mesh.

Media	Non-Woven fabric and synthetic fiber
Frame	Cardboard frame
Gasket	Neoprene / EVA or PU
Frame size	24/48/96mm
Screen	Metal  screen in one side or both side
Efficiency	G1-G4 ,F5-F8
Max Temperature	80℃
Max Humidity	100%

Dimension	Rate air flow	Media area	Dust Holding(g)	Initial Resistance (pa)	Finally Resistance (pa)	Efficiency
592x592x46	2600	0.97	110	<25	100-200	G1
			130	<30	100-200	G2
			160	<40	100-200	G3
			200	<45	150-200	G4
592x490x46	2200	0.81	98	<25	100-200	G1
			110	<30	100-200	G2
			130	<40	100-200	G3
			160	<45	150-200	G4
592x287x46	1300	0.48	50	<25	100-200	G1
			60	<30	100-200	G2
			80	<40	100-200	G3
			100	<45	150-200	G4

Customer size is available

mainly used for: central air conditioning and centralized ventilation system pre-filtration, large- scale air compressor pre-filtration, clean return air system, pre-filtration of local high efficiency filter device.

Company Features
1. Pleated Air Filter enjoys good quality performance and has won the favor of customers.
2. Whenever we are needed, Guangzhou HaoAir Purification Technology Co.,Ltd. will provide timely response to help solve problems form our customers. Check it!
