We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.
professional laminar hood clean benches for biology horizontal
- HaoAir always put customers first and provides them with sincere and quality services.
1. HAOAIRTECH laminar hood is carefully designed. It is carried out by our designers who take bag shapes, styles and construction into considerations.
2. The product features frost resistance. Since it can resist freezing or thawing, it won't lose its strength in freezing and become brittle.
3. Samples of laminar flow cabinet can be provided for our customers' checking and confirmation before mass production.
LCD control board with air speed control in three level at least
Negative Pressure Laminar Flow
GMP Modular design with minimized joints and seams.
2 different filters configuration available utilizing combination G1, H14 and PLF Screens .
Gel sealant HEPA Air Filter(99.995%@0.3um) for high purification rank
DOP/PAO Test port for your make the air filter efficiency test
Purification rank: Class100 /ISO5
Air speed: 0.45m/s+_20%10% Exhaust air leaking (Adjustable)
Introduction

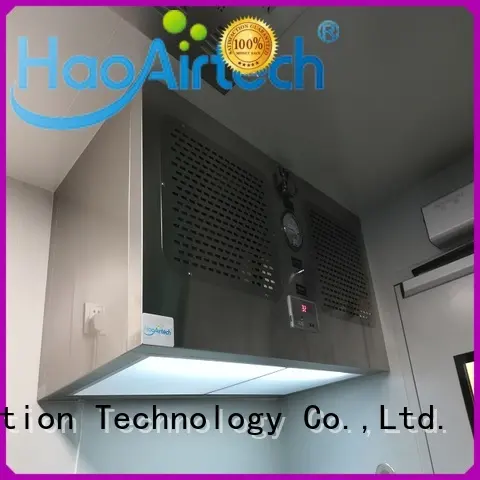

Laminar air flow hood provide operator, process and product protection by utilizing HEPA filtered unidirectional laminar air flow booth to maintain an ISO5 environment at rest within the work zone and capture particulates during open handling processes .
MODEL | HA-DB1000 | HA-DB1500 | HA-DB2000 |
External size (mm) | 1200x1500x2400mm | 1500x1700x2400mm | 2000x1800x2400mm |
Work zone (mm) | 1100x1200x2000mm | 1400x1200x2000mm | 1900x1300x2000mm |
Purification rank | Class 100(ISO5) | ||
Air speed | 0.45m/s +_20% | ||
Material（Option） | 1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) | ||
Control system | 1: LCD touchable screen display with air speed adjustable and constant temperature and constant humidity data check. | ||
Noise level(dB) | <65dB | ||
Filter step | 3 Step | ||
HEPA filter | 99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter | ||
Secondary filter | F8 pocket air filter | ||
Pre-filter Efficiency | G4 Z-Line panel air filter | ||
Power supply | 380V/50HZ OR 220V/50HZ | ||
Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
Application
Weighting booth is designed such that through the different configurations it can be applied but not limited to the follow field : food ,electronic, robotic, nutraceutical, animal , cosmetic , biological , and pharmaceutical .
/ Certificated
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
Company Features
1. With abundant R&D and production experience, Guangzhou HaoAir Purification Technology Co.,Ltd. stands out in the field of laminar flow cabinet .
2. HAOAIRTECH has been also specialized in researching and developing clean bench with exquisite quality.
3. Guangzhou HaoAir Purification Technology Co.,Ltd. wants industrious and creative people to grow with us. Inquire online! Putting integrity first plays an important role in the development of Guangzhou HaoAir Purification Technology Co.,Ltd.. Inquire online!
