We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.
primary Z-line air filter manufacturer for clean return air system
- HaoAir has a professional customer service team to provide quality and considerate services for customers.
1. The design of HAOAIRTECH merv 8 pleated filter resorts to digital high tech. The foot types, arch types, foot type molding, and matching are collected and analyzed by the high tech.
2. As the central of merv 8 pleated filter, Z-line air filter is both qualified with high performance and high quality.
3. Z-line air filter are recognized for their superiority for merv 8 pleated filter.
4. The pure water treated by this product is crucial in preventing health problems and avoiding the cost of maintaining plumbing systems.
Low cost
Light weight。
Good versatility。
Compact structure。
Double side with metal screen。
EVA gasket prevent air leakage
Introduce:

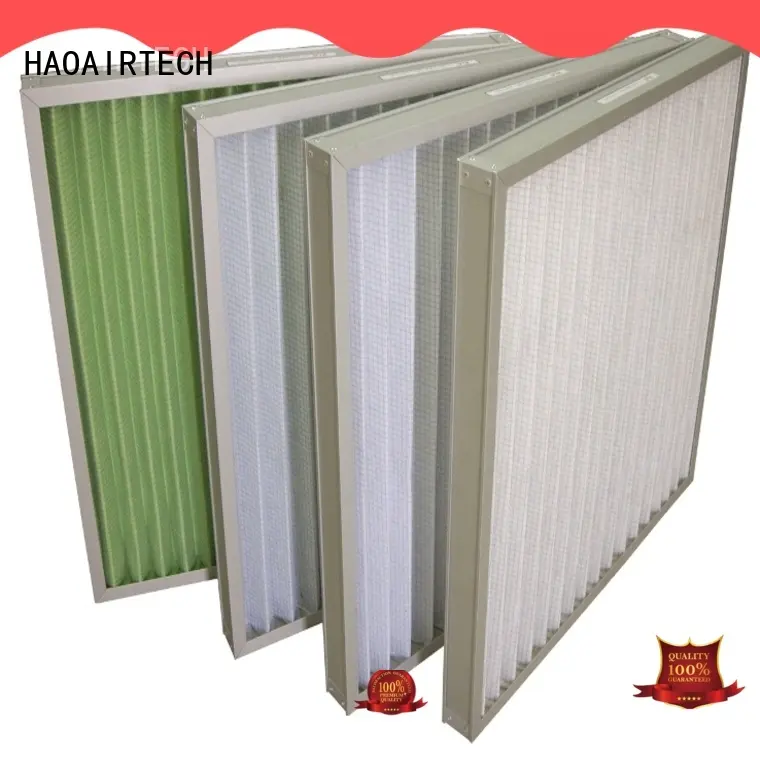

Pleats filter is suitable for primary filtration of air conditioning system. and Medium efficiency air filtration. It is mainly used to filter dust particles above 5 micron. Outer frame materials include cardboard frame, Aluminium frame and galvanized iron frame.
Filter materials include non-woven fabric, nylon mesh, activated carbon filter material, metal mesh, Protective mesh includes double-sided plastic-sprayed wire mesh and double-sided galvanized wire mesh.
Media | Non-Woven fabric and synthetic fiber |
Frame | AL/GL/SUS201/304 frame |
Gasket | Neoprene / EVA or PU |
Frame size | 24/48/96mm |
Screen | Metal screen in one side or both side |
Efficiency | G1-G4 ,F5-F8 |
Max Temperature | 80℃ |
Max Humidity | 100% |
Dimension | Rate air flow | Media area | Dust Holding(g) | Initial Resistance (pa) | Finally Resistance (pa) | Efficiency |
592x592x46 | 2600 | 0.97 | 110 | <25 | 100-200 | G1 |
130 | <30 | 100-200 | G2 | |||
160 | <40 | 100-200 | G3 | |||
200 | <45 | 150-200 | G4 | |||
592x490x46 | 2200 | 0.81 | 98 | <25 | 100-200 | G1 |
110 | <30 | 100-200 | G2 | |||
130 | <40 | 100-200 | G3 | |||
160 | <45 | 150-200 | G4 | |||
592x287x46 | 1300 | 0.48 | 50 | <25 | 100-200 | G1 |
60 | <30 | 100-200 | G2 | |||
80 | <40 | 100-200 | G3 | |||
100 | <45 | 150-200 | G4 |
Customer size is available
Application:
mainly used for: central air conditioning and centralized ventilation system pre-filtration, large- scale air compressor pre-filtration, clean return air system, pre-filtration of local high efficiency filter device.
Our Service
1: 100% scann air leaking test for each Mini-PleatsHEPA air flter, test report accompany all of HEPA air filter.
2: 2 pcs in one carton .each air filter warp by PE Bag .
3: Small order is polywood packing so that we can send out by sea in LCL.
4: If order amount more than 20000USD, We accept the 100% LC at sight against with
document.
5: Free sample possible for you confirmation of quality .
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is a star in Z-line air filter industry.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. strictly implements quality assurance standards, processes and controls.
3. We constantly collaborate with our clients to ensure that our endeavors are strategically implemented to achieve economically sustainable development. For a long time, many of our products have been at the top of the sales charts and have impacted many overseas customers. They started to seek cooperations with us, trusting us can provide the most appropriate product solutions for them. Ask online! We have built our manufacturing sustainability strategy. We are reducing the greenhouse gas emissions, waste and water impacts of our manufacturing operations as our business grows.
