We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

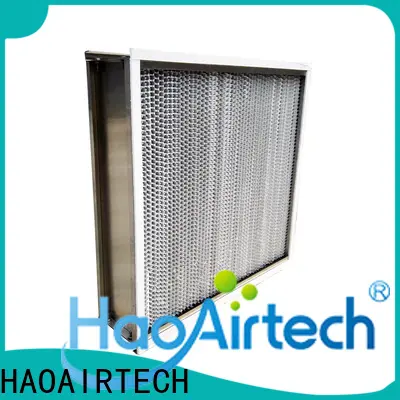

prefilter high temperature air filter supplier for filtration pharmaceutical factory
Brand:
HAOAIRTECH
Model number:
HA-HEPA-HT Series
OEM /ODM:
Yes
Certificated:
Rosh
Start port:
Guangzhou
Delivery time:
8 working days after we get the deposit.
MOQ:
10sets
Country of Original:
China
Supply ability:
set/one month
Payment term:
T/T , L/C , Western union
Application:
Worker in Clean room
Characteristics
Working in the rat air flow the efficiency can reach 99.99%@0.3um
Glass fibre with foil clapboard endure the high air volume in lower resistance at 0.3um particle
Especial glass fibre gasket can endure the 350-450℃ high temperature continuous.
The stainless steel304 or 201 frame for your choose.
Black color high temperature glue prevent the air leaking in operation.
Adopting the laser to scan the filter one by one ( MPPS).
100 % provide the air leaking test report for each high temperature HEPA air filter
Filtration Efficiency: H12,H13,(EN1822). 99.5%-99.99%@0.3um
Applied to the special high temperature paint room or oven room
Glass fibre with foil clapboard endure the high air volume in lower resistance at 0.3um particle
Especial glass fibre gasket can endure the 350-450℃ high temperature continuous.
The stainless steel304 or 201 frame for your choose.
Black color high temperature glue prevent the air leaking in operation.
Adopting the laser to scan the filter one by one ( MPPS).
100 % provide the air leaking test report for each high temperature HEPA air filter
Filtration Efficiency: H12,H13,(EN1822). 99.5%-99.99%@0.3um
Applied to the special high temperature paint room or oven room
/ Products Parameter
Dimension(mm) | Rate Air Flow | Media Area | Dust Holding | Rate primar Resistance | Finally Resistance |
484X484X120 | 450 | 4.4 | 230 |
H12<200Pa |
400-600pa |
610X610X120 | 700 | 7.1 | 370 | ||
610X915X120 | 1050 | 10.6 | 560 | ||
610X1220X120 | 1400 | 14.1 | 740 | ||
484X484X150 | 600 | 6.0 | 320 | ||
610X610X150 | 1000 | 9.7 | 510 | ||
610X915X150 | 1500 | 14.5 | 770 | ||
610X1220X150 | 2000 | 19.3 | 1020 | ||
484X484X220 | 1000 | 9.8 | 600 | ||
610X610X220 | 1600 | 15.8 | 920 | ||
610X915X220 | 2300 | 23.7 | 1340 | ||
610X1220X220 | 3000 | 31.6 | 1750 |
/ Product Details
part.1
Aluminum foil clapboard
part.2
High Temperature Glass Fibre Gasket
part.3
Black Color High Temperature Glue
part.4
Air Filter Dust Detection Test
Application
High temperature HEPA air filter suitable for filtration pharmaceutical factory, high temperature sterilizing tunnel or high temperature drying room produced tar, soot, dust and other particles.
