We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

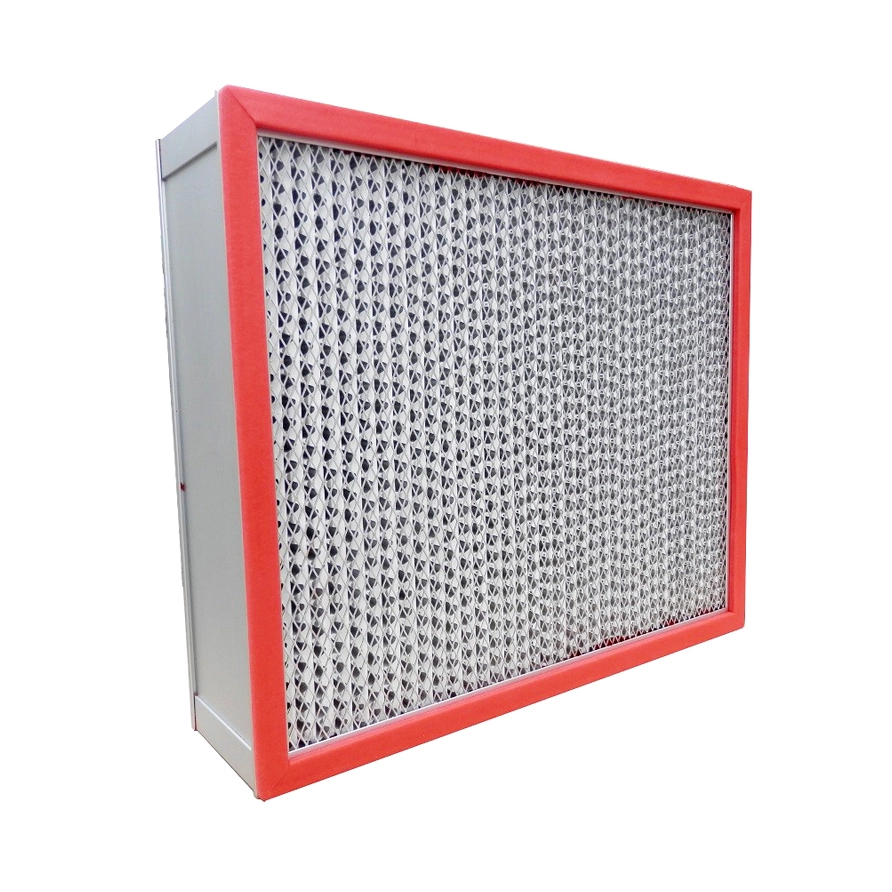

250℃ High Temperature HEPA Air Filter With Alu Frame 1
250℃ High Temperature HEPA Air Filter With Alu Frame 1

250℃ High Temperature HEPA Air Filter With Alu Frame

    oops...!

    no product data.

    Go to homepage



    Characteristics
    Glass fibre with foil clapboard endure the high air volume in lower resistance at 0.3um particle
    Especial high Temperature gasket can endure the 250℃ temperature continuous.
    The aluminum or stainless steel frame for your choose.
    High temperature glue prevent the air leaking in operation.
    Adopting the laser to scan the filter one by one ( MPPS).
    100 % provide the test report for each high temperature HEPA air filter
    Filtration Efficiency: H13,H14,(EN1822). 99.5%-99.995%@0.3um
    Applied to the special high temperature paint room or oven room
    250℃ High Temperature HEPA Air Filter With Alu Frame 2



    / Products Parameter


    Dimension(mm)
    (W*H*D)

    Rate Air Flow
      (m3/h)

    Media Area
    (m2)

    Dust Holding
      (g)

    Rate primary
     Resistance
       (Pa)

    Finally
    Resistance
      (Pa)

    484X484X120

    450

    4.4

    230





    H13 :<200Pa
    H14 :<220Pa







    400-600pa

    610X610X120

    700

    7.1

    370

    610X915X120

    1050

    10.6

    560

    610X1220X120

    1400

    14.1

    740

    484X484X150

    600

    6.0

    320

    610X610X150

    1000

    9.7

    510

    610X915X150

    1500

    14.5

    770

    610X1220X150

    2000

    19.3

    1020

    484X484X220

    1000

    9.8

    600

    610X610X220

    1600

    15.8

    920

    610X915X220

    2300

    23.7

    1340

    610X1220X220

    3000

    31.6

    1750



    / Primary Resistance & Face Velocity Diagram


    250℃ High Temperature HEPA Air Filter With Alu Frame 3



    / Product Details



    part.1
    Aluminum foil clapboard
    250℃ High Temperature HEPA Air Filter With Alu Frame 4

    part.2
    High Temperature Gasket
    250℃ High Temperature HEPA Air Filter With Alu Frame 5

    part.3
    Red Color High Temperature Glue
    250℃ High Temperature HEPA Air Filter With Alu Frame 6

    part.4
    Air Filter Dust Detection Test
    250℃ High Temperature HEPA Air Filter With Alu Frame 7


    Application

    High temperature HEPA air filter suitable for filtration pharmaceutical factory, high temperature sterilizing tunnel or high temperature drying room produced tar, soot, dust and other particles.



    / Our Service


    250℃ High Temperature HEPA Air Filter With Alu Frame 8

    Our Service

    1:  100% scan air leaking test for each HEPA air filter , test report accompany all of HEPA air filter.
    2:  1 pcs in one carton .each air filter warp by PE Bag.
    3:  Small order is plywood packing so that we can send out by sea in LCL.
    4:  If order amount more than 20000USD, We accept the 100% LC at sight against with     document



    / package


    250℃ High Temperature HEPA Air Filter With Alu Frame 9
    250℃ High Temperature HEPA Air Filter With Alu Frame 10
    250℃ High Temperature HEPA Air Filter With Alu Frame 11
