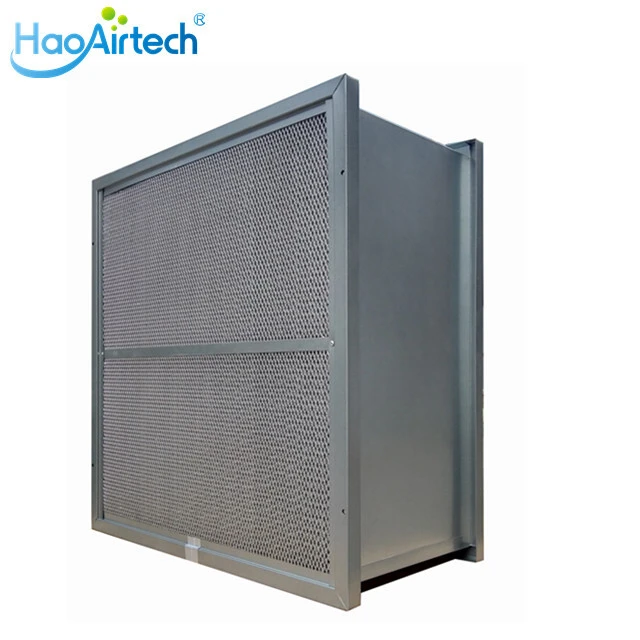

    Deep Pleat High Temperature Filters


           Rigid cell deep pleat High temperature filters can withstand extremely high temperatures,

             making them effective for facilities that routinely experience high heat.

            The filters are composed of special components that resist extreme temperature changes,

             making them optimal for air filtration at high temperatures.

            The aluminum frame is self-extinguishing and is sturdy enough to repel corrosion inhibitors at high temperatures.

           The filter media is made of fiberglass, which operates perfectly at any temperature.



       Deep Pleat High Temperature Filters 2

           Manufactured of specially selected components,

             Haoairtech compact High Temperature filters are ideal for applications requiring high efficiency filtration at high temperatures.

             Haoairtech High Temp filters are designed for high temperature applications up to 700°F.

            Offered in two efficiency ranges, MERV 11 (65%) and MERV 14 (95%) per ASHRAE Standard 52.2.

            The aluminum frame is designed to inhibit the breakdown of corrosion inhibitors at elevated temperatures.

            The sealing material is self-extinguishing.The media consists of micro fiberglass and is designed for operation in high temperature applications

        Deep Pleat High Temperature Filters 3



    Products Parameter



     Dimension

      (mm)

    (W*H*D)



     Rate

    Air

     Flow

     (m3/h)

    Media   Area

       (m2)

    Dust   Holding

       (g)

    Rate   primary

    Resistance

       (Pa)

     Finally

    Resistance

       (Pa)

    Efficiency

    289x594x150

      675

    4.3

    261



    <60



    250-300

    F6

    594x594x150

      1385

    8.84

    354

    287x594x292

    1490

    9.52

    571

    594x594x292

    3085

    19.7

    1185

    289x594x150

      675

    4.3

    261



    <80



    300-400

    F7

    594x594x150

    1385

    8.84

    354

    287x594x292

    1490

    9.52

    571

    594x594x292

    3085

    19.7

    1185

    289x594x150

    675

    4.3

    261



    <100



    300-400

    F8

    594x594x150

    1385

    8.84

    354

    287x594x292

    1490

    9.52

    571

    594x594x292

    3085

    19.7

    1185


     Deep Pleat High Temperature Filters 4
