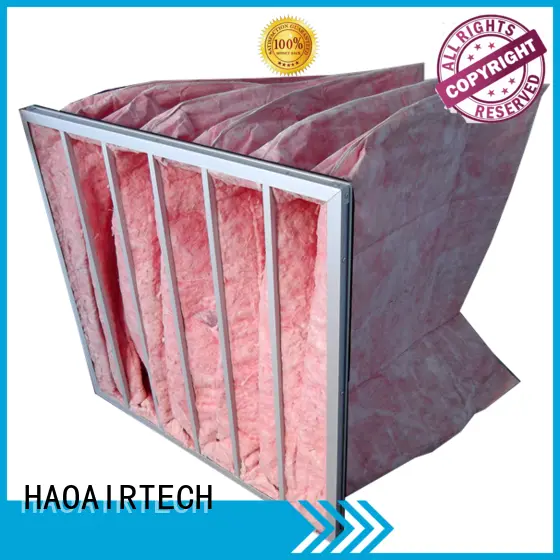

pocket air filter for hospitals HAOAIRTECH

Company Advantages
1. The design and the materials of pocket air filter must be well selected. It has low noise and high mobility
2. The product produces little infrared light and closes to no UV emissions. Because of this, it is highly perfect for users to apply it to UV-sensitive objects. The product will greatly improve the quality of factory-made products
3. The product features a clean appearance. It is coated with a special layer to effectively prevent adhesion of dust or oil smoke when being placed. The product features an energy-saving performance
4. The product can last for a long time. With its full-shield design, it provides a better way to avoid the leakage problem and prevents its components from damage. A sample of the product can be offered for the confirmation of quality
5. The product features an easy operation. It has a relatively simple operating system combining a powerful processing flow and provides simple operation instruction. The product has passed strict air speed test

Bag filter is mainly used in central air conditioning and central air supply system. It can be used in intermediate filtration of air conditioning system to protect the next filter and system itself. In places where the cleanliness requirement for air purification is not strict, the air treated by intermediate filter can be sent directly to users.

 / Application :

 Glass fibre bag air filter is widely used in central air conditioning ventilation system, pharmaceuticals, automotive, hospitals, electronics, food manufacturing industries and other commercial buildings,

and various industrial and ventilation systems have successfully proved that they have upgraded industry standards with their value and performance.

It can also be used as the front-end filter of high efficiency air filter to reduce the load of high efficiency air filter and prolong its service life.

Media	Glass Fibre
Frame	AL/GL/Plastic frame
pocket type	ultrasonic bag or sewing bag
pocket number	3 pocket to 10 pocket
Frame thickness    (mm)	120/150/220
Frame thickness	21mm or 25mm
Efficiency	45%-95%  F5-F8
Max    Temperature	120℃
Max    Humidity	100%



Dimension   (mm) (W*H*D)	Pocket	Rate Air Flow   (m3/h)	Media Area  (m2)	Dust Holding   (g)	Rate primary Resistance    (Pa)	Efficiency
595x595x600	10	3600	7.7	1800	55	F5
	10	3600	7.7	1600	70	F6
	10	3600	7.7	1400	100	F7
	10	3600	7.7	1200	130	F8
595x595x500	10	3050	6.5	1520	55	F5
	10	3050	6.5	1350	70	F6
	10	3050	6.5	1190	100	F7
	10	3050	6.5	1020	130	F8
595x595x381	10	2400	5.1	1190	55	F5
	10	2400	5.1	1060	70	F6
	10	2400	5.1	930	100	F7
	10	2400	5.1	800	130	F8
595x595x600	8	2950	6.3	1480	55	F5
	8	2950	6.3	1310	70	F6
	8	2950	6.3	1150	100	F7
	8	2950	6.3	990	130	F8
595x595x500	8	2500	5.3	1240	55	F5
	8	2500	5.3	1100	70	F6
	8	2500	5.3	970	100	F7
	8	2500	5.3	830	130	F8
595x595x381	8	1900	4.1	960	55	F5
	8	1900	4.1	850	70	F6
	8	1900	4.1	750	100	F7
	8	1900	4.1	640	130	F8

/ Primary Resistance & Air Flow  Diagram
