pleat high temperature filter with large air volume for spraying plant

Company Advantages
1. You can choose to design by yourselves for our high temperature filter .
2. This product has the characteristics of low energy consumption. Optimized circuit layout, less wiring, and reduced energy consumption to a certain extent.
3. This product can be easily transported by ship, truck or rail. It already conforms to standard shipping dimensions before leaving the factory.
4. When wearing this quality product, extreme tightness or looseness which will bring down one's confidence will not be felt.
5. This product is parallel to but different from art. Except for visual aesthetics, it has a pragmatic responsibility to function and serves several intended purposes.

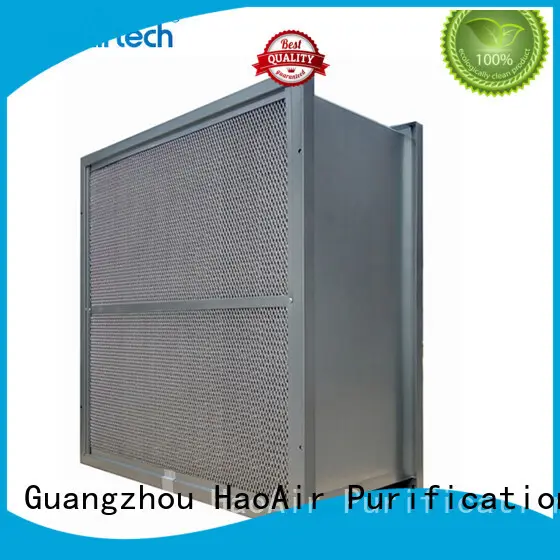

Deep Pleat High Temperature Filters

       Rigid cell deep pleat High temperature filters can withstand extremely high temperatures,

         making them effective for facilities that routinely experience high heat.

        The filters are composed of special components that resist extreme temperature changes,

         making them optimal for air filtration at high temperatures.

        The aluminum frame is self-extinguishing and is sturdy enough to repel corrosion inhibitors at high temperatures.

       The filter media is made of fiberglass, which operates perfectly at any temperature.



       Manufactured of specially selected components,

         Haoairtech compact High Temperature filters are ideal for applications requiring high efficiency filtration at high temperatures.

         Haoairtech High Temp filters are designed for high temperature applications up to 700°F.

        Offered in two efficiency ranges, MERV 11 (65%) and MERV 14 (95%) per ASHRAE Standard 52.2.

        The aluminum frame is designed to inhibit the breakdown of corrosion inhibitors at elevated temperatures.

        The sealing material is self-extinguishing.The media consists of micro fiberglass and is designed for operation in high temperature applications





Products Parameter：



Dimension   (mm) (W*H*D)	Rate Air    Flow  (m3/h)	Media   Area    (m2)	Dust   Holding    (g)	Rate   primary Resistance    (Pa)	Finally Resistance      (Pa)	Efficiency
289x594x150	675	4.3	261	<60	250-300	F6
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185
289x594x150	675	4.3	261	<80	300-400	F7
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185
289x594x150	675	4.3	261	<100	300-400	F8
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185
