We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

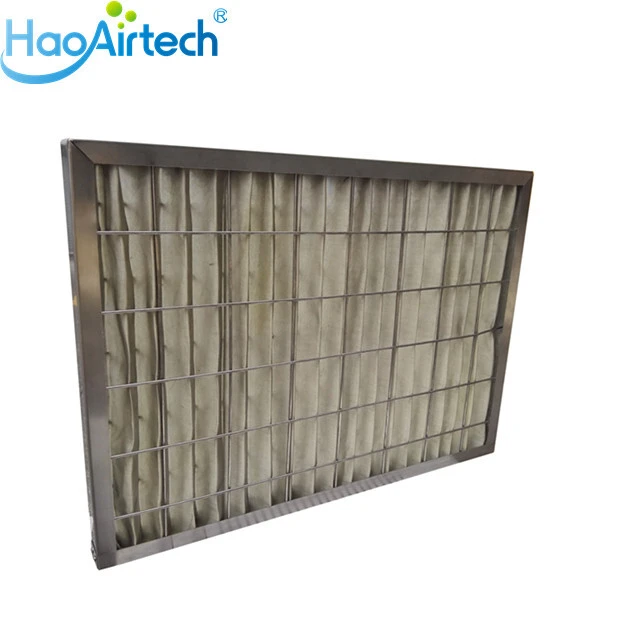

300 Degree High Temperature Pleat Prefilter For Spraying Plant 1
300 Degree High Temperature Pleat Prefilter For Spraying Plant 1

300 Degree High Temperature Pleat Prefilter For Spraying Plant

    oops...!

    no product data.

    Go to homepage



    Characteristics


    1) High Air Volume, Low resistance.

    2) Enduring 300 degree high temperature continuously time.

    3) Two kind of differents screen protect the media .

    4) Firm structure,strong heat resistance

    5)Economical and practical

    6)Efficiency :G3.G4.F5  (EN 779)




    300 Degree High Temperature Pleat Prefilter For Spraying Plant 2



    / Introduce:


                 High temperature resistant primary filter can collect particles, dust and various suspended solids above 5um,

                 with large air volume, lower resistance, high dust capacity, fire resistance,

                  good chemical property and low moisture absorption,

                  and can be used for a long time in 400 degree environment.


    / Products Parameter




    Dimension   (W*H*D)Air Flow (m3/h)Media Area (sqm)Dust   Holiding(g)  Primary Resistance (pa)Finally   Resistance (pa)Efficiency
    595X595X4632001.2310430100-200G2
    11740100-200G3
    22245150-250G4
    595x495x4626001.028730100-200G2
    9740100-200G3
    18445150-250G4




    / Application :


     It is generally suitable for prefiltration ( primary filtration), air filtration in hot air high temperature oven and air filtration in coating plant high temperature oven.



    / Product Details



    part.1

       Stainless steel 304 frame (T=1.2mm) or Aluminum profile can enduring the high temperature for long time.

    300 Degree High Temperature Pleat Prefilter For Spraying Plant 3

    part.2
    The metal grid guard in both side for protect the z line pleats in reglular .
    300 Degree High Temperature Pleat Prefilter For Spraying Plant 4

    part.3
    the media no fibre breakage or loss situation
    300 Degree High Temperature Pleat Prefilter For Spraying Plant 5

    part.4
    The ultrafine glass fibre media both side with mesh screen protect for endure high temperature .


    300 Degree High Temperature Pleat Prefilter For Spraying Plant 6


    / Our Service


    300 Degree High Temperature Pleat Prefilter For Spraying Plant 7

    Our Service

    1:  100% scann air leaking test for each  air flter, test report accompany all of  HEPA air filter.
    2:  2 pcs in one carton .each air filter warp by PE Bag .
    3:  Small order is polywood packing so that we can send out by sea in LCL.
    4:  If order amount more than 20000USD, We accept the 100% LC at sight against with   document.
    5:  Free sample possible for you confirmation of quality .



    / package


    300 Degree High Temperature Pleat Prefilter For Spraying Plant 8
    300 Degree High Temperature Pleat Prefilter For Spraying Plant 9
    300 Degree High Temperature Pleat Prefilter For Spraying Plant 10
